GRP Handrail

Application

Suitable for use in light, medium and heavy-duty applications, including:

  • Stairs.
  • Walkways.
  • Ramps.
  • Safety barriers.

Description

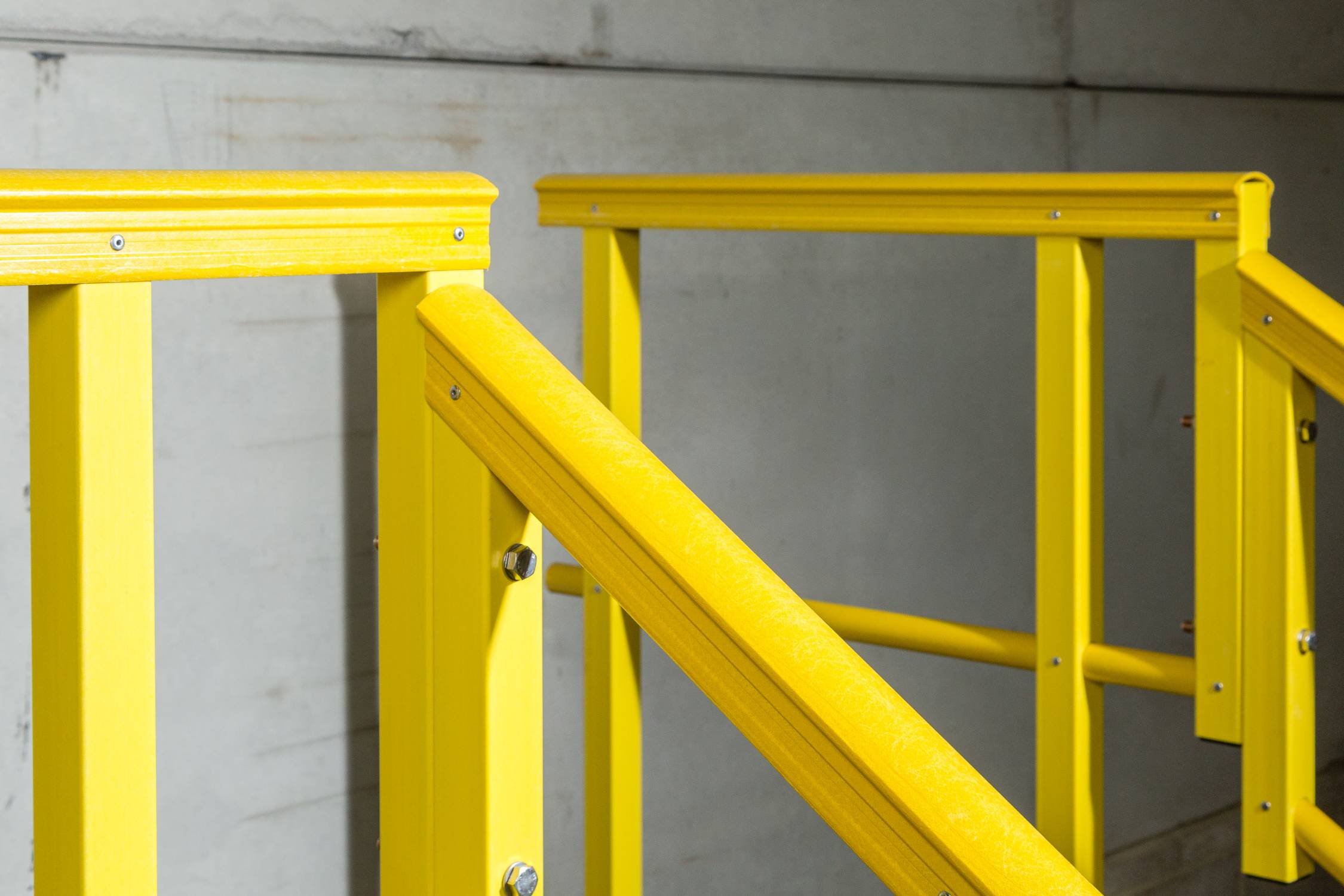

Resin pultruded glass reinforced polyester (GRP) handrail.

Features and benefits:

  • Lightweight - up to 75% lighter than steel.
  • Low maintenance.
  • Fabricated from Isophthalic Polyester, which is high strength, non-conductive, corrosion resistant and warm to the touch (therefore suitable for harsh environments).
  • Easy to install.
  • Can be fitted at various angles and supplied in different section sizes to meet specific project requirements.

Applications:

Suitable for use in light, medium and heavy-duty applications, including:

  • Stairs.
  • Walkways.
  • Ramps.
  • Safety barriers.

General information

Size

Consult manufacturer and insert requirements.

Finish

Ungritted/Gritted

Material

Pultruded GRP

Shape

Cuboidal

Uniclass 2015

Ss_25_60_05_35 Handrail systemsPrimary

CAWS

L30/560 Proprietary balustrades

L30/580 Proprietary handrails

L30/70 Proprietary handrails

Q41/135 Proprietary protective barriers

Q41/240 Handrail systems

Specification data - Handrail systems

Product Reference

GRP Handrail

Type

Light duty

51 x 51 mm box section posts and 38.1 mm tube rails (top and bottom).

Medium duty

51 x 51 mm box section posts, 51 x 51 mm box section top rail and 38.1 mm tube bottom rail.

Heavy duty, 51 x 51 mm

51 x 51 mm box section posts, and 51 x 51 mm box section top and bottom rail.

Heavy duty, 76 x 76 mm

76 x 76 mm box section posts, and 76 x 76 mm box section top and bottom rail.

Size

Consult manufacturer and insert requirements.

Colour

Slate Grey

Yellow

FireRating

Class 1 (to ASTM E84)

Standard. When <25 mm.

Class 1 (to BS 476, Part 7)

On request.

Standard product features

Material:

Glass reinforced polyester (GRP).

Product Options

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library
