Ground Level Vent Box - CGV-018
Verified by manufacturer 4 months ago
External ground level vent box used to provide safe passage of ground gases from beneath a building to the atmosphere. Available with a range of different lid types and finishes..
Application
Designed to provide a method of venting ground gases from beneath a building, to the external atmosphere. The use of vent box is recommended where the use of alternative vent options is precluded due to the type of external wall construction i.e. cladding, glazed façades.
Description

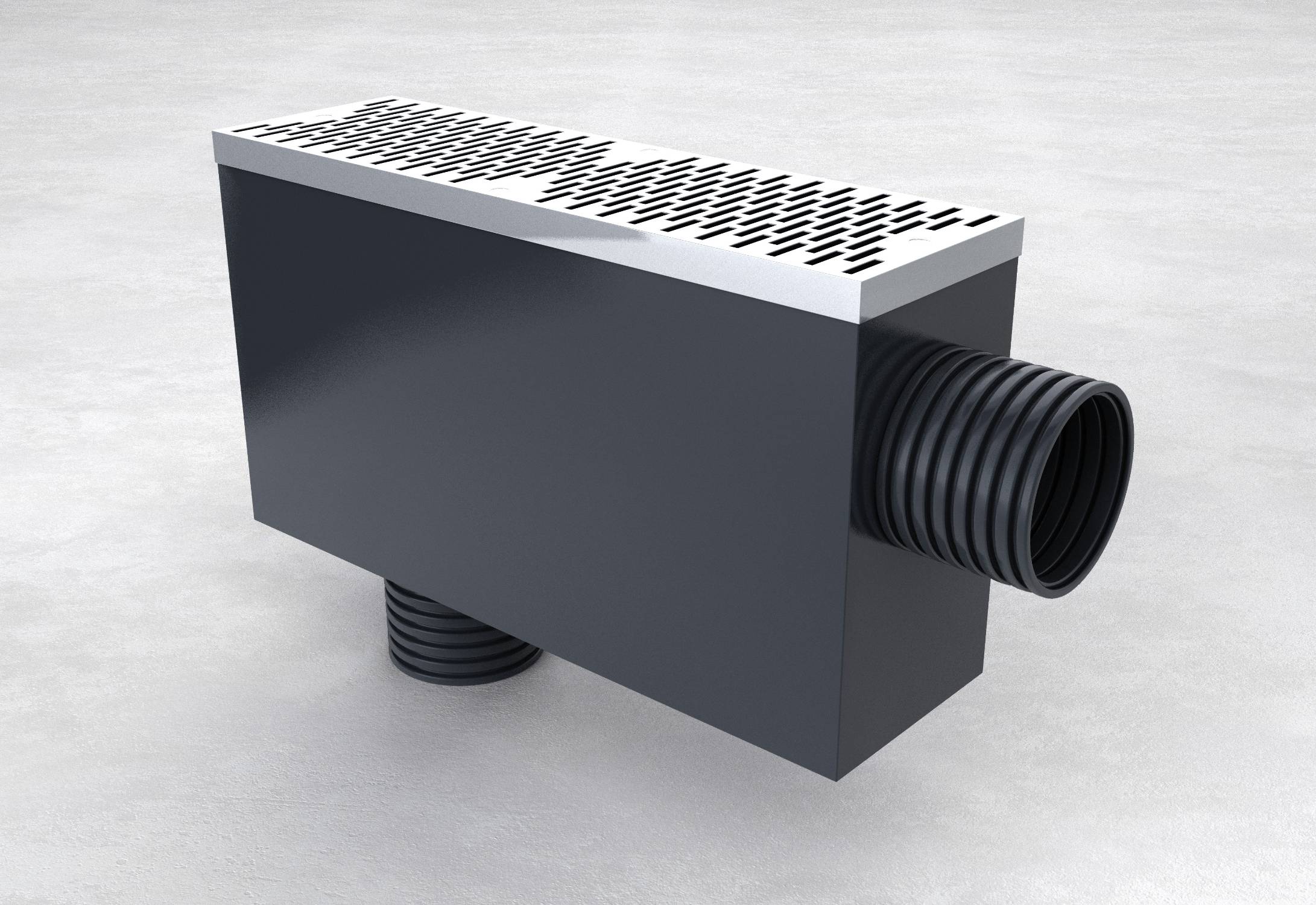

A ground level vent box stainless steel slotted lid designed to be connected to one of the Cordek passive gas venting systems and installed within the external landscaping.
Features and benefits:
- Various different vent box dimensions and geometries.
- Range of lid types, manufactured from either stainless or galvanized steel.
- Vent box lids available with either perforations or slots to suit project requirements and venting design.
- Supported by full range of accessories to provide robust connection to Cordek venting system.
- Side connection into vent box prevents surface water from entering the gas inlet.
- Removable mesh over drain outlet to prevent blockage by debris.
- Include base connection to stormwater collection, land drainage or soakaway system.
General information
Color | Silver |
Material | Stainless steel |
Shape | Rectangle |
Length | 500 mm |
Width | 150 mm |
Height | 275 mm |
Uniclass | |
CAWS | D21/395 Ground-level vent outlets D21/42 Wall vent outlets |
Specification data - Discharge and ventilating stack terminations
Arrangement | Ground level vent box with slotted lid. |
Material | Stainless steel. |
Free airflow | 19,200 mm². |
Open air space | 19,200 mm². |
Accessories: | Not required. CGV-017 ground level vent box. |
Connection sizes | 110 mm. Guidance for specification option: Gas inlet is 110 mm and water outlet is 110 mm. |
Finishes | Stainless steel. |
Colour | Stainless steel. |
Dimensions | 500 x 150 mm. Guidance for specification option: Length x width. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 5 |
Literature

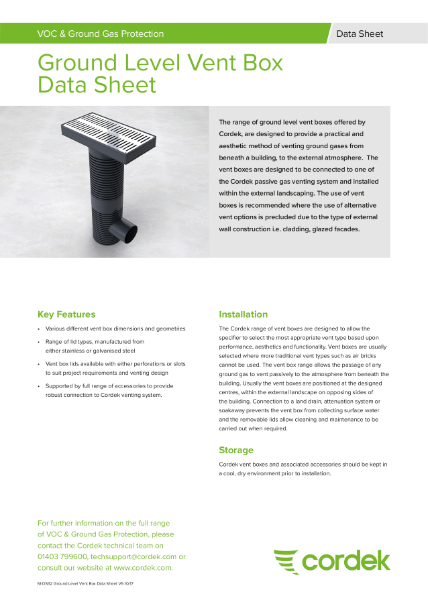

Cordek VOC & Ground Gas Brochure
Cordek Ground Level Vent Box Data Sheet
