Ground bearing floor with screed, mineral wool insulation, in situ concrete slab and particleboard.

Jump to:
+44 (0)345 4569594 theNBS.com

Description

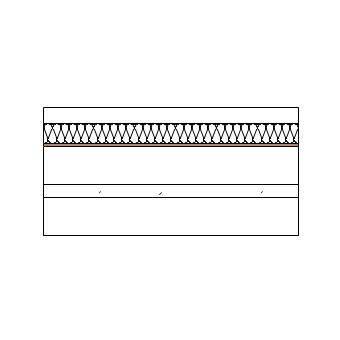

Ground bearing floor construction comprising: 150 mm hard core sub base, 50 mm sand blinding, 2 mm DPM, 12 mm particleboard, 150 mm in situ concrete slab, 75 mm mineral wool insulation and 65 mm cement wearing screed.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2012

1.1

1.1

IFC

IFC2X3

1.0

1.0

Download now from NBS National BIM Library
