Greenwich Tree Grille
Description

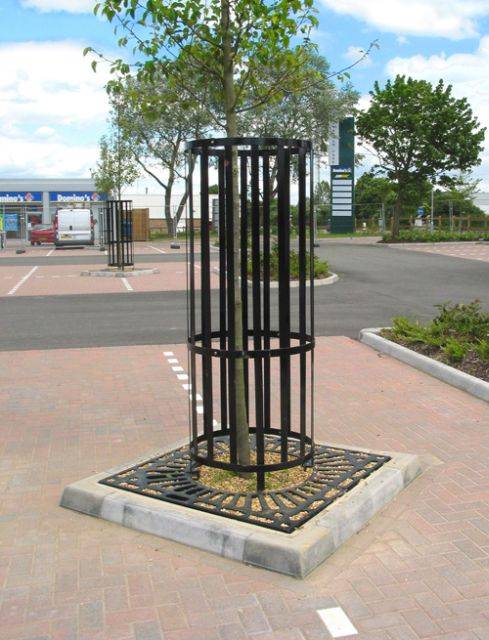

The Greenwich range consists of circular and square shaped tree grilles. The grilles are available in a variety of configurations, consisting of up to four cast iron parts. This tree grille is an attractive and hard-wearing tree protection product, designed on a unique system of overlapping and interlocking components that make it self-supporting.

The Greenwich tree grille can also be supplied with steel frames if required. Standard loading is light-duty, but medium- and heavy-duty frames can be supplied on request.

Cast tabs allow for the grille components to be drilled and fixed together during installation, which provides additional security without the need for special security clamp plates.

General information

Uniclass 2015

Pr_45_63_64_87 Tree grillesPrimary

CAWS

Q50/262 Tree grilles

Q50/30 Street furniture

Specification data - Tree grilles

Product Reference

Greenwich Tree Grille

Type

GC1045

GC1245

GC1270

GS1070

GS1045

GS1245

GS1270

GS1545

GS1570

Material/ Finish

Cast iron, primed finish

Cast iron, polyester powder coated finish

Many BS and RAL colours available, insert requirements.

Frame

-

FrameType

One part

Two part

Loading

Light duty

Medium duty

Heavy duty

Product Options

Size (external x internal):

  • GC1045: 1000 x 450 mm, circular.
  • GC1245: 1200 x 450 mm, circular.
  • GC1270: 1200 x 700 mm, circular.
  • GS1045: 1000 x 450 mm, square.
  • GS1070: 1000 x 700 mm, square.
  • GS1245: 1200 x 450 mm, square.
  • GS1270: 1200 x 700 mm, square.
  • GS1545: 1500 x 450 mm, square.
  • GS1570: 1500 x 700 mm, square.
