GRC Promenade Tiles
Verified by manufacturer 5 months ago
Striated
Striated
ISO 9001 Quality Management
Certificate type
Glass reinforced concrete (GRC) promenade tiles.
Application
Suitable for use on flat roofs, balconies, walkways and terraces.
Description
Promenade tiles manufactured from high strength concrete with glass fibre reinforcement. For bonding to the substrate using polyurethane (PU) adhesive.
Features and benefits:
- Low threshold and lightweight.
- Class A1 fire rated.
- Tested in accordance with EN 1339.
- Provides a high level of slip resistance.
- Can be laid onto a variety of surfaces.
- Durable, with a high strength.
- Available in a range of size configurations.
- Provides protection to waterproofing membranes.
- Available in a range of textured finishes including Striated, Checkerplate, Riven, Imperial, Diamond Cut, Woodgrain, Tactile, and various colour options.
- Designed for use with supports and pedestals, good slip resistance, durability and high strength.
General information
Color | Other Manufacturer guidanceAvailable in a variety of colours. Consult manufacturer and insert requirements. |
Finish | Anti-slip Brushed Natural Textured Smooth |
Material | Concrete |
Shape | Square Rectangle |
Length | 297 mm 294 mm 440 mm 147 mm |
Width | 297 mm 294 mm 147 mm |
Height | 12 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M40/5 Tiling to M40/110 Tiling to |
Product range |
Specification data - Concrete tiles
Colour | Buff.Dark green.Dark grey.Light grey.Marbled grey.Red.TerracottaMarbled terracotta.White. |
Finish | Striated. |
Size | 297 x 297 x 12 mm. |
Thickness | 12 mm. |
Tile material | Glass reinforced concrete (GRC). |
Slip resistance | 52 Wet (Low Potential For Slip). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature

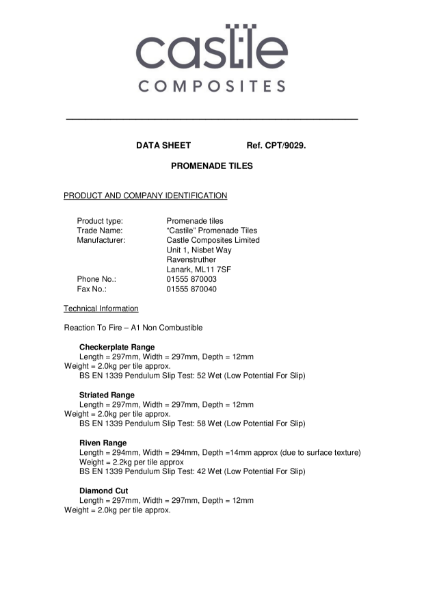

GRC Promenade Tile - Data
GRC Promenade Tile - Install Guide
Product Brochure
Similar products from Castle Composites

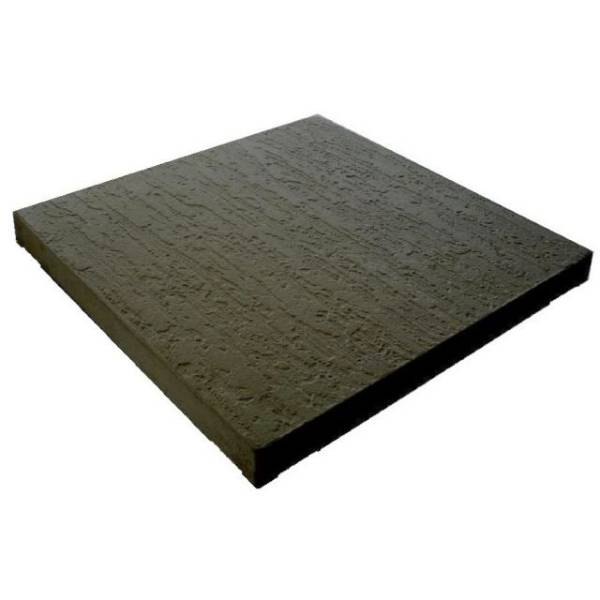

GRC Promenade Slabs
