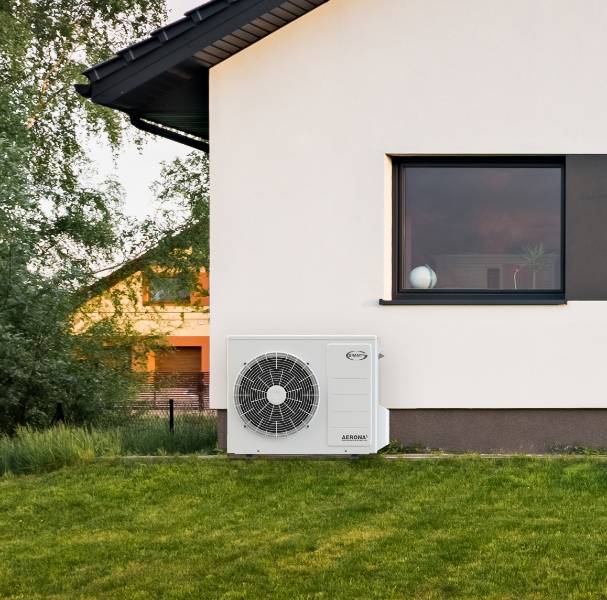

Grant Aerona³ 6kW R32 Inverter Driven Air Source Heat Pump
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
The Grant Aerona³ range of air source heat pumps provide a clean and effective alternative to traditional methods of domestic heating. Four models from 6 kW – 17 kW are available in the range.
Application
Suitable for domestic heating.
Description
Incorporating R32 refrigerant, the four single phase models (6 kW, 10 kW, 13 kW and 17 kW), are clean and more eco-friendly, while also being effective. Each Aerona³ unit operates at high efficiencies even when the external temperatures are low, allowing homeowners to lower their dependency on fossil fuels while also reducing their annual fuel bills. Heat pump models also have minimal impact on their surroundings, being compact in size and quiet in operation.
Features and benefits:
- Single phase with 6 kW output.
- Global Warming Potential of 675.
- DC inverter driven.
- In-built weather compensation.
- In-built frost protection.
- Suitable for use with S & W Plan heating control systems.
- Quiet operation.
- Base tray heating operation.
- Compact footprint.
- Sustainability performance: ErP rating A+++.
General information
Color | Grey |
Finish | Galvanized Painted |
Material | Steel |
Shape | Rectangle |
Length | 379.4 mm |
Width | 898 mm |
Height | 675 mm |
Warranty description | Seven year Guidance for specification option: Up to seven year guarantee. |
Uniclass | |
CAWS | T90/505 Air-to-water heat pumps T90/505 Air-to-water heat pumps |
Specification data - Air-to-water heat pumps
Standards | |
Test requirements | To BS EN 14511, BS EN ISO 3743-1: 2010. |
Heat pump type | Air to water monobloc. |
Mode | Heating. |
Output | |
Heating | 4.62 (SCOP BS EN 14511 air 7°C/ water 35°C). |
Fan | |
Type | Propellor, high efficiency DC fan motor. |
Electrical supply type | Single phase. |
Compressor | |
Drive | Inverter driven. |
Refrigerant | R32. |
Global warming potential (GWP) | 675. |
Dimensions | 379.4 x 675 x 898 mm. |
Material/ Finish | Mild steel, galvanized and painted. |
Weight | Empty: 51 kg, Packed: 52.8 kg. |
InputPower | 1.41 kW. |
Operating temperature range | -20 to +43°C. |
Power supply | 230 V, Single phase, 50 Hz. |
Overall sound power level | 65.2 dB. |
Power output | 6 kW. |
Sustainability data
Country of material origin | China |
Country of product manufacture | Japan |
Material | Steel |
Recyclability | In order for the heat pump to be recycled or disposed of it must be taken to a suitably licensed waste facility. A qualified refrigeration engineer must be used to do this. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
