Grange Senior - Free-standing Canopy

Name: Grange Senior - Free-standing Canopy
Brand: Able Canopies Ltd
SKU: tFoNaKsFyokW2hC4nECywt

Verified by manufacturer 2 months ago

Third party certifications:

Free-standing canopy with polycarbonate roof panels.

Jump to:

BOS

Application

Suitable for education, hospitality, leisure, retail, commercial and healthcare.

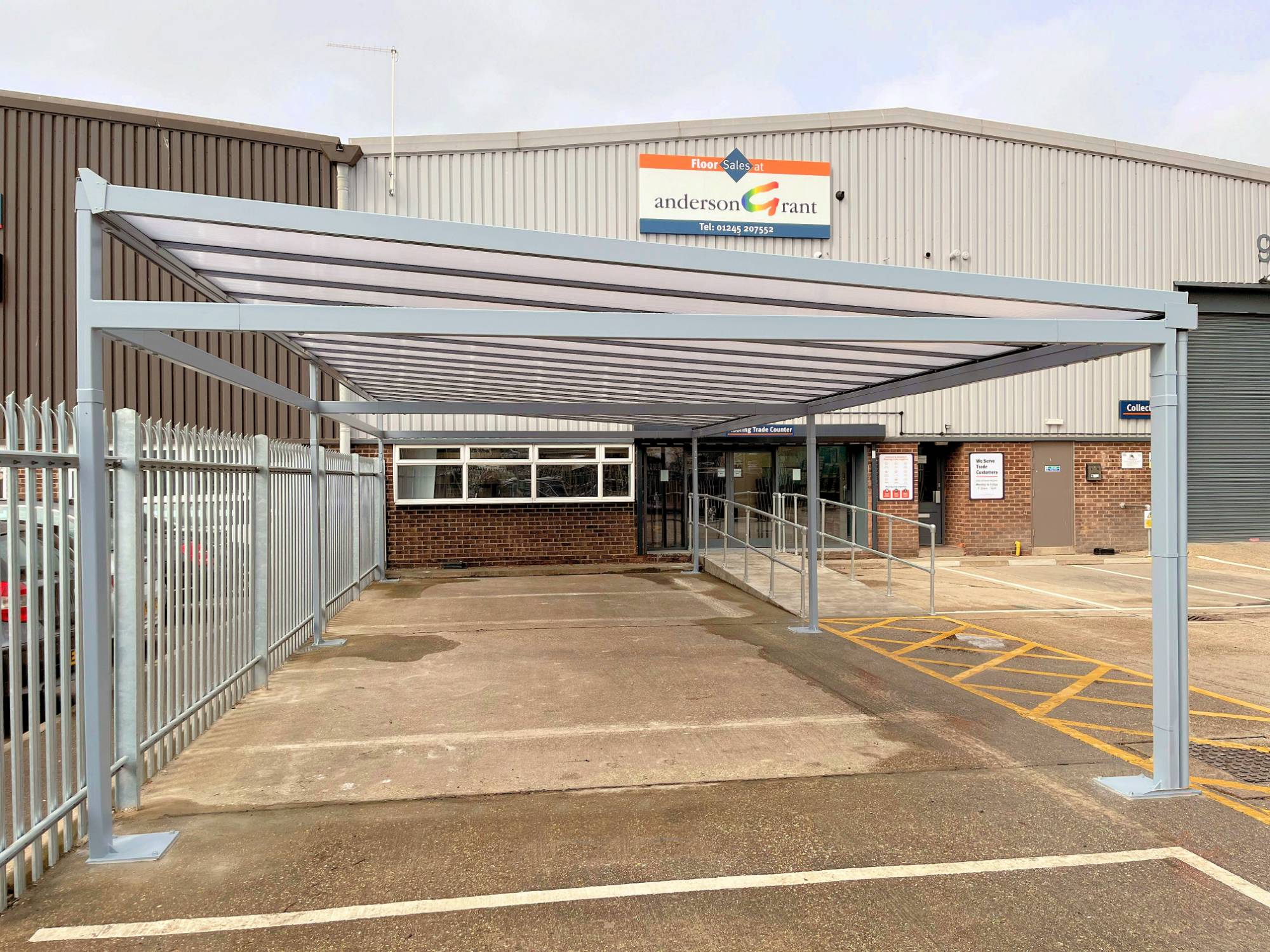

Free-standing, a steel and aluminium frame with structured polycarbonate roof panels.

Features and benefits:

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Galvanized Powder-coated
Material	Aluminium Guidance for specification option: Roof bars. Polycarbonate Guidance for specification option: Roof panel. Steel Guidance for specification option: Frame.
Shape	Square Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_20_65_78_58 Open-sided sheltersPrimary
CAWS	B91/330 Canopy

Description	Free-standing canopy with polycarbonate roof panels.
Manufacturer	Able Canopies Ltd.
Shelter description	Free-standing, mono-pitched.
Dimensions	-
Plan size	- Manufacturer guidance Insert requirement, projection available up to 6 m, length available unlimited, maximum 6 m span between posts.
Height	- Manufacturer guidance Insert requirements.
Fire performance	-
Fire resistance	To BS 476-7, Class 1. Guidance for specification option: Roof panels.
Reaction to fire	To EN 13501 B-s1, D0. Guidance for specification option: Roof panels.
Frame	-
Material	Structural steel. Guidance for specification option: 120 x 60 x 3 mm box section.
Finish	Powder-coated. Guidance for specification option: As standard. Galvanized.
Colour	- Manufacturer guidance Insert RAL colour, consult manufacturer for information.
Roof covering	35 mm structured polycarbonate panels on aluminium frame.
Rainwater drainage	Deep flow guttering with PVC-U downpipes.

Temperature resistance	–20°C to +100°C.
Optional accessories	Post Pads. Signage. Polycarbonate Side and Front Fills. Rainbow Package. Roller Shutters.
Fixings	Grade 316 marine stainless steel fixings.
UV resistance	Over 98%. Guidance for specification option: Yellow discolouration protection.
Roof panels	Clear. Guidance for specification option: LVT, 63%. Opal. Guidance for specification option: LVT, 31%.
Fixing	Install posts into 600 x 600 x 600 mm pad stones into the ground with 300 x 300 x 10 mm base plates.
Third party certification:	To BS EN 1090-1, CE marked.

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: Roof bars. Polycarbonate Guidance for specification option: Roof panel. Steel Guidance for specification option: Frame.
