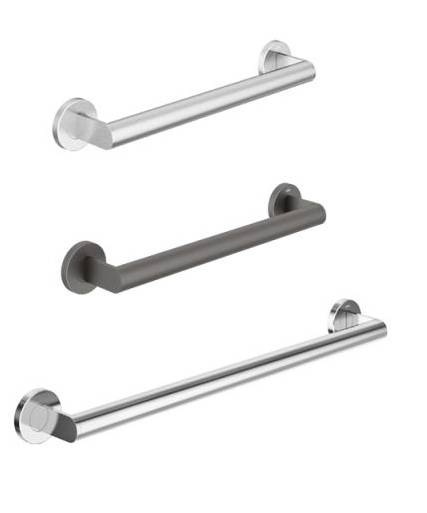

Grab Rails
Description

A range of grab rails.

Features and benefits:

  • Straight rail with supports straight to the wall and roses.
  • Non-corrosive and tested HEWI fixing material included for wall mounting and sealing tape for sealing the drilling points.
  • Suitable for HEWI hook-on seats (consult manufacturer's literature for further details).

General information

Size

Depth: 88 mm

Rail diameter: 32 mm

Tube thickness: 2 mm

Rose diameter: 70 mm

Uniclass 2015

Pr_40_20_76_84 Support railsPrimary

CAWS

N13/436 Handrails and grab bars

Specification data - Support rails

Product Reference

Grab Rail 400 mm Chrome – 900.36.00140

Fixing spacing: 400 mm; overall width: 470 mm.

Grab Rail 400 mm Matt Coated – 900.36.00160

Fixing spacing: 400 mm; overall width: 470 mm.

Grab Rail 500 mm Chrome – 900.36.00240

Fixing spacing: 500 mm; overall width: 570 mm.

Grab Rail 500 mm Matt Coated – 900.36.00260

Fixing spacing: 500 mm; overall width: 570 mm.

Grab Rail 500 mm Satin Stainless Steel – 900.36.002XA

Fixing spacing: 500 mm; overall width: 570 mm.

Grab Rail 600 mm Chrome – 900.36.00340

Fixing spacing: 600 mm; overall width: 670 mm.

Grab Rail 600 mm Matt Coated – 900.36.00360

Fixing spacing: 600 mm; overall width: 670 mm.

Grab Rail 600 mm Satin Stainless Steel – 900.36.003XA

Fixing spacing: 600 mm; overall width: 670 mm.

Matt coating

Not applicable

Chrome/ stainless steel only.

Matt black, DC

Matt coated only.

Matt dark grey pearl mica, SC

Matt coated only.

Matt light grey pearl mica, AY

Matt coated only.

Matt white, DX

Matt coated only.

Standard product features

Size:

  • Depth: 88 mm.
  • Rail diameter: 32 mm.
  • Tube thickness: 2 mm
  • Rose diameter: 70 mm.
