GPDST-1000 Slot Drain Drainage Channel

Verified by manufacturer 4 months ago

Manthorpe Building Products Ltd

Drainage channel for use with block paving and as a threshold drain in front of doorways.

Jump to:
+44 (0)1773 303000 Website

Application

For use with standard 4” underground drain pipe.

Description

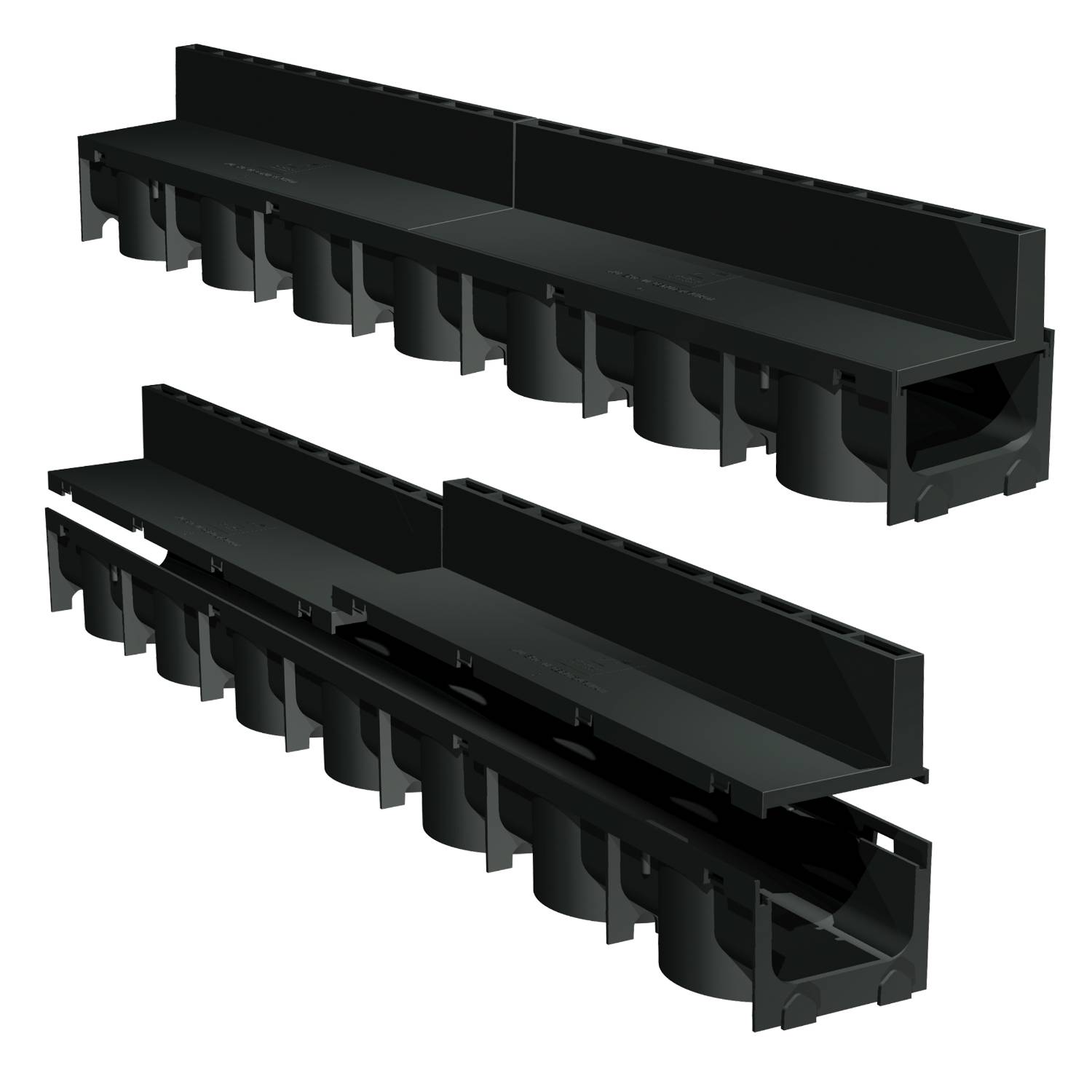

The Manthorpe 1m Slot Drain drainage channel is an easy and effective way of removing unwanted standing water into a domestic drain. The channel and grate have been independently load tested and gained an A15 load rating.

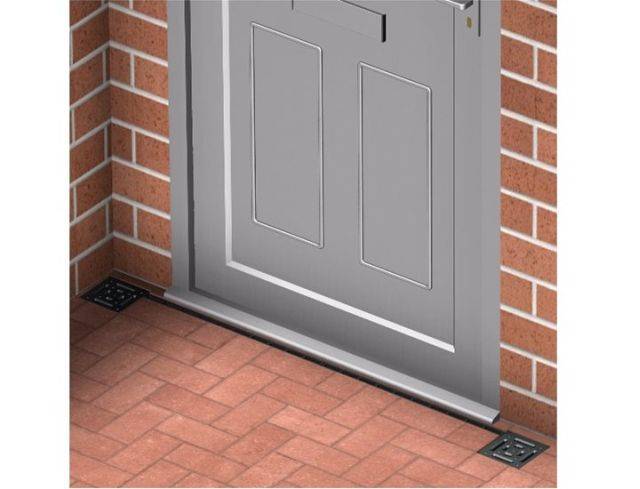

Once installed, the only visible part of the drain is a 20 mm wide slot. It is ideally suited to block paving coverings up to 50 mm depth, but can also be used with surface finishes in areas around the home such as patios and paths, and is especially well suited to Part M building regulation thresholds.


Other components are available to complete the system such as the Slot Drain junction unit and an accessory pack containing a leaf trap and end caps.


Features and benefits:

  • Lengths slot together enabling quick and easy installation.
  • Can be cut down in length with a clip detail repeated at six points along the length.
  • Rainwater exit point with easy cut outlet.

General information

Color

Black

Material

Polypropylene

Shape

Rectangle

Length

1000 mm

Width

120 mm

Height

148 mm

Uniclass

Pr_65_52_24_47 Linear slot drainage channelsPrimary

CAWS

F30/40 Surface-mounted channels/ slots

Specification data - Linear slot drainage channels

Standard

BS EN 1433.

Load class (minimum)

A 15.

Channel unit dimensions

-

Width (nominal)

20 mm.

Overall depth

50 mm.

Integral accessories

None.

Type GPD-EC End Cap.

Type GPD-LT Leaf Trap.

Type GPDST-JU-6 Junction Unit.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom
