Application

For use on patios and paths.

Description

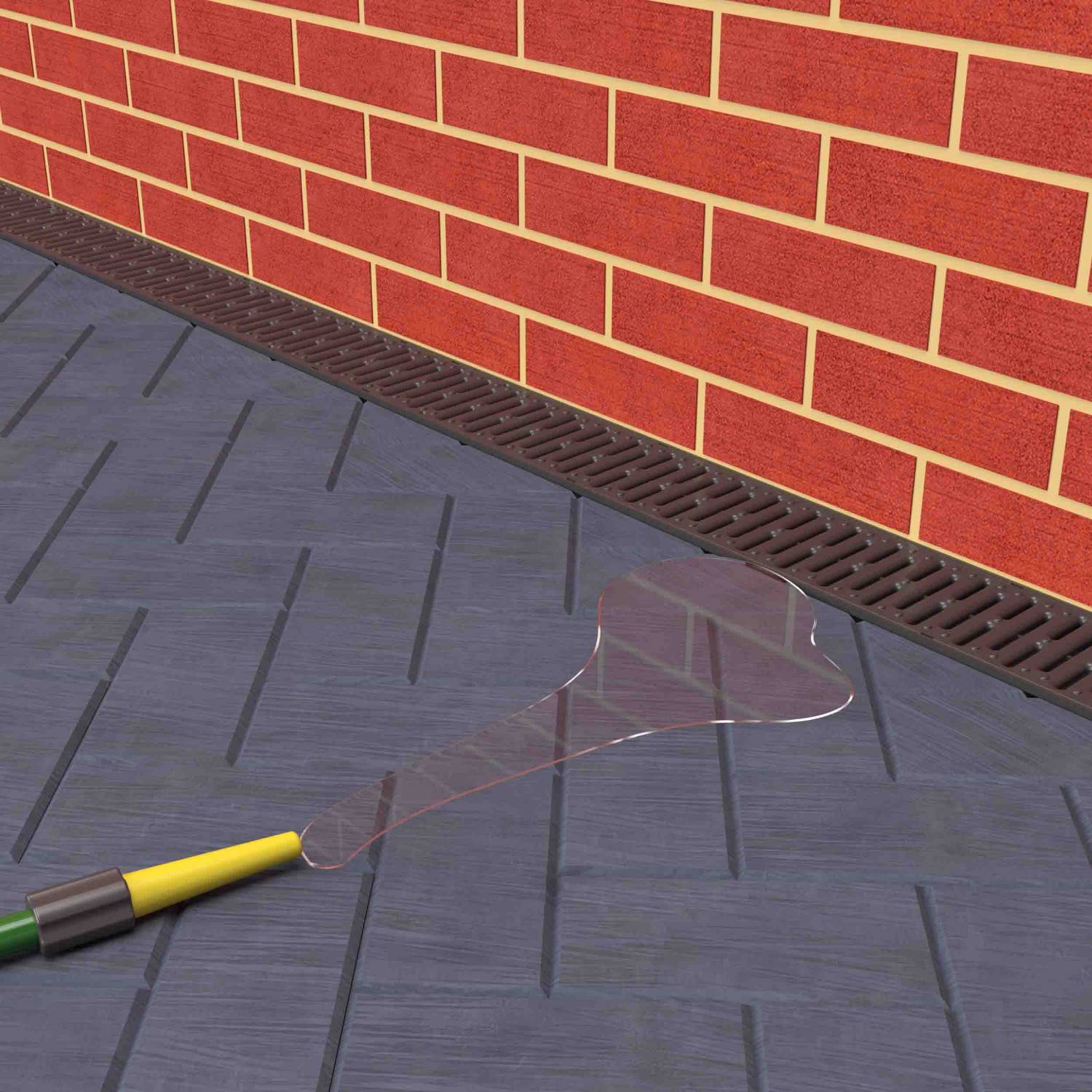

The Manthorpe 1 m linear drainage channel is an easy and effective way of removing unwanted standing water into a domestic drain. The channel and grate have been independently load tested and gained an A15 load rating.


Features and benefits:

  • The system is compatible with all types of block paving, flag stones, tarmac and concrete.
  • Accessories include a leaf trap and end cap.
  • The unit outlets are designed to fit standard 110 mm underground plastic drainage pipes.
  • The clip down grate can be further secured using 3.5 x 30 mm self-tapping screws at the points provided.
  • Multiple rainwater exit points with easy cut-out features.
  • Sections slot together.
  • Channels have re-usable clips at six points along the length.
  • The system is also suitable as a threshold drain.

General information

Color

Black

Material

Polypropylene

Size

1000 x 119 x 88 mm

Guidance for specification option:

(l x w x d)

Uniclass

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/180 Drainage channel systems with gratings

Specification data - Drainage channels with gratings

Material

Injection moulded polypropylene.

Gratings

-

Material

Injection moulded polypropylene.

Form

Slotted.

Colour

Black.

Load class (minimum)

A 15.

Channel unit dimensions

-

Width (nominal)

119 mm.

Depth (nominal)

88 mm.

Length

1000 mm.

Integral accessories

None.

Type GPD-LT.

Guidance for specification option:

Leaf trap.

Type GPD-EC.

Guidance for specification option:

End cap.
