Gosford Monobloc Aquifier Traditional Filter Tap
Application

Kitchen filtered water mixer tap.

Description

The Gosford Aquifier filtered water mixer tap takes on the classic Gosford design attributes but combines this with the added benefit of Abode's unique integrated water filtration technology, allowing the flow of hot, cold and filtered water through the same spout and using just two handles, maintaining its design balance and elegance.


Features and Benefits:

  • Metal construction throughout.
  • Push the cold lever backwards for crystal clear filtered water, easy to change, high quality carbon filter .
  • Supplied compete with installation kit and filter cartridge.
  • Quarter turn handle action for precise flow control.
  • Antisplash spout supplied as standard

General information

Color

Silver

Gosford Monobloc Aquifier - Chrome.

Grey

Gosford Monobloc Aquifier - Brushed Nickel.

Finish

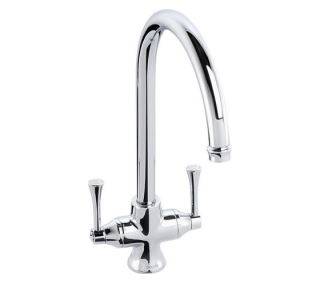

Chrome

Gosford Monobloc Aquifier - Chrome.

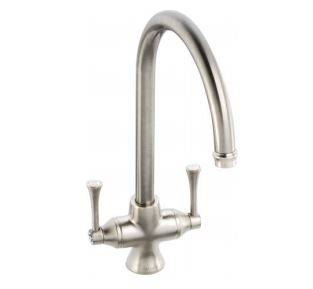

Brushed

Gosford Monobloc Aquifier - Brushed Nickel.

Material

Brass

Size

50 x 390 x 230 mm

Base width x overall height x depth (reach).


Exit height: 245 mm.

Recommended hole diameter: Ø 35 mm.

Max. surface depth: 65 mm.

Spout diameter: 24 mm.

Spout aerator size: 22f.

WarrantyDescription

Five year

Materials and workmanship defects and valves and working parts warranted for five years.

Surface warranty defects and O-rings, hoses & gaskets warranted for one year.

Uniclass 2015

Pr_40_20_87_84 Sink taps

Primary

CAWS

N11/350 Sinks, taps, traps and wastes

Specification data - Sink taps Enhanced data

Approval

Water Regulations Advisory Scheme (WRAS) approved.

Form

Mixer taps.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Gosford Monobloc Aquifier - Chrome.

Brushed Nickel

Gosford Monobloc Aquifier - Brushed nickel.

Flow rate (maximum)

28.80 L/min at 3 bar.

Water supply temperature (maximum)

User controlled.

Integral accessories

17 mm box spanner.

Included.

Product Reference

Gosford Monobloc Aquifier - Chrome

Gosford Monobloc Aquifier - Brushed Nickel

Water pressure

0.30 - 5.5 bar.

Non-return valve

Not required.

ConnectionType

Grub screw.

InletConnectionSize

15 mm Ø.

Tail pipe inlet / outlet size: M12 / 15 mm Ø.

Type/ pipe diameter

Copper rigid tube.

Length

245 mm.

Weight

1.88 kg.

Tap only weight.
