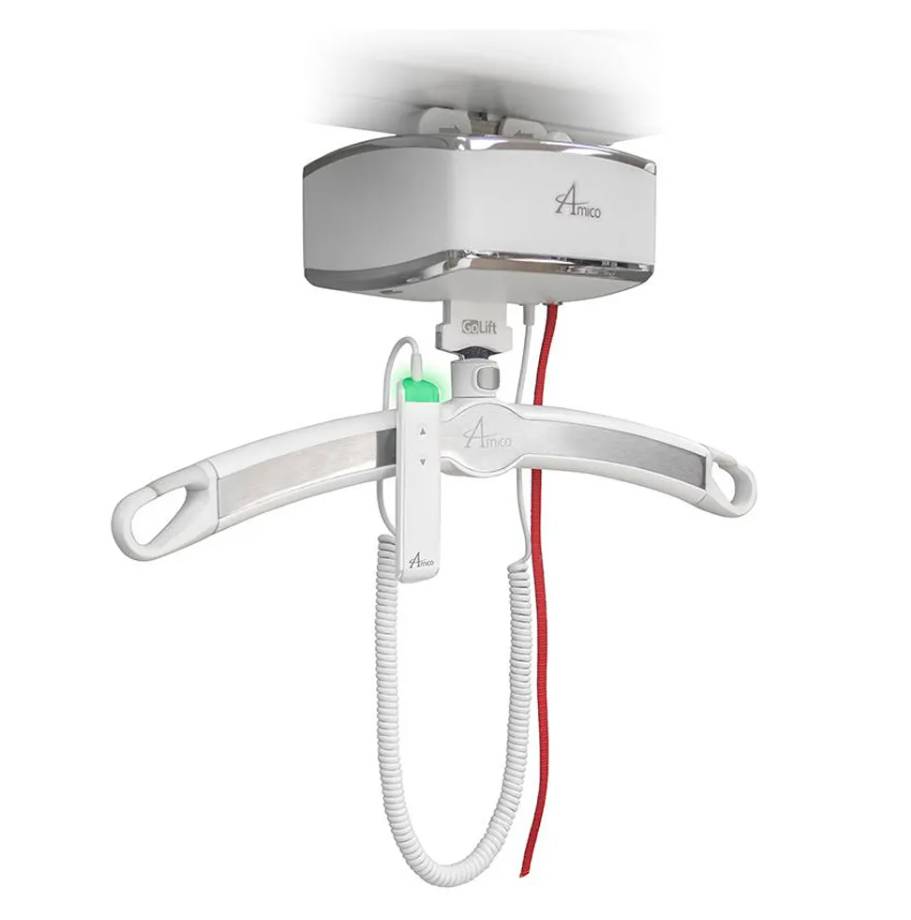

GoLift Ceiling Track Hoist - Compact Discreet Ceiling Hoist
Verified by manufacturer 4 months ago
GoLift 400 single lift
GoLift 400 single lift
Ceiling hoist in a compact, discreet design. State-of-the-art battery technology coupled with all-metal gears allows carers to safely and effortlessly transfer users of varying physical presentation.
Application
Assisted transfer (ceiling track).
Description
Ceiling hoist in a compact, discreet design.
State-of-the-art battery technology coupled with all-metal gears allows carers to safely and effortlessly transfer users of varying physical presentation.
Features and benefits:
- Most compact unit available for discreet installations.
- Multiple track layout options.
- In-rail battery charging.
- Convenient magnetic hand control.
- Choice of sling spreader bars.
- Matt white track blends into ceiling.
- Popular for Changing Places installation.
- Three-year warranty.
- Available in four configurations:
- GoLift 400: 28 st/ 181 kg SWL.
- GoLift 450: 32 st/ 205 kg SWL.
- GoLift 700: 50 st/ 318 kg SWL.
- GoLift 1000 tandem unit: 72 st/ 453 kg SWL.
- Service life: ten years or 22 500 cycles.
General information
Color | White Black |
Finish | Matt |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Three year |
Uniclass | |
CAWS | N13/490 Hoist systems |
Specification data - Assisted transfer hoists
Standards | To ISO 10535-6 CE Approved. |
Form | Ceiling-mounted track hoist.Guidance for specification option: See also Track system and Track profile below. |
Cradle or sling | |
Hoist fittings for slings | Two-point carry bar.Four-point carry bar. |
Supports | |
Material | Carbon steel. |
Finish and colour | Matt, white. |
Safe working load (maximum) | 181 kg/ 28 st. |
Integral accessories | Capacitive touch hand control.Guidance for specification option: Protection class IPX0. |
Electrical power | Mains.Guidance for specification option: 204 V, 3A. |
Weight | 4 kg. |
Batteries | NiMH batteries (2 x 14.4 V, 3.3 Ah) with optional in-rail charging. Guidance for specification option: Standard. Battery charger: 100–240 V a.c., 40 W. Charging time: 2–4 hours. NiMH batteries (2 x 14.4 V, 5 Ah) with optional in-rail charging. Guidance for specification option: Consult manufacturer for details. |
Speed | No load: 50 mm/s. |
Track system | Straight. Curved. Full room coverage (X/Y system). Full room coverage (H system). Recess, flush mount. Guidance for specification option: Optional; consult manufacturer for details. Manufacturer guidanceInsert detail as required e.g. drawing reference or schedule. |
Track profile | Regular. Guidance for specification option: 67 x 60 mm profile, 3.77 kg/m. Available in lengths of 2440, 3050 and 6100 mm. Double. Guidance for specification option: 67 x 90 mm profile, 4.72 kg/m. Available in lengths of 3050, 3800 and 6100 mm. Triple. Guidance for specification option: 67 x 146 mm profile, 5.65 kg/m. Available in lengths of 3050 and 6100 mm. Custom. Guidance for specification option: Custom lengths in any track type available upon request; consult manufacturer and insert requirements. |
Accessories | None. Patient scale. Guidance for specification option: Compact design that helps to measure the user’s weight. It can be easily attached to the GoLift lift tape using the quick release system which allows the spreader bar to be reconnected beneath the scale. Class III - Displays units in kg, 400 kg capacity, 2014/31/EU - CE conformity. MagnAlign transition gate. Guidance for specification option: Fits between an X/Y track system and a straight rail to create seamless movements for the GoLift hoist to pass safely between the two tracks. Using a series of magnets, the MagnAlign gate quickly aligns the tracks with minimal noise and fuss. The safety pins in the gate system prevent the hoist from running out of the open end of the track whilst the tracks are not aligned. Four-point carry bar. Guidance for specification option: Mounting solution with wider support points catering to bariatric users. The bar has a unified design for easy cleaning and infection control measures. Four-hook carry bar. Guidance for specification option: Increases the adjustability of the sling loop connection points, ensuring the user gets the most comfortable lift. |
Sustainability data
Country of product manufacture | Canada |
