Glidevale Protect Versa-Tile G5 - Universal Tile Vent
Verified by manufacturer 5 months ago
Universal tile ventilator and extract terminal solution
Application
Suitable for all roof space ventilation requirements and can also be adapted into an SVP and mechanical extraction terminal by means of a pipe adaptor and flexible pipe.
Description

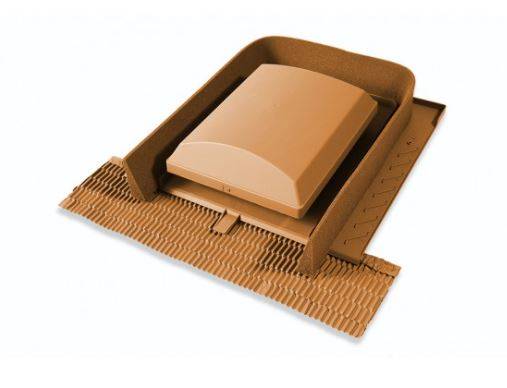

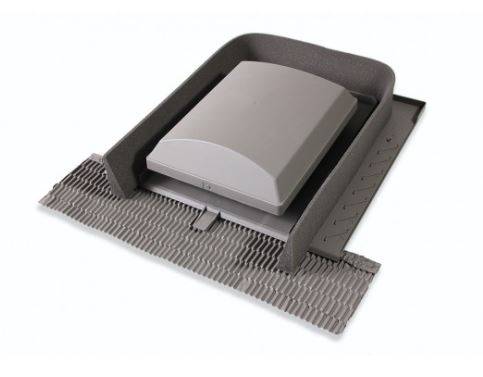

The tried and tested Glidevale Protect Versa-Tile G5 is a universal tile ventilator and terminal solution.
Features and benefits:
- Universal design suits virtually all interlocking single lap tiles. (not incl. Plain tiles, clay single pantiles or interlocking slates)
- Available in 7 UV-stable colours of red, brown, grey, terracotta and red streak, blue/black and black.
- Proven in use for over 15 years.
- Underlay protector retains the integrity of the underlay when cut.
- Incorporating AluFlash on the leading front edge for ultimate weathering and wind uplift security.
- Guaranteed 20,000mm2 ventilation area.
- Low airflow resistance when used as a mechanical extraction terminal.
- Driving and deluge rain resistant demonstrated by test.
- Designed and developed under BS EN ISO 9001.
General information
Color | Red Brown Grey Black |
Finish | Embossed Guidance for specification option: Aluflash. Sanded Manufacturer guidanceAll exposed surfaces are coated with a silica sand entrained in a multi-coat water based environmentally friendly uv-resistant coating. |
Material | Polypropylene Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Width | 330 mm |
Height | 420 mm |
Uniclass | |
CAWS | H67/70 Roof ventilator tiles H65/86 Ventilator tiles H60/86 Ventilator tiles H65/840 Ventilator tiles H60/840 Ventilator tiles |
Specification data - Roof slope terminals
Purpose | Roof Ventilator. |
Ventilation opening | 20 000 mm². |
Profile | Cowled Vent, rectangular. |
Colour | Red.Brown.Grey.Terracotta.Red streak.Blue-black.Guidance for specification option: Blue / black. Black. |
Accessories | Underlay opening protector.GV110 Pipe Adapter.Flexi Pipe.Extension Sleeve. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

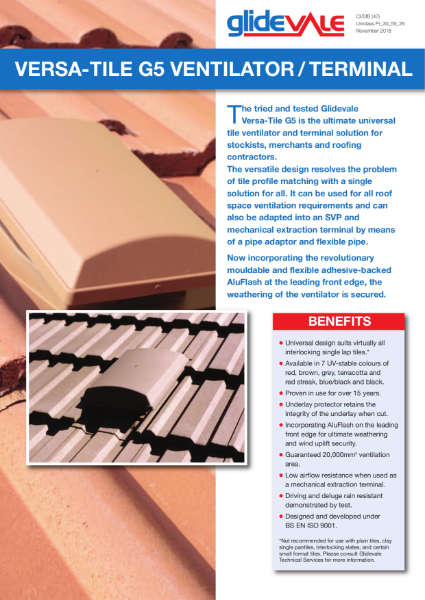

Glidevale Protect Versa-Tile G5 Ventilator
BS 5250:2021 Management of moisture in buildings
