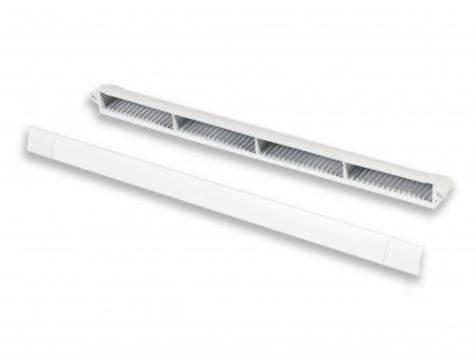

Glidevale Protect TVUV5 Ultra Vent 5000 - Trickle Vent
Verified by manufacturer 5 months ago
Through frame window ventilator for controlled background ventilation
Application
- Suitable for PVCu, aluminium and timber windows. Suitable for a range of slot sizes from 13 mm to 17 mm.
- Must be used with TVUG5 external canopy grille which provides weather protection and insect ingress grille.
Description
Through frame window ventilator, comprising controllable internal ventilator. Controlled flow of fresh air via two stage opening. Can be used to meet background ventilation requirements of Building Regulations. Must be used with TVUG5 external canopy grille which provides weather protection and insect ingress grille.
Features and benefits:
- Can be used to meet background ventilation requirements of Building Regulations throughout the UK and Ireland.
- Small window ventilator, providing up to 5000 mm² equivalent area.
- Slim profile of 10 mm for the vent.
- Incoming air is directed upwards to avoid draughts and discomfort.
- Meets requirements of BS 6375-1 for resistance to water penetration when used with TVUG5.
- Geometric free area of 5400 mm².
- Air permeability: 0.25m3/hr at 50Pa.
- Must be used with TVUG5 external canopy grille which provides weather protection and insect ingress grille.
General information
Color | White Guidance for specification option: Bright White RAL 9016 as standard with alternative colours available upon request. |
Finish | Powder-coated |
Material | Aluminium Polymer |
Length | 405 mm |
Width | 10 mm |
Height | 25 mm |
Uniclass | |
CAWS | L10/400 Composite windows L10/33 Proprietary windows L10/10 Wood windows L10/15 Wood windows L10/390 Proprietary windows L10/310 Steel windows L10/210 Wood windows |
Specification data - Trickle vents
Standard | To BS EN 1027: 2000, BS EN 1026: 2000; BS 6375-1. |
Operation | Manual. |
Equivalent area (minimum) | 5000 mm².Guidance for specification option: Ventilation equivalent area. |
Material | Polyester powder coated aluminium with polymer end caps. |
Colour | White.Guidance for specification option: Bright White RAL 9016 as standard with alternative colours available upon request. |
Air permeability | 0.25 m³/h. Guidance for specification option: Tested to BS EN 1026: 2000 at 50 Pa. |
Watertightness | 1000 Pa. Guidance for specification option: Tested to BS EN 1027: 2000. |
Slot size | 13–17 x 162.5 mm. Guidance for specification option: 2 No. |
Size | 405 x 25 x 10 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Polymer |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Glidevale Protect Trickle Ventilators
