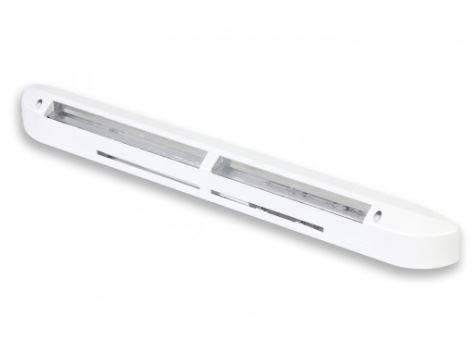

Glidevale Protect TVES4dB Acoustic Energy Saver Humidity Sensitive Trickle Vent - Trickle Vent
Verified by manufacturer 5 months ago
Energy saver, humidity sensitive acoustic trickle vent. Through frame window ventilator for controlled background ventilation.
Application
Designed to allow air to enter the building to provide the stated levels of background ventilation to meet the requirements of Building Regulations, incorporated through the head of the window frame. Designed for use with Ultra Grille (TVUG5) external canopy grille.
Description
Humidity sensitive, acoustic through frame window vent. Provides automatic ventilation and sound insulation for use near noise sources. Automatic function dependent upon humidity levels in the room. Can be used to meet background ventilation requirements of Building Regulations throughout the UK and Republic of Ireland. Minimises unnecessary ingress of cold air. No user input is required and can help to reduce the potential for condensation.
Features and benefits:
- Energy saving, reduces over ventilating.
- Substantial sound reduction, up to 39dB Dn,e,w.
- No user input required to control.
- No mechanical or electrical components.
- Geometric free area of 4000 mm².
- Minimizes unnecessary ingress of cold air.
- It can be used to meet background ventilation requirements of Building Regulations.
General information
Color | White Brown Black Other Guidance for specification option: Colour matched to RAL available. Contact us for pricing. |
Finish | Smooth |
Material | Polystyrene Guidance for specification option: Injection moulded |
Shape | Other |
Length | 420 mm |
Width | 64 mm |
Height | 45 mm |
Uniclass | |
CAWS | L10/33 Proprietary windows L10/15 Wood windows L10/10 Wood windows L10/390 Proprietary windows L10/310 Steel windows L10/210 Wood windows |
Specification data - Trickle vents
Operation | Humidity controlled. |
Equivalent area (minimum) | 3815 mm².Guidance for specification option: Ventilation equivalent area. |
Material | Polystyrene.Guidance for specification option: Injection moulded. |
Colour | White.Brown.Black.Other.Guidance for specification option: Colour matched to RAL available. Contact us for pricing. |
Acoustic attenuation | 39 dB Dn,e,w. |
Slot size | 13 x 162.5 mm. Guidance for specification option: 2 No. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polystyrene Guidance for specification option: Injection moulded |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Glidevale Protect Trickle Ventilators
