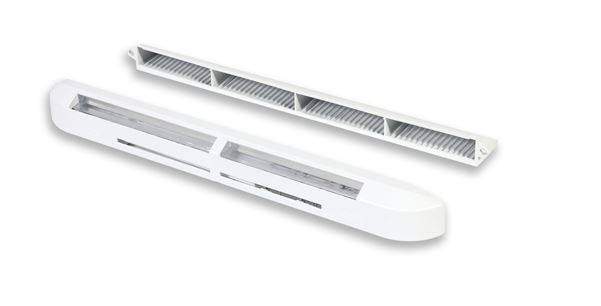

Glidevale Protect TVES4 Energy Saver Humidity Sensitive Trickle Vent - Trickle Vent
Verified by manufacturer 3 months ago
Energy saver, humidity sensitive trickle vent. Through frame window ventilator for controlled background ventilation.
Application
Designed to allow air to enter the building to provide the stated levels of background ventilation to meet the requirements of Building Regulations, incorporated through the head of the window frame. Designed for use with Ultra Grille (TVUG5) external canopy grille.
Description
Through frame window trickle vent with automatic open/close function dependent on humidity levels. Automatic function dependent upon humidity levels in the room. Can be used to meet background ventilation requirements of Building Regulations throughout the UK and Republic of Ireland. Minimizes unnecessary ingress of cold air. No user input is required and can help to reduce the potential for condensation.
Features and benefits:
- Automatic, no user input.
- Uses no electricity or mechanical power.
- Directs airflow upwards avoiding draughts and discomfort.
- Energy-efficient, minimises heat loss.
- Geometric free area 4000 mm².
General information
Color | White Brown Black Other Guidance for specification option: Other RAL colours to order. Contact us for pricing. |
Finish | Smooth |
Material | Polystyrene Guidance for specification option: Injection moulded. |
Shape | Other |
Length | 400 mm |
Width | 30 mm |
Height | 40 mm |
Uniclass | |
CAWS | L10/15 Wood windows L10/10 Wood windows L10/400 Composite windows L10/390 Proprietary windows L10/310 Steel windows L10/210 Wood windows |
Specification data - Trickle vents
Operation | Humidity controlled. |
Equivalent area (minimum) | 3815 mm².Guidance for specification option: Ventilation equivalent area. |
Material | Polystyrene.Guidance for specification option: Injection moulded. |
Colour | White.Brown.Black.Other.Guidance for specification option: Other RAL colours to order. Contact us for pricing. |
AirFlowRate | 7–40 m³/h. Guidance for specification option: At 20Pa. |
Slot size | 13 x 162.5 mm. Guidance for specification option: 2 No. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polystyrene Guidance for specification option: Injection moulded. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
