Glidevale Protect SV609 Soffit Vent - Soffit Ventilator

Verified by manufacturer 4 months ago

BPD Building Product Design Ltd

Soffit ventilator that guarantees actual ventilation opening of 25,000 mm²/m.

Jump to:
+44 (0)161 905 5700 Website

Application

SV Soffit Ventilators are for installation at eaves with a projecting soffit, and must always be used with RV Rafter Ventilators to provide a continuous ventilation path from the roof void to the outside without impairing the weatherproof function of the structure, as required by BS 5250. The SV609 is for soffit boards 6–10 mm thick.

Description

SV609 Soffit Vent Provides guaranteed actual ventilation opening of 25 000 mm²/m.


Features and benefits:

  • Can be used with all common soffit board materials.
  • Can be used to comply with roof space ventilation requirements of Building Regulations Approved Document C2 and BS 5250.
  • Lightweight and durable.
  • Quick and easy to install; no special tools required.
  • Prevent large insect ingress.
  • Independent of rafter spacing.
  • Suitable for new roofs and refurbishment.
  • Colours to match stained or painted soffit boards.

General information

Color

White

Brown

Finish

Smooth

Material

Polyvinyl chloride

Length

2440 mm

Width

75 mm

Height

22 mm

Uniclass

Pr_30_59_94_78 Soffit grillesPrimary

CAWS

G20/900 Eaves soffit ventilators

G20/97 Eaves soffit ventilators

Specification data - Soffit grilles

Style

Continuous strip.

Ventilation opening

25 000 mm²/m.

Colour

White.

Brown.

Length

2.44 m.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

Platform Compatible Version
Revit
-

1

Literature

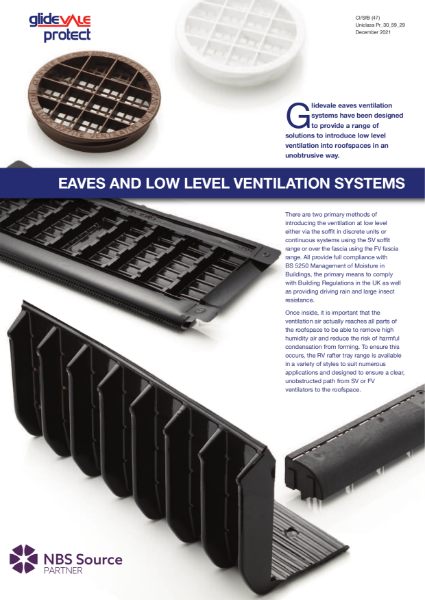

Glidevale Protect Eaves and Low Level Ventilation Systems

Glidevale Protect Eaves and Low Level Ventilation Systems

BS 5250:2021 Management of moisture in buildings

BS 5250:2021 Management of moisture in buildings
