Glidevale Protect Fresh TLF Wall Ventilator - Through Wall Vent

Name: Glidevale Protect Fresh TLF Wall Ventilator - Through Wall Vent
Brand: BPD Building Product Design Ltd
SKU: i3TK5zqHH86DghuA9TxDE

Verified by manufacturer 5 months ago

BPD Building Product Design Ltd

Non-electric through wall vent provides controllable background ventilation.

Jump to:

+44 (0)161 905 5700 Website

Application

Suitable for both new build and refurbishment applications.

Description

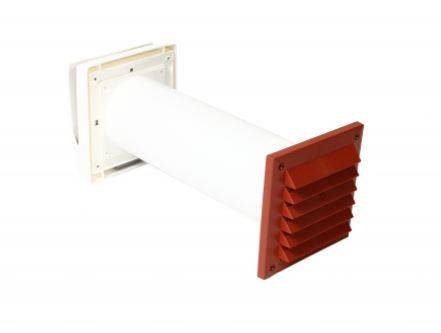

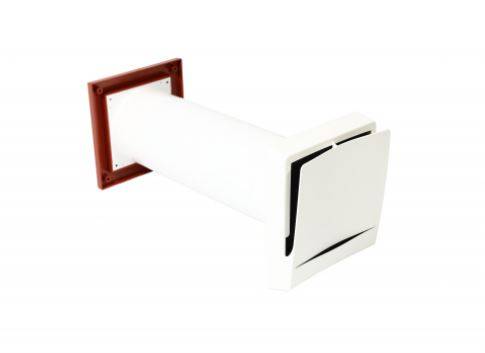

Glidevale Protect offers a range of manually controlled standard vents, which allow the user to open and close the vents as required. Fresh TLF, a non-electric through-wall vent that provides controllable background ventilation. Supplied as a controllable internal vent, ducting and external grille.

Features and benefits:

Manual slider operation controls internal iris to regulate airflow.
Filter and condensation protection incorporated.
Enhanced aesthetic appearance.
Design enhances airflow pattern locations.
Simple and easy to fit.
Ventilation equivalent area of 2910 mm².

General information

Color	White Guidance for specification option: Internal controller. Red Guidance for specification option: Terracotta, external grille. Other Guidance for specification option: Glass fibre with PVC skin duct and recyclable ABS body.
Material	Acrylonitrile butadiene styrene (ABS) Guidance for specification option: Recyclable.
Shape	Square
Length	350 mm Guidance for specification option: Length of ducting
Width	102 mm Guidance for specification option: Diameter of ducting
Height	102 mm Guidance for specification option: Diameter of ducting

Uniclass	Pr_30_59_96_93 Ventilation gratingsPrimary Ss_65_40_33_56 Natural ventilation systems Pr_30_59_96_92 Ventilation ducts

Specification data - Ventilation gratings

Apertures	Circular hole.
Work sizes	150 x 150 mm, 168 x 156 x 46 mm; 102 x 350 mm. Guidance for specification option: External Grille, internal controller; wall sleeve. Manufacturer guidance Other sleeve lengths are available upon request.
Material	Acrylonitrile butadiene styrene.
Colour	White/ terracotta. Guidance for specification option: White internal controller and terracotta external grille. Other. Guidance for specification option: Colour matched to RAL available (contact manufacturer for pricing).
