Glidevale Protect Fresh TLF-dB Acoustic Wall Ventilator - Through Wall Vent
Verified by manufacturer 4 months ago
Non-electric acoustic through wall vent provides controllable background ventilation.
Application
Suitable for use in applications where there are high levels of external noise such as near main roads, airports or railway lines. Suitable for both new build and refurbishment applications.
Description

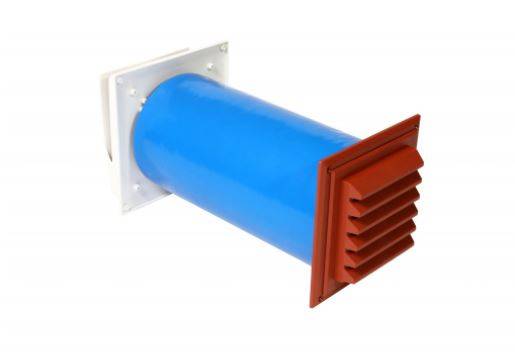

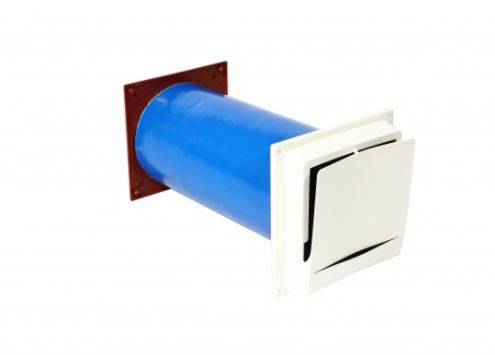

Glidevale Protect acoustic wall vents reduce the amount of noise ingress from outside. Fresh TLF-dB is a non-mechanical acoustic through wall vent provides controllable background ventilation and noise reduction to 46dB Dn,e,w. Supplied as controllable internal vent, acoustic ducting and external grille.
Features and benefits:
- Sound reduction up to 46dB Dn,e,w.
- Manual slider operation controls internal iris to regulate airflow.
- Filter and condensation protection incorporated.
- Enhanced aesthetic appearance.
- Ventilation equivalent area of 2530 mm².
General information
Color | White Red Guidance for specification option: Terracotta. Other Guidance for specification option: RAL colours on request. |
Material | Acrylonitrile butadiene styrene (ABS) Polyvinyl chloride (PVC) Glass Fibre |
Shape | Square |
Length | 300 mm Manufacturer guidanceLength of ducting |
Width | 140 mm Guidance for specification option: Diameter of ducting |
Height | 140 mm Guidance for specification option: Diameter of ducting |
Uniclass | |
CAWS | F30/175 Cavity ventilators F30/19 Cavity ventilators |
Specification data - Ventilation gratings
Apertures | Circular hole. |
Work sizes | 150 x 150 mm, 140 x 300 mm; 168 x 156 x 54 mm.Guidance for specification option: External grille, sleeve; internal controller. |
Material | Glass fibre with PVC skin / ABS.Guidance for specification option: Glass fibre with PVC skin duct and recyclable ABS body. |
Colour | White/ terracotta.Guidance for specification option: White internal controller and terracotta external grille. Other.Guidance for specification option: Colour matched to RAL available (contact us for pricing). |
Trickle ventilation | Yes. |
AirFlowRate | 6.3 L/s. Guidance for specification option: @10Pa. |
Sound reduction | 46 dB Dn,e,w. |
Sustainability data
Country of product manufacture | Sweden |
Recyclability | Manufacturer guidanceRecyclable ABS. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Glidevale Protect Fresh Wall Ventilators
