Verified by manufacturer 4 months ago
Non-electric through wall vent provides controllable background ventilation
Suitable for both new build and refurbishment applications.

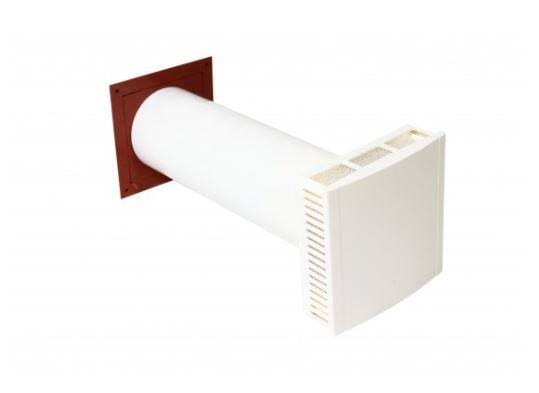

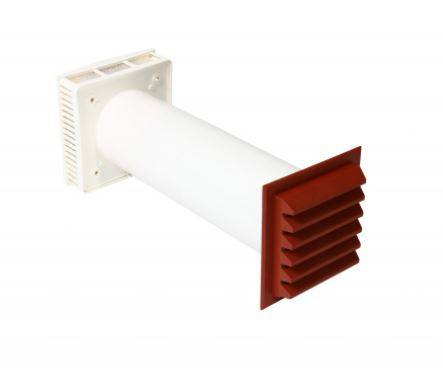

Glidevale Protect offers a range of manually controlled standard vents, which allow the user to open and close the vents as required. Fresh 90 a non-electric through wall vent provides controllable background ventilation. Supplied as a controllable internal vent, ducting and external grille.
Features and benefits:
Color | White Guidance for specification option: Internal controller. Red Guidance for specification option: Terracotta, external grille. Other Guidance for specification option: Colour matched to RAL available (contact manufacturer for pricing). |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Square |
Length | 360 mm Guidance for specification option: Length of ducting |
Width | 99 mm Guidance for specification option: Diameter of ducting |
Height | 99 mm Guidance for specification option: Diameter of ducting |
Uniclass | |
CAWS | F30/175 Cavity ventilators F30/19 Cavity ventilators |
Apertures | Circular hole. |
Work sizes | 140 x 140 mm, 99 x 360 mm; 150 x 150 x 48 mm.Guidance for specification option: External grille, sleeve; internal controller. |
Material | Recyclable acrylonitrile butadiene styrene. |
Colour | White/ terracotta.Guidance for specification option: White internal controller and terracotta external grille. Other.Guidance for specification option: Colour matched to RAL available (contact manufacturer for pricing). |
Trickle ventilation | Yes. |
AirFlowRate | 7.2 L/s. Guidance for specification option: @10pa. |
Country of product manufacture | Sweden |
Recyclability | Guidance for specification option: Recyclable ABS. |
