Glidevale Protect Fresh 90 dB Acoustic Wall Ventilator - Through Wall Vent
Verified by manufacturer 4 months ago
Non-electric acoustic through wall vent provides controllable background ventilation
Application
Suitable for use in applications where there are high levels of external noise such as near main roads, airports or railway lines. Suitable for both new build and refurbishment applications.
Description

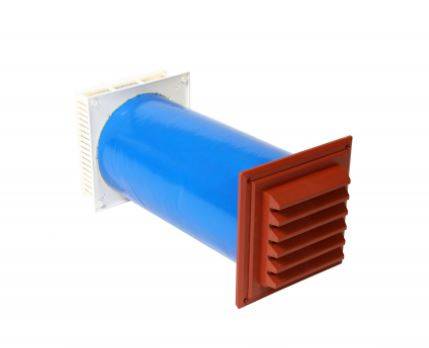

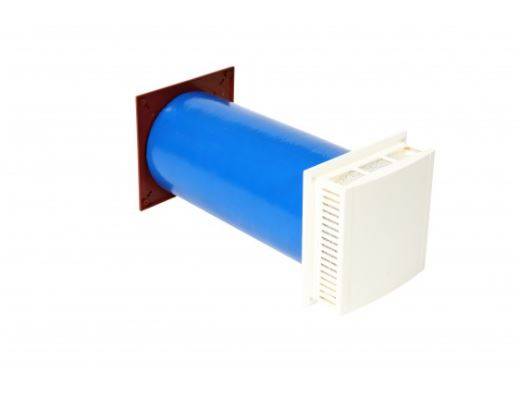

Glidevale Protect acoustic wall vents reduce the amount of noise ingress from outside. Fresh 90dB a non-electric acoustic through-wall vent, that provides controlled background ventilation and noise attenuation up to 43 dB Dn,e,w. Supplied as a controllable internal vent, acoustic ducting and external grille.
Features and benefits:
- Sound reduction up to 43 dB Dn,e,w.
- Manual slider operation controls internal iris to modulate airflow.
- Trickle facility possible even when ‘closed’ to ensure fresh air ingress.
- Filter and condensation protection incorporated.
- Ventilation levels can be controlled to set levels.
- Simple and easy to fit.
- Ventilation equivalent area of 2910 mm².
General information
Color | White Guidance for specification option: Internal controller. Red Guidance for specification option: Terracotta, external grille. Other Guidance for specification option: Colour matched to RAL available (contact manufacturer for pricing). |
Material | Acrylonitrile butadiene styrene (ABS) Polyvinyl chloride (PVC) Glass Fibre |
Shape | Square |
Length | 300 mm Guidance for specification option: Length of ducting |
Width | 140 mm Guidance for specification option: Diameter of ducting |
Height | 140 mm Guidance for specification option: Diameter of ducting |
Uniclass | |
CAWS | F30/175 Cavity ventilators F30/19 Cavity ventilators |
Specification data - Ventilation gratings
Apertures | Circular hole. |
Work sizes | 165 x 165 mm, 140 x 300 mm, 150 x 150 x 54 mm; 165 x 165 mm.Guidance for specification option: External grille, sleeve, internal controller; backplate. |
Material | Glass fibre with PVC skin duct and recyclable ABS body. |
Colour | White/ terracotta.Guidance for specification option: White internal controller and terracotta external grille. Other.Guidance for specification option: Colour matched to RAL available (contact manufacturer for pricing). |
Trickle ventilation | Yes. |
AirFlowRate | 7.3 L/s. Guidance for specification option: @10Pa. |
Sound reduction | 43 dB Dn,e,w. |
Sustainability data
Country of product manufacture | Sweden |
Recyclability | Manufacturer guidanceRecyclable ABS. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Glidevale Protect Fresh Wall Ventilators
