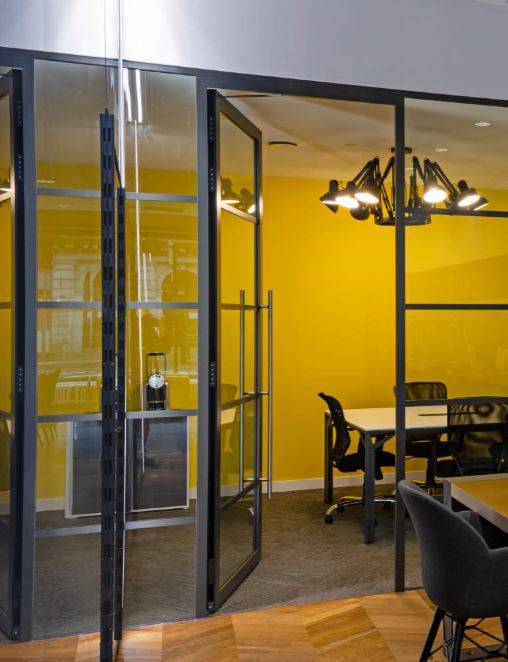

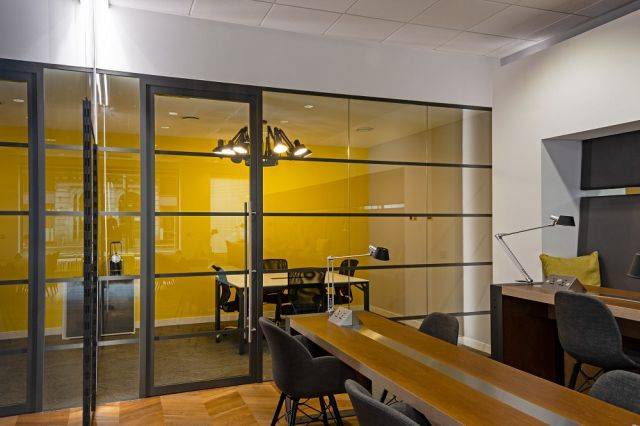

Glazed Sonik Hinged 52 Door Single

Glazed Sonik Hinged 52 Door Single

Komfort Partitioning Ltd

Sonikdoors is a newly improved group which has been designed to focus on ease of installation and future product maintenance whilst ensuring high acoustic insulation is maintained.

Jump to:
+44 (0) 1403 390300 www.komfort.com

Application

Product can be applied to office spaces, public areas and education sectors in which acoustic control is important while enhancing aesthetics and natural light.

Description

A stylish glazed door that can be integrated with all Komfort partitioning systems. The ready to hang double glazed hinged or pivoted door provides enhanced acoustic performance.

The Sonik door range is available with many configurations through improved profiles and ironmongery sets. There are three door profiles available, including 52 mm double glazed, 70mm double glazed and 70 mm single glazed. This flexibility in design provides better suitability for a wide range of designer specifications.


Features and benefits:

  • 44 mm-thick double glazed door.
  • Integration with all Komfort partitioning systems.
  • Exceeds acoustic guidelines (British council for offices): Up to 38 dB (Rw).
  • Promotes better working environments due to design aesthetics and acoustic performance.
  • Available up to 3 m in height.
  • Fast installation.
  • Multiple ironmongery options including intelligent wireless access control systems available.
  • Structural rating: Up to severe duty.
  • Acoustics up to 40 dB (Rw).
  • Single and double door sets available.

General information

Finish

Polyester powder coat

Material

Glass

Aluminium

Size

1100 x 3000 mm

Maximum width x height.

As schedule

Uniclass 2015

Pr_30_59_23_32 Frameless glass door leavesPrimary

CAWS

L20/280 Doors

L20/45 Doors

L20/460 Frameless glass doors

Specification data - Frameless glass door leaves Enhanced data

Leaf

-

Manifestation

Insert requirement, consult Komfort for details.

Hardware

-

Lock

-

Type

Access control.

For use with Salto handle.

CX lock and backbox.

For use with Regular handle.

CXMLOCK mortice lock.

For use with D handles and manet handles.

DA51 mortice lock.

For use with D handles and manet handles.

DA50 sash lock.

For use with Cranked handle.

Acoustics

Up to 40 dB (Rw); insert requirements.

-

Door closer

Not required.

Required.

Ironmongery

720 manet handles.

1240 manet handles.

1760 manet handles.

Cranked handle.

Regular handle.

Show more

Type

Not required.

Required.

Deflection tolerance

Not applicable.

±15 mm.

±25 mm.

Type

Single leaf.

Double leaf.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library

Literature

Komfort Partitioning Product Brochure

Komfort Partitioning Product Brochure

Sonik Doors Datasheet

Sonik Doors Datasheet
