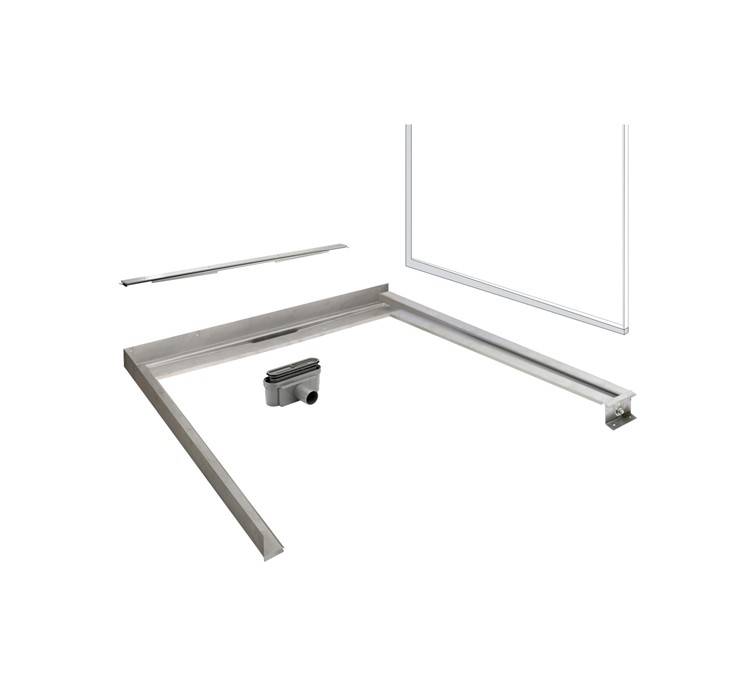

Glassline Wet Room System

Verified by manufacturer 3 months ago

WM | Wetroom Materials Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Wet room shower enclosure package including wet room base with integrated slope, built in shower channel and linear drain against 10 mm shower screen, with invisible wall mounting brackets.

Jump to:
+44 (0)1332 840820 Website

Application

Suitable for POD manufacturing, traditional builds, residential and commercial applications.

Description

A walk in level access shower enclosure package including shower screen and linear drain. The GlassLine right and left-aligned shower screen is fabricated from 10 mm clear safety float glass.


Six different grating designs are available.


Features and benefits:

  • No visible screws or fittings.
  • Glass surface is treated with Cleantec nanotechnology, making it water-repellent, less susceptible to limescale and easier to clean.
  • Packages contain drain, shower panel and ShowerLine (fixed module) which provides the base of the wet room system.
  • Available with a wide range of linear drain grates, panel finishes and tile-able cover.
  • A range of outlets are available, including standard, low profile and vertical.

General information

Color

Silver

Black

Copper

Gold

Finish

Tile Insert available

Brushed

PVD

Material

Glass

Stainless steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_60_78 Shower enclosure packagesPrimary

CAWS

N13/40 Shower units

N13/375 Shower units

Specification data - Shower enclosure packages

Standards

To BS EN 14428.

Form

Shower panel, frame and drain.

Finishes

-

Frame

-

Material

Stainless steel.

1.5 mm stainless steel (AISI 304).

Finish and colour

Brushed.

Glazing

-

Material

10 mm safety glass.

Finish and colour

Clear.

Shower fittings

-

Arrangement

Anniversario grate with frame.

Classic grate with frame.

Column grate with frame.

Inca grate with frame.

Square grate with frame.

Stripe grate with frame.

HighLine cassette grate with frame.

HighLine custom grate.

HighLine panel grate with frame.

Finish and colour

Brushed.

PVD.

Tiled.

Size

800 x 2104 mm (depth x height) as standard. Other shower screen depths available - consult manufacturer and insert requirements.

Integral accessories

ShowerLine (fixed module).

Stainless steel recessed frame for shower panel. Incorporates drain body. Available in a range of dimensions, to suit left-aligned shower screens and right-aligned shower screens. Consult manufacturer and insert requirements.

Outlet

Vertical, low profile and side outlets also available - contact manufacturer for details.

Horizontal, standard outlet.

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Cert Unidrain

BBA Agrément Certificate

BBA Agrément Certificate

Unidrain Stainless Steel Shower Drains
