Description

Frosted Window Films are one of the most cost effective and easiest ways to ensure you are up to date with the latest manifestation legislation and comply with current Building Regulations. Any full height glass in windows, partitions or doors, must be marked correctly with glass manifestation to make sure that it is made apparent. Glass manifestation is designed to help make glass obvious, and prevent injury should somebody walk into the glass.

Standards:

Building Regulations (E&W) Approved Document M states that glass entrance doors and glass screens will satisfy requirement M1 or M2 if:

  • a) They are clearly defined with glass manifestation on the glass at two levels; between 850–1000 mm and between 1400–1600 mm above the floor, contrasting visually with the background seen through the glass (both inside and out) in all lighting conditions.
  • b) Manifestation takes the form of logo or sign at least 150 mm high (repeated if on a glazed screen), or a decorative feature such as broken lines or continuous bands, at least 50 mm high.

This window film complies with BS 476 -6 and -7, Class 0 – Surface Spread of Flame and Ignitability.

General information
Size

50 mm

75 mm

100 mm

Uniclass 2015 Plastics window films (Pr_25_57_51_60)
Specification data
Product Reference

3M Frosted Crystal Window Film

Frosted film with extra sparkle.

Coloured Window Film

Crystal Etch Window Film

Whiter frosted with light sparkle.

Frostbrite® Window Film

Classic frosted effect film.

Silver Etch Window Film

Slightly darker frosted; greater definition for logos, patters and text.

Type

MF1

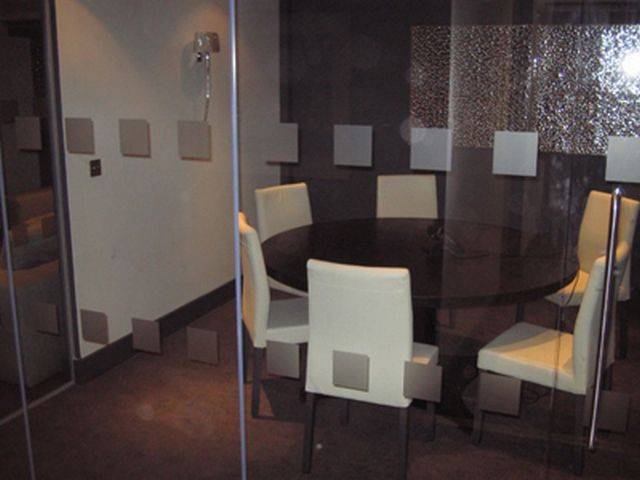

Frosted Squares.

MF2

Frosted Dots.

MF3

Frosted Squares with rounded corners.

MF4

Frosted Stars.

MF5

Frosted Square outlines.

MF6

Frosted Dot outlines.

MF7

Frosted square outline with rounded corners.

MF8

Frosted Star outlines.

MF9

Frosted Square with a dot cut from centre.

MF10

Frosted Bullseyes.

MF11

Thin Frosted Sticks.

MF12

Thick Frosted Lolly Sticks.

MF13

Thin Frosted Lolly Sticks.

MF15

Frosted Grids of Dots.

MF16

Frosted Grid of Rectangles (horizontal).

MF17

Frosted Grid of Rectangles (vertical).

Size

50 mm

75 mm

100 mm

Product Options

Type:

Other types of manifestation are possible on special request – contact manufacturer.

Colour:

Manifestation can be computer cut in the following solid colours: 4210 Black, 4224 Dark Grey, 4221 Grey, 4220 Light Grey, 4200 White, 4272 Almond, 4270 Cream, 4232 Yellow, 4223 Orange, 4243 Red, 4282 Magenta, 4283 Purple, 4255 Marine, 4254 Mid Blue, 4252 Ocean, 4250 Pale Blue, 4261 Grass, 4269 Green, 4263 Mid Green, 4264 Forest, 4291 Gold or 4290 Silver.

The following transparent colours are also available: Rainbow 501 – Yellow, Rainbow 502 – Mid Yellow, Rainbow 503 – Orange, Rainbow 504 – Mid Orange, Rainbow 505 –, Traffic Red, Rainbow 506 – Ruby Red, Rainbow 507 – Deep Red, Rainbow 508 – Pink, Rainbow 509 – Fuchsia, Rainbow 510 – Purple, Rainbow 511 – Bright Green, Rainbow 512 – Green, Rainbow 513 – Grass Green, Rainbow 514 – Turquoise, Rainbow 515 – Light Blue, Rainbow 516 – Mid Blue, Rainbow 517 - Blue, Rainbow 518 – Sapphire Blue, Rainbow 519 – Dark Brown or Rainbow 520 – Dark Grey.
