GGU INTEGRA® solar powered, white polyurethane, centre-pivot roof window, combination installation

GGU INTEGRA® solar powered, white polyurethane, centre-pivot roof window, combination installation

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

VELUX Company Ltd

Fully integrated solar powered, maintenance free, white polyurethane, centre pivot roof windows, for combination installations on roof pitches between 15–90°.

Jump to:
+44 (0)1592 778225 www.velux.co.uk
Application

For combination installations on roof pitches between 15–90°. Ideal for out-of-reach areas.

Description

Fully integrated solar powered, maintenance free, white polyurethane, centre pivot roof windows, for combination installations on roof pitches between 15–90°.

Features:

  • Maintenance free polyurethane moulding with white finish on timber core.
  • Fully integrated, pre-installed motor.
  • Photovoltaic cell on the external window frame charges the battery which in turn powers the motor for operation; PV cell requires direct exposure to sunlight.
  • No need to plug into a power supply.
  • Ideal for out-of-reach areas.

Operation:

  • Simple, convenient wall switch to operate the windows.
  • Rain sensor closes window automatically in the event of rain.

Glazing:

- Code 6830:

  • Thermal performance (U-value): 1.1 W/m²K.
  • Sound insulation (Rw): 35 dB.
  • Light Transmittance (Tv): 0.71.
  • Total solar energy transmittance (g): 0.52.

- Code 6630:

  • Thermal performance (U-value): 1.0 W/m²K.
  • Sound insulation (Rw): 37 dB.
  • Light Transmittance (Tv): 0.71.
  • Total solar energy transmittance (g): 0.52.

- Code 7030:

  • Thermal performance (U-value): 1.3 W/m²K.
  • Sound insulation (Rw): 35 dB.
  • Light Transmittance (Tv): 0.68.
  • Total solar energy transmittance (g): 0.46.

Distance between side frames:

  • 100-400 mm (100 mm is standard).

Energy efficiency installation collars:

  • Insulation collar – Code BDX: Optimizes the insulation around the window frame by preventing heat loss and eliminating cold bridges. BDX 2011E variant Includes underfelt collar BFX.
  • Underfelt collar – Code BFX: Ensures a weathertight seal between the roof window and the roof.
  • Vapour barrier collar – Code BBX: Provides vapour control and air permeability seal.

Flashing:

Flashings are available in materials and finishes to match roof window cladding.

- EKL 0021E:

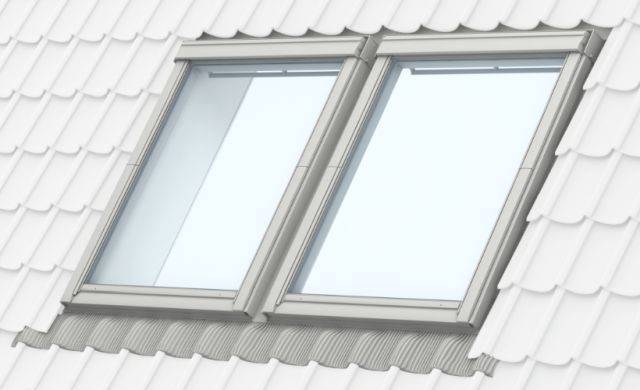

  • For standard coupled installation, two roof windows installed side by side with 100 mm frame gap.
  • For slate up to 8 mm thick.
  • Roof pitch 15–90°.

- EKL S0311:

  • For standard triple installation, three windows installed side by side with 100 mm frame gaps.
  • For slate up to 8 mm thick.
  • Roof pitch 15–90°.

- EKL S0122:

  • For standard duo installation, two windows installed one above the other with 100 mm frame gap.
  • For slate up to 8 mm thick.
  • Roof pitch 15–90°.

- EKL S0222:

  • For standard quattro installation, two windows installed side by side above two windows installed side by side with 100 mm frame gaps both horizontally and vertically.
  • For slate up to 8 mm thick.
  • Roof pitch: 15–90°.

- EKW 0021E:

  • For standard coupled installation, two roof windows installed side by side with 100 mm frame gap.
  • For tiles up to 120 mm in profile, interlocking slate, thatch and profile sheeting.
  • Roof pitch 15–90°.

- EKW S0311:

  • For standard triple installation, three windows installed side by side with 100 mm frame gaps.
  • For tiles up to 120 mm in profile, interlocking slate, thatch and profile sheeting.
  • Roof pitch 15–90°.

- EKW S0122:

  • For standard duo installation, two windows installed one above the other with 100 mm frame gaps.
  • For tiles up to 120 mm in profile, interlocking slate, thatch and profile sheeting.
  • Roof pitch 15-90°.

- EKW S0222:

  • For standard quattro installation, two windows installed side by side above two windows installed side by side with 100 mm frame gaps both horizontally and vertically.
  • For tiles up to 120 mm in profile, interlocking slate, thatch and profile sheeting.
  • Roof pitch: 15-90°.

- EKP 0021E:

  • For standard coupled installation, two roof windows installed side by side with 100 mm frame gap.
  • For plain tiles up to 14 mm in profile.
  • Roof pitch 25-90°.

- EKN S0021E:

  • For recessed coupled installation, two roof windows installed side by side with 100 mm frame gap.
  • For slate up to 8 mm thick.
  • Roof pitch 20-90°.

- EKJ S0021E:

  • For recessed coupled installation, two roof windows installed side by side with 100 mm frame gap.
  • For tiles up to 90 mm in profile, interlocking slate, thatch and profile sheeting.
  • Roof pitch 20-90°.

- Code ZWC:

  • Window profile set to be used in conjunction with on-site weathering for non-standard roofing materials.
  • Roof pitch 15–90º.
  • For further details please contact VELUX.

Warranty:

  • Ten-year guarantee for windows and panes.
  • Three-year guarantee for electrical items and blinds.

Application:

For combination installations on roof pitches between 15–90°. Ideal for out-of-reach areas.

General information

Features

Maintenance free polyurethane moulding with white finish on timber core

Fully integrated, pre-installed motor

Photovoltaic cell on the external window frame charges the battery which in turn powers the motor for operation; PV cell requires direct exposure to sunlight

No need to plug into a power supply

Ideal for out-of-reach areas

Show more

Finish

Internal frame and sash has a white lacquer finish on moulded polyurethane around a timber core. External cladding is available in grey aluminium; colour reference NCS S-7500-N - Code 0, untreated copper – Code 1, titanium zinc – Code 3 and painted aluminium – Code 8, colour

Material

Timber core with polyurethane coated frames and aluminium cladding

Size

Wide range of sizes to suit project requirements. Distance between side frames is 100 mm as standard or 120 mm, 140 mm and 160 mm

WarrantyDescription

Ten-year guarantee for window and pane. Three-year guarantee for electrical items and blinds

Uniclass 2015

Pr_30_59_98_72 Rigid polyurethane frame roof window unitsPrimary

CAWS

L10/480 Roof windows

L10/50 Roof windows

Specification data - Rigid polyurethane frame roof window units

Product Reference

GGU INTEGRA® solar powered, white polyurethane, centre-pivot roof window, combination installation

Whole window U-value

0.88 W/m²K - 1.3 W/m²K depending on product option

Frame

-

Finish as delivered

-

Internal frame and sash

White polyurethane lacquer

Code 0

External cladding

Grey aluminium; colour reference NCS S-7500-N

Code 0

Untreated copper

Code 1

Titanium zinc

Code 3

Painted aluminium

Code 8 – colour

Glazing or infill

-

Composition

Argon filled cavity or Krypton filled cavity depending on product option

Hardware

Flashings are available in materials and finishes to match roof window cladding

Operation

-

Type

Solar powered - simple, convenient wall switch to operate the windows. Rain sensor closes window automatically in the event of rain

Electrical supply

Photovoltaic cell on the external window frame charges the battery which in turn powers the motor for operation; PV cell requires direct exposure to sunlight

Fixing

-

Fixing features

Insulation collar, underfelt collar and vapour barrier collar available for installation

Accessories

Not required

VELUX ACTIVE with NETATMO

Code KIX 300 - Smart sensor based operation and smartphone control.

Distance between side frames

100 mm

Standard frame gap.

120 mm

140 mm

160 mm

Distance between top and bottom frames

100 mm

Standard frame gap.

250 mm

Required with external shutters.

Window

-

Window code

GGU CK02

Standard size 550 mm wide x 778 mm high, effective daylight area 0.22 m².

GGU CK04

Standard size 550 mm wide x 978 mm high, effective daylight area 0.29 m².

GGU CK06

Standard size 550 mm wide x 1178 mm high, effective daylight area 0.37 m².

GGU FK06

Standard size 660 mm wide x 1178mm high, effective daylight area 0.47 m².

GGU MK04

Standard size 780 mm wide x 978 mm high, effective daylight area 0.47 m².

GGU MK06

Standard size 780 mm wide x 1178 mm high, effective daylight area 0.59 m².

GGU MK08

Standard size 780 mm wide x 1398 mm high, effective daylight area 0.72 m².

GGU PK08

Standard size 942 mm wide x 1398 mm high, effective daylight area 0.92 m².

GGU PK10

Standard size 942 mm wide x 1600 mm high, effective daylight area 1.07 m².

GGU SK06

Standard size 1140 mm wide x 1178 mm high, effective daylight area 0.95 m².

GGU UK04

Standard size 1340 mm wide x 978 mm high, effective daylight area 0.91 m².

GGU UK08

Standard size 1340 mm wide x 1398 mm high, effective daylight area 1.40 m².

GGU FK04

Non-standard size 660 mm wide x 978 mm high, effective daylight area 0.38 m².

GGU FK08

Non-standard size 660 mm wide x 1398 mm high, effective daylight area 0.58 m².

GGU MK10

Non-standard size 780 mm wide x 1600 mm high, effective daylight area 0.85 m².

GGU PK06

Non-standard size 942 mm wide x 1178 mm high, effective daylight area 0.75 m².

GGU SK08

Non-standard size 1140 mm wide x 1398 mm high, effective daylight area 1.16 m².

Glazing

6830

6.8 mm laminated inner pane with low-e coating; 12 mm Argon filled cavity; 3 mm heat strengthened mid pane with low-e coating; 12 mm Argon filled cavity; 4 mm toughened outer pane with easy to clean and low-e coatings.

6630

6.8 mm laminated inner pane with low-e coating; 12 mm Krypton filled cavity; 3 mm heat strengthened mid pane with low-e coating; 12 mm Krypton filled cavity; 4 mm toughened outer pane with easy to clean and anti-dew coatings.

7030

6.8 mm laminated inner pane with low-e coating; 15 mm Argon filled cavity; 4 mm toughened outer pane.

Blinds, Awning and Shutter

-

Type

Not required

Blackout blind – code DSL

External awning blind – code MSL

External shutter – code SSL

Light dimming energy blind – code FSC

Pleated blind – code FSL

Colour

Not applicable

As schedule

Refer to VELUX Blinds and Shutters brochure for available colours and patterns.

Energy efficiency installation collars

Insulation Collar – Code BDX 2011E

For coupled installation only. Not compatible with EKN and EKJ flashings. Includes BFX.

Insulation Collar – Code BDX 2000F

Compatible with EKN and EKJ flashings only. Includes BFX.

Underfelt Collar – Code BFX 1000

Vapour Barrier Collar – Code BBX 0000

Flashing

EKL 0021E

Standard coupled installation into slate up to 8mm thick; roof pitch 15–90°.

EKL S0312

Standard triple installation into slate up to 8mm thick; roof pitch 15–90°.

EKL S0122

Standard duo installation into slate up to 8mm thick; roof pitch 15–90°.

EKL S0222

Standard quattro installation into slate up to 8mm thick; roof pitch 15–90°.

EKW 0021E

Standard coupled installation into tiles up to 120mm in profile; roof pitch 15–90°.

EKW S0312

Standard triple installation into tiles up to 120mm in profile, for roof pitch 15–90°.

EKW S0122

Standard duo installation for tiles up to 120mm in profile; roof pitch 15–90°.

EKW S0222

Standard quattro installation for tiles up to 120mm in profile; roof pitch 15–90°.

EKP 0021E

Standard coupled installation for plain tiles up to 14mm in profile; roof pitch 25-90°.

EKN S0021E

Recessed coupled installation for slate up to 8mm thick; roof pitch 20–90°.

EKJ S0021E

Recessed coupled installation for tiles up to 90mm in profile; roof pitch 20–90°.

ZWC

For standard installation where an on-site flashing is required; roof pitch 15–90°.

Standard product features

Colour:

External Colour NCS S-7500-N; Internal Colour, white polyurethane NCS S 0500-N.

Features:

Maintenance free polyurethane moulding with white finish on timber core, fully integrated, pre-installed motor. Photovoltaic cell on the external window frame charges the battery which in turn powers the motor for operation; PV cell requires direct exposure to sunlight, no need to plug into a power supply and ideal for out-of-reach areas. Rain sensor closes the window automatically in the event of rain.

Finish:

Internal frame and sash has a white lacquer finish on moulded polyurethane around a timber core. External cladding is available in grey aluminium; colour reference NCS S-7500-N - Code 0, untreated copper – Code 1, titanium zinc – Code 3 and painted aluminium – Code 8, colour.

Material:

Timber core with polyurethane coated frames and aluminium cladding.

Size:

Wide range of sizes to suit project requirements. Distance between side frames is 100 mm as standard or 120 mm, 140 mm and 160 mm.

Warranty description:

Ten-year guarantee for window and pane. Three-year guarantee for electrical items and blinds.

Third party certifications
  • CE marked : EN 14351-1:2006 + A2:2016
