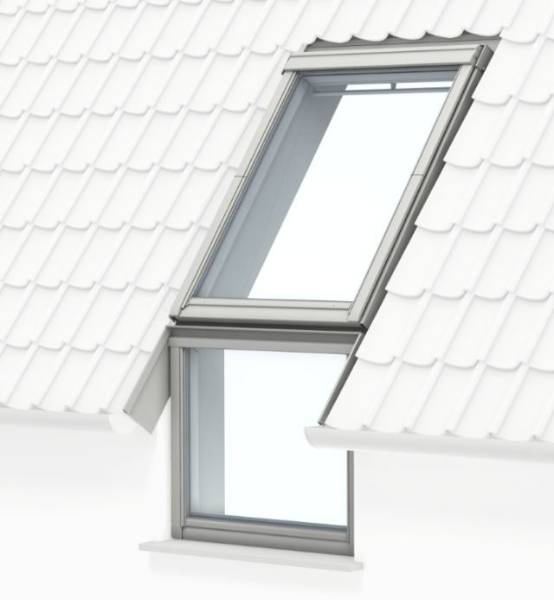

GGL Manually Operated, Centre-Pivot Roof Window with Vertical Window Below

Name: GGL Manually Operated, Centre-Pivot Roof Window with Vertical Window Below
Brand: VELUX Company Ltd
SKU: ncNXJ61KPApHJ2Q65bKtX8

Verified by manufacturer 5 months ago

VELUX Company Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type

Manually operated, centre pivot roof window with additional vertical element on roof pitches between 15–55°.

Jump to:

+44 (0)1592 778873 Website

Application

Suitable for one and a half-storey properties. For roof pitches between 15–55°.

Description

Features and benefits:

Combines a single sloping roof window and vertical window below to expand the view and increase daylight.
Ideal for one and a half-storey properties.
One pull of top control bar allows background ventilation whilst the window remains securely closed. One further pull opens the window.
Rotates 180° and locks in place for easy cleaning of outer pane.

Glazing:

- Code 70:

6.8 mm laminated inner pane with low-e coating; 15 mm Argon filled cavity; 4 mm toughened outer pane.

Thermal performance (U-value): 1.3 W/m²K.
Sound insulation (Rw): 35 dB.
Light Transmittance (Tv): 0.68.
Total solar energy transmittance (g): 0.46.

Vertical window element:

– Side hung, tilt and turn option (VFA and VFB):

Handing: VFA is left hand hung. VFB is right hand hung.
Inward opening.
Opening light is operated by means of a handle at the side of the sash. Ventilation is obtained through a limited opening, for safety. It is also possible to open the window completely for easy cleaning of the exterior pane, and for use as emergency escape.
One standard size; eight non-standard sizes. Note: Vertical window must be same width as roof window.

– Bottom hung option (VFE):

Inward opening.
Opening light is operated by means of a handle at the top of the sash. Ventilation is obtained through a limited opening, for safety. A release button makes it possible to open the window completely for easy cleaning of the exterior pane.
Two standard sizes; fourteen non-standard sizes available to order. Note: Vertical window must be same width as roof window.

General information

Color	White Guidance for specification option: External Colour NCS S-7500-N; Internal Colour, white paint NCS S 0500-N
Finish	Painted Guidance for specification option: Internal frame and sash is White painted as standard or comes in Lacquered natural pine. Lacquered
Material	Pine Guidance for specification option: Frames Aluminium Guidance for specification option: External cladding available in grey aluminium; colour reference NCS S-7500-N - Code 0.
Size	- Manufacturer guidance Wide range of sizes to suit project requirements
Width	780 mm 942 mm 1140 mm 1340 mm
Height	978 mm 1178 mm 1398 mm 1600 mm 601 mm 955 mm 1155 mm 1375 mm Show more
Warranty description	Ten year Guidance for specification option: For window and pane Three year Guidance for specification option: For blinds and electrics

Uniclass	Pr_30_59_98_97 Wood frame roof window unitsPrimary
CAWS	L10/480 Roof windows

Specification data - Wood frame roof window units

Standard	BBA Agrément Certificate.
Product performance	-
Whole window U-value	1.0–1.3 W/m²K. Guidance for specification option: Depending on product option.
Glazing or infill	-
Composition	Argon filled cavity.
Operation	-
Type	Manual. Guidance for specification option: One pull of top control bar allows background ventilation whilst the window remains securely closed. One further pull opens the window. Rotates 180° and locks in place for ease of cleaning of the outer pa
Accessories	None. Opening restrictor lock with key. Guidance for specification option: Codes ZOZ 010KC S011 - For roof window only. Window lock. Guidance for specification option: Code ZOZ 012K1 - For roof window only.
Execution	Fixing of wood frames.

Internal frame and sash	White painted. Guidance for specification option: Standard. Lacquered natural pine.
External cladding	Grey aluminium; colour reference NCS S-7500-N. Guidance for specification option: Code 0
Roof pitch	Guidance for specification option: Insert requirements.
Roof window code	GGL MK04 2070. Guidance for specification option: Standard size 780 mm wide x 978 mm high; effective daylight area, 0.47 m². GGL MK06 2070. Guidance for specification option: Standard size 780 mm wide x 1178 mm high; effective daylight area, 0.59 m². GGL MK08 2070. Guidance for specification option: Standard size 780 mm wide x 1398 mm high; effective daylight area, 0.72 m². GGL PK08 2070. Guidance for specification option: Standard size 942 mm wide x 1398 mm high; effective daylight area, 0.92 m². GGL PK10 2070. Guidance for specification option: Standard size 942 mm wide x 1600 mm high; effective daylight area, 1.07 m². GGL SK06 2070. Guidance for specification option: Standard size 1140 mm wide x 1178 mm high; effective daylight area, 0.95 m². GGL UK04 2070. Guidance for specification option: Standard size 1340 mm wide x 978 mm high; effective daylight area, 0.91 m². GGL UK08 2070. Guidance for specification option: Standard size 1340 mm wide x 1398 mm high; effective daylight area, 1.40 m². GGL MK10 2070. Guidance for specification option: Non-standard size 780 mm wide x 1600 mm high; effective daylight area, 0.84 m² GGL MK12 2070. Guidance for specification option: Non-standard size 780 mm wide x 1800 mm high; effective daylight area, 0.96 m². GGL PK25 2070. Guidance for specification option: Non-standard size 942 mm wide x 550 mm high; effective daylight area, 0.27 m². GGL PK04 2070. Guidance for specification option: Non-standard size 942 mm wide x 978 mm high; effective daylight area, 0.60 m². GGL PK06 2070. Guidance for specification option: Non-standard size 942 mm wide x 1178 mm high; effective daylight area, 0.75 m². GGL SK01 2070. Guidance for specification option: Non-standard size 1140 mm wide x 698 mm high; effective daylight area, 0.48 m². GGL SK08 2070. Guidance for specification option: Non-standard size 1140 mm wide x 1398 mm high; effective daylight area, 1.16 m². GGL SK10 2070. Guidance for specification option: Non-standard size 1140 mm wide x 1600 mm high; effective daylight area, 1.35 m². GGL UK10 2070. Guidance for specification option: Non-standard size 1340 mm wide x 1600 mm high; effective daylight area, 1.63 m². Show more
Vertical window code	VFA MK35 2070. Guidance for specification option: Left hung, standard size 780 mm wide x 954 mm high; effective daylight area, 0.44 m² VFA MK36 2070. Guidance for specification option: Left hung, non-standard size 780 mm wide x 1154 mm high; effective daylight area, 0.56 m². VFA MK38 2070. Guidance for specification option: Left hung, non-standard size 780 mm wide x 1374 mm high; effective daylight area, 0.69 m². VFA PK35 2070. Guidance for specification option: Left hung, non-standard size 942 mm wide x 954 mm high; effective daylight area, 0.56 m². VFA PK36 2070. Guidance for specification option: Left hung, non-standard size 942 mm wide x 1154 mm high; effective daylight area, 0.71 m². VFA PK38 2070. Guidance for specification option: Left hung, non-standard size 942 mm wide x 1374 mm high; effective daylight area, 0.88 m². VFA SK35 2070. Guidance for specification option: Left hung, non-standard size 1140 mm wide x 954 mm high; effective daylight area, 0.70 m². VFA SK36 2070. Guidance for specification option: Left hung, non-standard size 1140 mm wide x 1154 mm high; effective daylight area, 0.89 m². VFA SK38 2070. Guidance for specification option: Left hung, non-standard size 1140 mm wide x 1374 mm high; effective daylight area, 1.10 m². VFB MK35 2070. Guidance for specification option: Right hung, standard size 780 mm wide x 954 mm high; effective daylight area, 0.44 m². VFB MK36 2070. Guidance for specification option: Right hung, non-standard size 780 mm wide x 1154 mm high; effective daylight area, 0.56 m². VFB MK38 2070. Guidance for specification option: Right hung, non-standard size 780 mm wide x 1374 mm high; effective daylight area, 0.69 m². VFB PK35 2070. Guidance for specification option: Right hung, non- standard size 942 mm wide x 954 mm high; effective daylight area, 0.56 m². VFB PK36 2070. Guidance for specification option: Right hung, non-standard size 942 mm wide x 1154 mm high; effective daylight area, 0.71 m². VFB PK38 2070. Guidance for specification option: Right hung, non-standard size 942 mm wide x 1374 mm high; effective daylight area, 0.88 m². VFB SK35 2070. Guidance for specification option: Right hung, non-standard size 1140 mm wide x 954 mm high; effective daylight area, 0.70 m². VFB SK36 2070. Guidance for specification option: Right hung, non-standard size 1140 mm wide x 1154 mm high; effective daylight area, 0.89 m². VFB SK38 2070. Guidance for specification option: Right hung, nonstandard size 1140 mm wide x 1374 mm high; effective daylight area, 1.10 m². VFE MK31 2070. Guidance for specification option: Bottom hung, standard size 780 mm wide x 600 mm high; effective daylight area, 0.23 m². VFE MK35 2070. Guidance for specification option: Bottom hung, standard size 780 mm wide x 954 mm high; effective daylight area, 0.44 m². VFE MK36 2070. Guidance for specification option: Bottom hung, non-standard size 780 mm wide x 1154 mm high; effective daylight area, 0.56 m². VFE MK38 2070. Guidance for specification option: Bottom hung, non-standard size 780 mm wide x 1374 mm high; effective daylight area, 0.69 m². VFE PK31 2070. Guidance for specification option: Bottom hung, non-standard size 942 mm wide x 600 mm high; effective daylight area, 0.29 m². VFE PK35 2070. Guidance for specification option: Bottom hung, non-standard size 942 mm wide x 954 mm high; effective daylight area, 0.56 m². VFE PK36 2070. Guidance for specification option: Bottom hung, non-standard size 942 mm wide x 1154 mm high; effective daylight area, 0.71 m². VFE PK38 2070. Guidance for specification option: Bottom hung, non-standard size 942 mm wide x 1374 mm high; effective daylight area, 0.88 m². VFE SK31 2070. Guidance for specification option: Bottom hung, non-standard size 1140 mm wide x 600 mm high; effective daylight area, 0.36 m². VFE SK35 2070. Guidance for specification option: Bottom hung, non-standard size 1140 mm wide x 954 mm high; effective daylight area, 0.70 m². VFE SK36 2070. Guidance for specification option: Bottom hung, non-standard size 1140 mm wide x 1154 mm high; effective daylight area, 0.89 m². VFE SK38 2070. Guidance for specification option: Bottom hung, non-standard size 1140 mm wide x 1374 mm high; effective daylight area, 1.10 m². VFE UK31 2070. Guidance for specification option: Bottom hung, non-standard size 1340 mm wide x 600 mm high; effective daylight area, 0.44 m². VFE UK35 2070. Guidance for specification option: Bottom hung, non-standard size 1340 mm wide x 954 mm high; effective daylight area, 0.85 m². VFE UK36 2070. Guidance for specification option: Bottom hung, non-standard size 1340 mm wide x 1154 mm high; effective daylight area, 1.08 m². VFE UK38 2070. Guidance for specification option: Bottom hung, non-standard size 1340 mm wide x 1374 mm high; effective daylight area, 1.33 m². Show more
Centre-pivot window	Not required. Blackout blind – Code DKL. Blackout energy blind – Code FHC. Duo blackout blind – Code DFD. External awning blind – Code MHL. Flying pleated blind – Code FHL. Insect screen – Code ZIL. Roller blind – Code RFL. Roman blind – Code FHB. Solar powered blackout blind – Code DSL. Solar powered blackout energy blind – Code FSC. Solar powered pleated blind – Code FSL. Solar powered roller blind – Code RSL. Venetian blind – Code PAL. Show more
Vertical window	Blackout blind – Code DKL. Blackout energy blind – Code FHC. Duo blackout blind – Code DFD. External awning blind – Code MIE. Flying pleated blind – Code FHL. Insect screen – Code ZIL. Roller blind – Code RFL. Roman blind – Code FHB. Solar powered blackout blind – Code DSL. Solar powered blackout energy blind – Code FSC. Solar powered pleated blind – Code FSL. Solar powered roller blind – Code RSL. Venetian blind – Code PAL. Show more
Flashing	EFL 0012. Guidance for specification option: For standard installation in slate up to 8mm thick; roof pitch 15-55° EFN 0012. Guidance for specification option: For recessed installation in slate up to 8mm thick; roof pitch 20-55° EFW 0012. Guidance for specification option: For standard installation in tiles up to 120mm in profile. Also for interlocking slate, thatch and profile sheeting. roof pitch 15-55°. EFJ 0012. Guidance for specification option: For recessed installation in tiles up to 90mm in profile; roof pitch 20-55°. ZWC. Guidance for specification option: For standard installation where an on-site flashing is required; roof pitch 15-90°.

Sustainability data

Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.7 kg·CO₂e/kg Self declared

Third party certifications

BBA Agrément Certificate

08/4608
