GEZE Revo.PRIME Automatic Revolving Door
Verified by manufacturer 5 months ago
Automatic revolving door system with low canopy height and narrow profile system for three- or four-leaf doors.
Application
Areas of application include:
- Main entrance doors.
- Interior and exterior doors with high access frequency.
- Prestigious building entrances with major light incidence.
- Facades with narrow post-rail constructions.
Suitable profile systems are fine-framed profile systems with insulating and mono glass.
Description
Automatic revolving door system with low canopy height and narrow profile system for three- or four-leaf doors.
Features and benefits:
- Very quiet-running, low-wear drive solution with a canopy height of just 75 mm.
- Inner diameters of 1800 to 3800 mm possible.
- Glass facades with maximum design appeal.
- Three- and four-leaf door systems.
- Precise closing between door leaves and side walls.
- High insulation effect against draughts, the weather, and noise.
- Adjustable automatic speed to suit the number of people passing through.
- Door can be operated manually, e.g. for carrying out cleaning work.
- Can be connected via CAN bus and integrated into building technology management systems.
- Independent error recognition and recording.
- Freely configurable inputs and outputs for different functions.
- Integrated rechargeable battery for emergency opening in the event of safety-relevant faults such as a power failure.
General information
Color | Clear Other |
Finish | Powder-coated Anodized Coated |
Material | Aluminium Stainless steel Glass |
Shape | Circle |
Width | 1800 mm Guidance for specification option: Minimum. 3800 mm Guidance for specification option: Maximum. Bespoke Manufacturer guidanceInner diameter. |
Height | 3500 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Overall height: door height plus canopy height. Manufacturer guidanceDoor height. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets L20/495 Automatic revolving doors |
Specification data - Automatic revolving doorsets
Standard | Approved in accordance with EN 16005. |
Configuration | Three wing revolving door. Four wing revolving door. |
Materials and finishes | |
Doors | Profile aluminium sections. |
Drum walls | Profile aluminium. |
Glazing | |
Type | 10 mm clear laminated safety glass (LSG). 22 mm panel infill. 34 mm smooth panel. Special glass. Guidance for specification option: On request; consult manufacturer and insert requirements. |
Manifestation | Manifestation not included. |
Canopy | Metal covering sheet. Waterproof roof with waterspout. Dust protection roof with wood covering. Optical sheet metal covering. |
Activation and control system | |
Type | Touchscreen panel. Unidirectional motion detectors. |
Safety devices | Rubber drum wall safety edges. Pre-mullion late entry safety device fixed to revolver canopy. Horizontal foot bumper rails. Leading edge safety device mounted on the leading edge of each door leaf. Leading face safety sensors mounted on the top rails of each door leaf. Emergency stop button. |
Locking mechanism | Electro-mechanical. |
Accessories | Floor mat. |
Diameter | Guidance for specification option: Insert requirements.
Manufacturer guidanceInner diameter. |
Height | Guidance for specification option: Insert requirements.
Manufacturer guidanceDoor height. |
Canopy height | 75 mm, no air curtain. Bespoke >75 mm, no air curtain. Guidance for specification option: Insert requirements. 400 mm, with air curtain. Bespoke >400 mm, with air curtain. Guidance for specification option: Insert requirements. |
Warm-air curtain | Not required. Electric air curtain. Hot water air curtain. Manufacturer guidanceDepends on the ceiling construction; consult manufacturer for details and insert requirements. |
Surface finish | Silver Anodized (EV1). Powder-coated, standard RAL colour. Manufacturer guidanceVisible surface finish. |
Signs | Standard signage to EN 16005. |
Floor | Stainless steel floor ring for backfilling and final floor finish by others. |
Lighting | Not required. Low voltage LED down lights. |
Activation | Not required. Radar movement detector GC 302. LED sensor switch glass. LED sensor switch 20 mm. LED sensor foot switch. |
Literature
Literature type

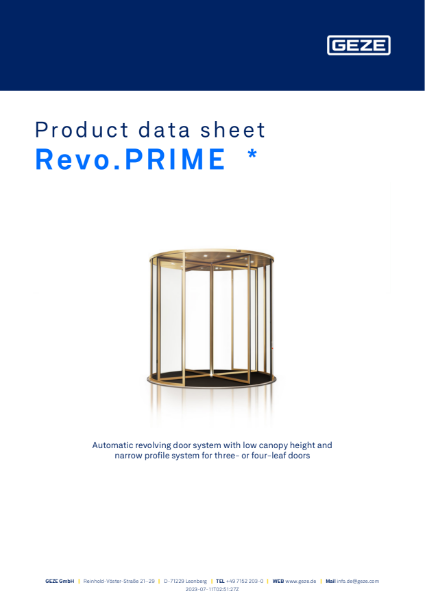

GEZE Revo.PRIME Revolving Door Product Data Sheet
