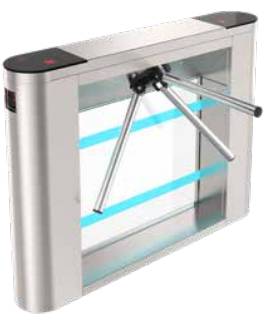

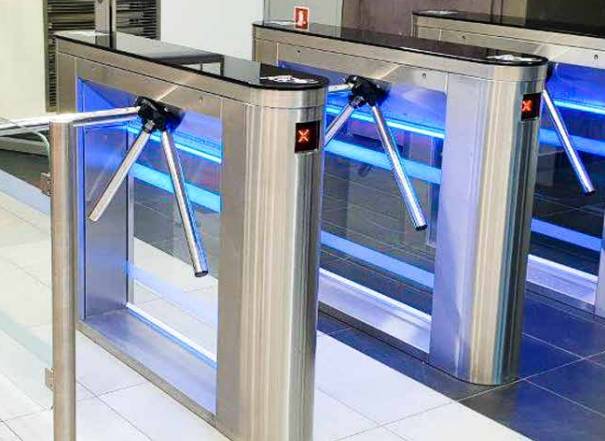

GEZE PACE TT 500 - Tripod Turnstile
Verified by manufacturer 3 days ago
Glass turnstile with a stainless steel framed body.
Application
Suitable for commercial applications. Combines with TT 400 and SW 100.
Description
The TT 500 turnstile consists of transparent glass framed by high strength stainless steel.
The glass is equipped with LED indicators that change colour depending on the entrance mode. On the top of the TT 500 turnstile is a card reader and LED display.
Features and benefits:
- A range of finishes are available.
- Bespoke designs available.
- High traffic flow capacity.
- Open or closed mode.
- Free access.
- Single pass.
- High protection level.
- Access control system.
- Push button.
- Motorized.
- Bi-directional.
General information
Color | Grey Other |
Finish | Brushed Polished Powder-coated |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 1320 mm |
Width | 744 mm Guidance for specification option: Lane width: 600 mm. |
Height | 1000 mm |
Warranty description | One year Two year |
Material | Stainless steel Glass |
Uniclass | |
CAWS | L20/60 Doors L20/490 Automatic doors Q50/160 Turnstile |
Specification data - Half-height access control gates
Standard | To EN 17352. |
Properties | |
Safety features | Fail-safe drop arm.Guidance for specification option: As standard. Fail-safe drop arm and battery back-up.Guidance for specification option: Optional. |
Configuration | Manufacturer guidanceInsert number of lanes required. |
Housing | |
Type | Solid frame. |
Material and finish | Stainless steel, brushed AISI 304.Guidance for specification option: Standard. Stainless steel, brushed AISI 316.Stainless steel, polished AISI 304.Stainless steel, polished SS AISI 316.Stainless steel, powder-coated RAL.Guidance for specification option: Insert colour requirement below. |
Colour | Manufacturer guidanceInsert requirement or omit. |
Panel | |
Type | Solid glass top.Stainless steel top with glass inserts. |
Rotation | Turnstile. |
Material and finish | Glass/ stainless steel. |
Size | |
Clear opening width (minimum) | 600 mm. |
Overall width | 744 mm. |
Length | 1320 mm. |
Height | 1000 mm. |
Credential Reader | |
Controls | Push buttons. |
Number of transactions (minimum) | 25 per minute. |
Control unit | Access control system. |
Power supply | 100–240 V a.c. 50/60 Hz.Guidance for specification option: DC source: 12 V. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Ingress protection (IP) rating | IP41. |
Type | Servo-driven (Triservo-M). |
Sustainability data
Material | Stainless steel Glass |
Similar products from GEZE UK Limited

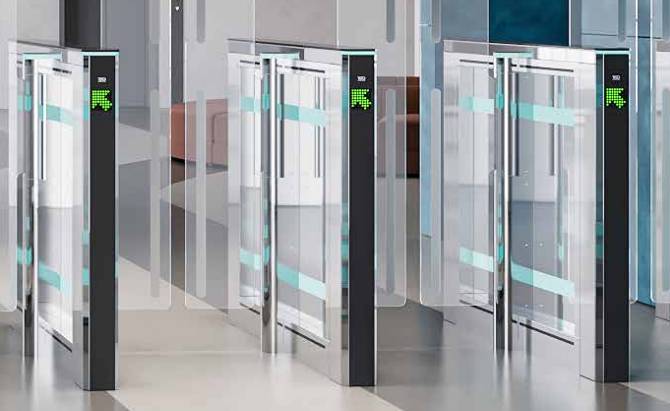

GEZE PACE SW 100 - Access Control Speed Gate
