Geryon Security Turnstile - Medium Security Controlled Access

Name: Geryon Security Turnstile - Medium Security Controlled Access
Brand: dormakaba UK & Ireland Ltd
SKU: rt8N1oaut4C9Qt5U4h49ym

Verified by manufacturer 6 months ago

dormakaba UK & Ireland Ltd

Product certifications:

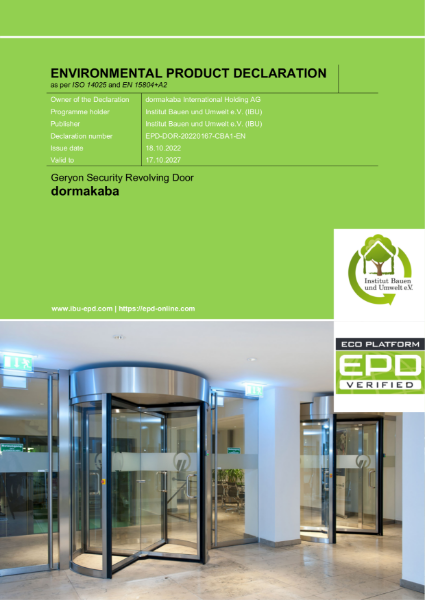

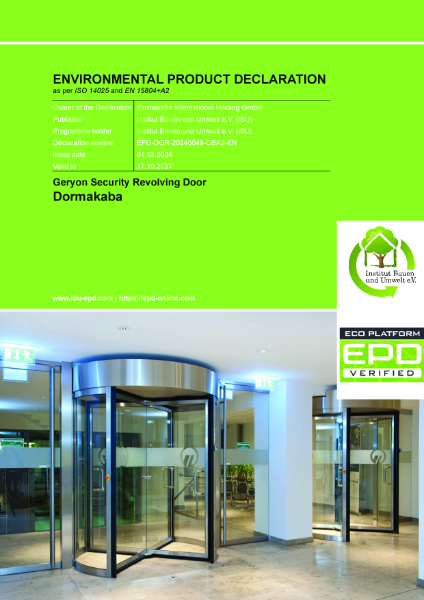

EPD
Certificate type

Security turnstile for controlled access.

Jump to:

+44 (0)1462 477600 Website

Application

Staff access for security-relevant areas.
Sensitive areas in banks and financial institutions, power plants, military installations, etc.
Staff entrances.

Description

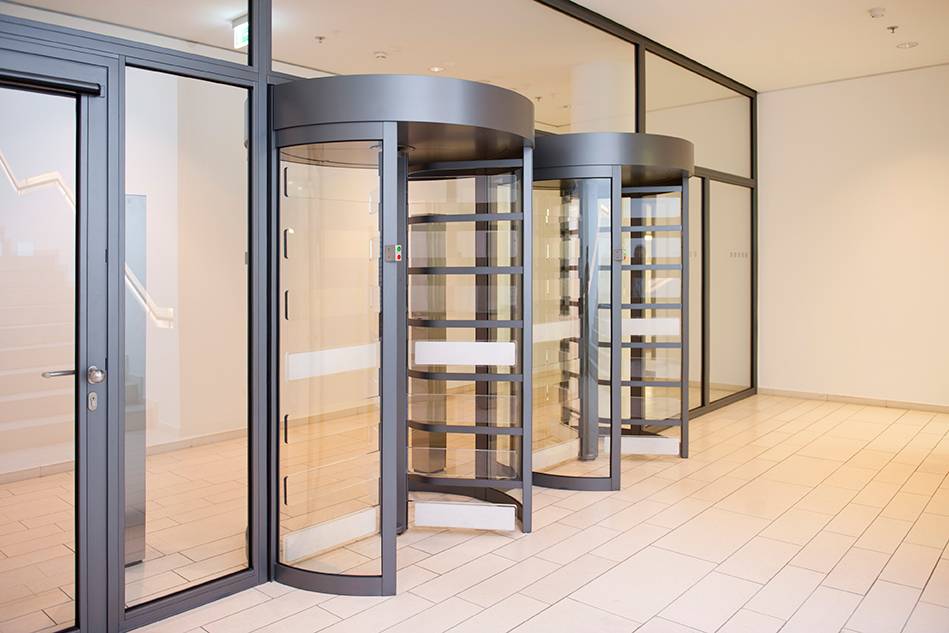

Security turnstile for controlled access in medium-security environments.

Features and benefits:

People cannot become trapped due to endpoint locking.
Optional U-shaped stainless steel bars or acrylic glass elements instead of straight bars.
Safety sensor system according to DIN 18650.
Rotating unit consists of a column and three door wings with seven crossbars.

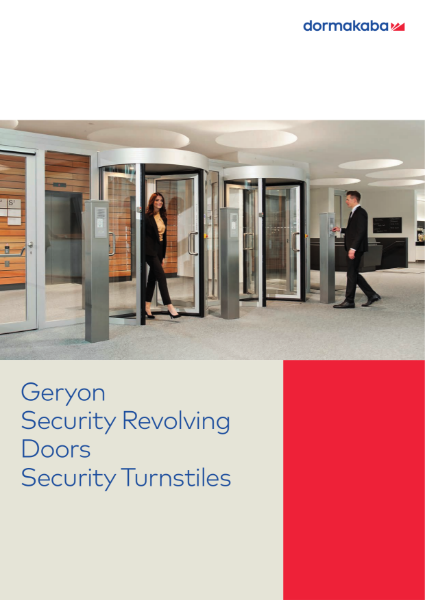

Geryon Security Revolving Doors also available, specified separately.

General information

Color	Silver Other
Finish	Powder-coated Anodized Stainless steel
Material	Stainless steel Acrylic
Shape	Circle
Length	1500 mm Guidance for specification option: Diameter.
Width	1500 mm Guidance for specification option: Diameter.
Height	2275 mm Guidance for specification option: Passage height: 2075 mm.

Uniclass	Pr_30_59_34_78 Stainless steel full-height turnstilesPrimary
CAWS	L20/500 Manual revolving doors Q50/160 Turnstile

SKU Code	STS-S02

Product range	Security Doors and Speed Lanes - ESC

Specification data - Stainless steel full-height turnstiles

Rotation	Two directions.
Control unit	Power assisted motion; servo-positioning drive/ two directions electrically controlled.
Leaves and surrounds	Curved panels, glazed. Curved panels, metal cladding.
Finish	Polyester powder coated, RAL. Guidance for specification option: Insert colour requirements. Silver anodized. Stainless steel.

Accessories	Guidance for specification option: Insert requirements or omit as required; consult manufacturer's literature for information.
Door wings	U-shaped electropolished stainless steel bars, 120°. Guidance for specification option: Standard. 26.9 mm outer diameter. Acrylic glass bars, 120°; smooth/ with markings. Guidance for specification option: 20 mm thick. Acrylic glass bars, 120°; with stainless steel inlay. Guidance for specification option: 20 mm thick.
Capacity	15 per minute. Manufacturer guidance In one direction.
Diameter	1500 mm (inside diameter: 1400 mm).
Integral accessories	Console 1, plastic RAL 9006. Guidance for specification option: 94 x 94 x 95 mm. Console 4, stainless steel semi-gloss smooth finish. Guidance for specification option: 118 x 93 x 60 mm. Console 5, stainless steel semi-gloss smooth finish. Guidance for specification option: 118 x 164 x 60 mm. Manufacturer guidance Width x height x depth. See also Components for related electrical details.
Components	Electrical: · Push button for manual single release, integrated in stainless steel console. · OPL 05 operating panel. · Signal device in stainless steel console consisting of two lights red/ green. · Additional boards to expand the existing inputs/outputs. · Lighting by two LEDs. Manufacturer guidance See also Integral accessories for console options.
Power consumption	20 VA. Guidance for specification option: Standby power consumption.
Power supply	110–230 V a.c., 50/ 60 Hz.
Fixing	Finished floor level (FFL).
Passage height	2075 mm.
Total height	2275 mm.
Standard	To DIN 18650. Guidance for specification option: Safety sensor system.
