GeoTrax™ GC - Cellular Confinement System
Verified by manufacturer 1 day ago
GeoTrax™ GC 75
GeoTrax™ GC 75
Expandable cellular confinement system made from perforated and textured HDPE, used for load spreading and containment with multiple depth options.
Application
Used in construction for three-dimensional load spreading or containment systems.
Typical applications include tree root protection, erosion control, retaining structures, and temporary or permanent track and compound construction where a no-dig system is specified.
Description

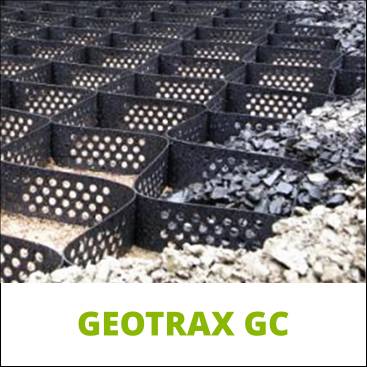

GeoTrax GC is an expandable cellular confinement system that can be filled with sand, soil, gravel or other site materials for use in the construction of three dimensional load spreading or containment systems.
Features and benefits:
- Constructed from 1.6 mm perforated and textured HDPE.
- Available in 75, 100, 150 and 200 mm deep variants.
- Typical uses include tree root protection, erosion control, retaining structures and temporary or permanent track and compound construction when a no-dig system has been specified.
- Can reduce the overall construction depth thereby reducing the cost of the infill material.
- Works by confining the infill material and spreading downward forces from traffic laterally to reduce pressure on the sub base.
General information
Color | Black |
Finish | Unfinished |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 7410 mm Guidance for specification option: Expanded panel size. |
Width | 2710 mm Guidance for specification option: Expanded panel size. |
Height | 75 mm 100 mm 150 mm 200 mm |
Uniclass | |
CAWS | D20/571 Geocells |
SKU Code | GC75 |
Specification data - Geocell sheets
Classification data | |
Material | High-density polyethylene (PE-HD). Guidance for specification option: 1.6 mm thick. |
Cell dimensions (expanded) | |
Cell size (nominal) | 259 x 224 mm. Guidance for specification option: Cell walls are perforated and textured. |
Cell depth | 75 mm. |
Properties | |
Dry weight | 18 kg. Guidance for specification option: Per panel. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Accessories | GeoTrax™ GT Geotextile. GeoTrax™ GX Geogrid. GeoTrax™ steel pins. CellGrip and Terra-Lock fixings. None. |

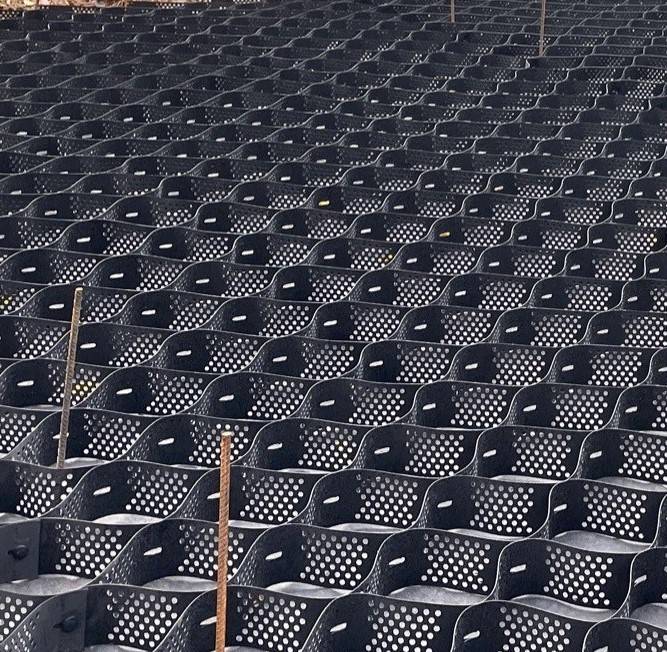

Panel size | Expanded: 2.71 x 7.41 m (20 m²). Guidance for specification option: Geocells arrive flat packed on pallets and are expanded on site to form a honeycomb-like structure. The supplied steel pins and plastic caps are used to hold the cells open prior to filling. |
Seam | Weld strength: 900 N. |
Tensile strength | Longitudinal: 18.4 MPa; transverse: 19.5 MPa. |
Environmental stress crack resistance | >3000 hours. |
Sustainability data
Material | High density polyethylene (HDPE) |
Literature
Literature type

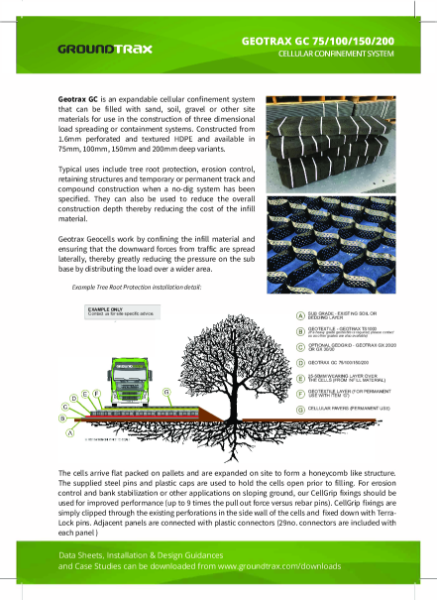

GeoTrax™ GC - Product Data
