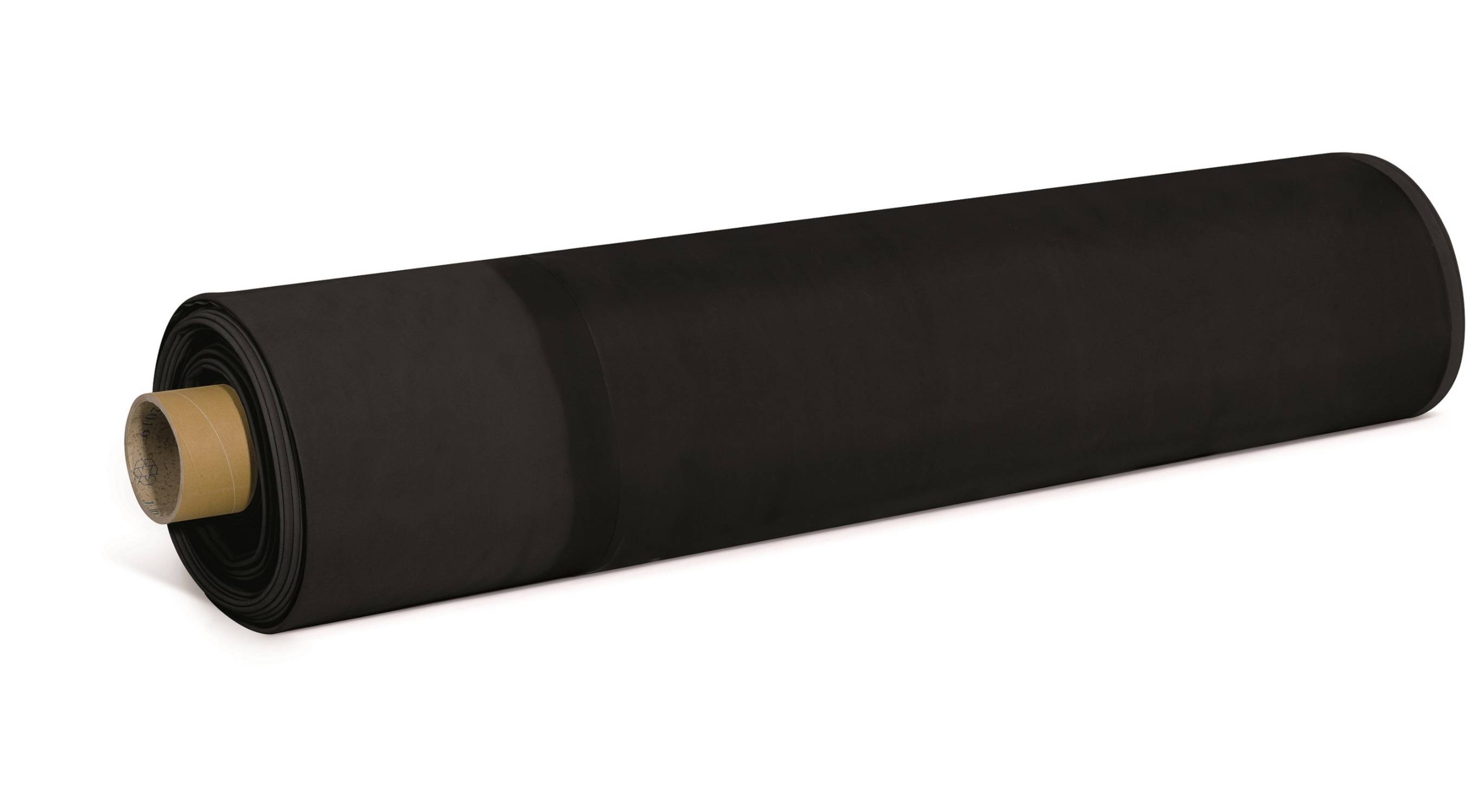

GeoSmart™ EPDM Geomembrane
Verified by manufacturer 2 days ago
Geosmart™ EPDM is a synthetic rubber geomembrane liner designed to waterproof small and mid-sized ponds and water containment applications such as agricultural ponds, pits & silage covers.
Application
For water containment applications such as small and mid-size agricultural ponds, pits and silage covers. Also suitable for irrigation reservoirs, dung pits and wastewater reservoirs.
Description
GeoSmart EPDM membrane is a 100% cured lining membrane made of synthetic rubber Ethylene-Propylene-Diene Terpolymer. It is available in a variety of standard panel sizes or can be tailor-made to the size of the project in order to have a seamless installation.
Features and benefits:
- High elasticity and tensile strength.
- Excellent resistance to UV and ozone.
- Retains its elasticity and flexibility even at temperatures as low as -45°C.
- Resistant to temperature shocks up to 130°C.
- Excellent resistance to acid rains.
- High puncture resistance.
- High resistance to hydrostatic pressures.
- High friction angle.
- Quick and easy installation.
- Environmentally friendly.
General information
Color | Black |
Finish | Textured |
Material | Rubber |
Shape | Rectangle |
Length | 10000 mm 12000 mm 14000 mm 16000 mm 18000 mm |
Width | 3000 mm 4500 mm 6000 mm 7500 mm 9000 mm |
Height | 0.8 mm 1.0 mm 1.2 mm |
Uniclass | |
CAWS | J44/115 Geomembrane lining J44/110 Geomembrane lining |
Specification data - Polymeric membranes
Material | Ethylene-Propylene-Diene Terpolymer (EPDM). |
Performance characteristics | |
Watertightness | To EN 14150, < 1,10-6 m³ m²/d.Manufacturer guidanceWater permeability (liquid tightness) |
Tensile properties | Tensile strength (MD/CD) to EN 12311-2, 8 MPa (0.8 mm), 9 MPa (1.0 mm), 9 MPa (1.2 mm). |
Width (minimum) | 3 m.4.5 m.6 m.7.5 m.9 m.10.5 m12 m.15 m.18 m.24 m.30 m.36 m.Bespoke.Guidance for specification option: Multiples of 1.5 m. Insert requirements. Manufacturer guidanceNot all panel widths exist in combination with all lengths. Consult manufacturer. |
Thickness (minimum) | 1.1 mm.1.5 mm.Bespoke.Guidance for specification option: 0.8–1.0–1.2 mm. Insert requirements. Manufacturer guidanceOther thicknesses are available upon request. |
Colour | Black. |
Accessories | None.Lining Bonding Adhesive BA-2017.QuickSeam Splice Tape.QuickSeam FormFlash.QuickSeam Repair Kit.QuickPrime Plus.EasySealant.EasyCorner IN & EasyCorner OUT.Termination Bar.Cleaner C-20. |
Elongation | To EN 12311-2, ≥ 300%. |
Flexibility at low temperature | To EN 495-5, ≤ -45°C. |
Gas tightness | To ASTM D1434, 2.25 10-3 m³ m²/d (methane). |
Literature
GeoSmart™ EPDM
