GEODE MX 52 Aluminium Curtain Walling System

Verified by manufacturer 2 months ago

MX52

Technal Variant:

Complete curtain walling system available in a variety of design options to suit project requirements.

Jump to:
+44 (0)1684 853 500 Website

Application

Suitable for all applications, including: commercial, residential, education and hospitality.

Description

MX52:

Aluminium curtain walling system for use with a variety of curtain walling applications using the same mullion and transom grid, enabling variations to the external appearance of the building, with the construction benefitting from one fully integrated system.


MX52 Visible Grid (32 mm):

Fully capped curtain wall. Aluminium curtain walling system for use with a variety of curtain walling applications using the same mullion and transom grid. Complete with differing face caps and external variations, so enabling variations to the external appearance of the building - while benefitting from one fully integrated system.

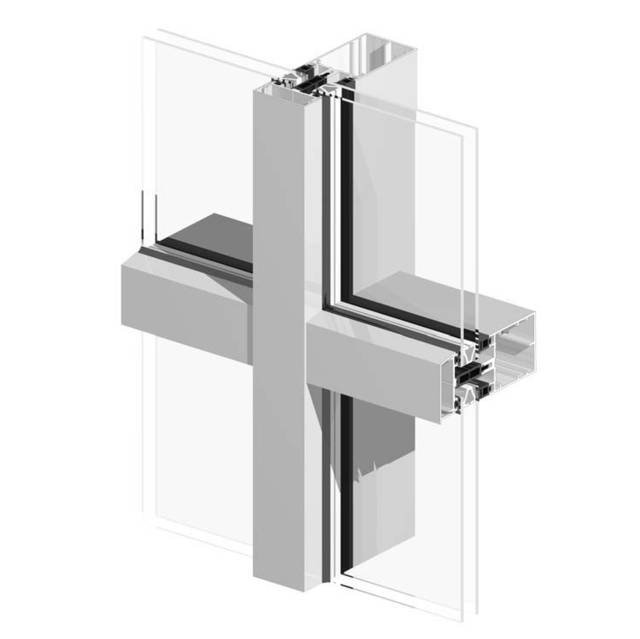

MX52 Trame:

A design option, allowing specifiers to spotlight a vertical or horizontal emphasis across the building envelope.

Projecting caps may be used to add depth to the facade whilst slender face trim gaskets, which are flush with the front face of the infill, soften the corresponding vertical or horizontal sections.


MX52 Acoustic (42 mm):

An MX52 design option, allowing specifiers to incorporate thicker infills for thermal, barrier or acoustic compliance. Can accommodate up to 42 mm glazing.


MX52 Acoustic Visible Grid:

Fully capped curtain wall. Aluminium curtain walling system for use with a variety of curtain walling applications using the same mullion and transom grid. Complete with differing face caps and external variations, so enabling variations to the external appearance of the building - while benefitting from one fully integrated system.

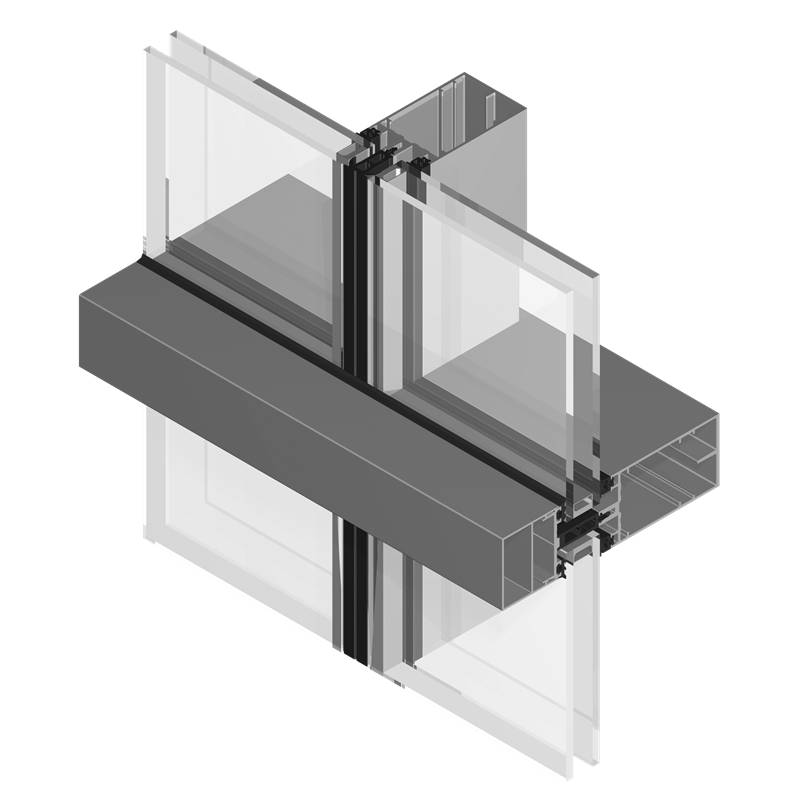

MX52 Trame Horizontale Acoustic:

A design option, allowing specifiers to spotlight horizontal emphasis across the building envelope.

Projecting horizontal transom caps add depth to the facade whilst slender face trim gaskets, which are flush with the vertical front face of the infill, soften the corresponding verticals.


MXm 52: Toggle

An MX52 design option, allowing specifiers to choose a flush external facade. Or add emphasis via extended capping to highlight individual elements.

Projecting caps may be used to add depth to the facade whilst a slender face trim gasket or a flush silicone seal, which are flush with the front face of the infill, soften the corresponding vertical or horizontal sections.


Features and benefits:

  • Facet up to ±10° using standard cast cleat and rotation spigot. Up to ±20° using adapters. Bespoke sections for 90° corners.
  • Stick system for easy transportation and installation, zone drained and pressure equalized to ensure performance and drainage efficiency.
  • PVC thermal breaks.
  • Projecting face caps may be used to add depth to the facade.

General information

Color

-

Manufacturer guidance

Single or dual colour; possibility for differing finishes internally (RAL colour) and externally (anodized).


Consult manufacturer for availability of colours and to obtain samples.

Finish

Anodized

Guidance for specification option:

Anodized to BS EN 3987.

Powder-coated

Guidance for specification option:

Powder coating to BS EN 12206-1:2004.

Material

Aluminium

Guidance for specification option:

Frame members and pressure plates.

Shape

Other

Guidance for specification option:

Made to measure, please refer to design manuals or project manager for more detail.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Product range

Aluminium Facades

Specification data - Stick curtain walling systems

System performance

To CWCT and BS EN13830.

Framing

-

Frame members

Aluminium alloy.

Frame accessories

Decorative external cover caps.

Fasteners

Torx head austenitic stainless steel screws.

Cladding units

-

Glass units

Single glazed panes.

Guidance for specification option:

Insert requirements.

Insulating glass units.

Guidance for specification option:

Up to 32 mm or 42 mm.


Insert requirements.

Manufacturer guidance

Consult with manufacturer for recommendations and details of glass types and thicknesses.

Fasteners

Austenitic stainless steel.

Perimeter seals

EPDM.

Samples required

On request.

System accessories

Zamak 5.

A-S9G03 to BS EN 12844.

Manufacturer guidance

Cast from:

Colour/ Finish

Anodized to BS EN 3987 - 25 microns.

Powder coating to BS EN 12206-1:2004 - 60 microns.

Guidance for specification option:

Insert colour code or consult manufacturer for details.

Manufacturer guidance

Internal framing member and external cover cap.

Minimum film thickness

60 microns.

Marine grade.

Manufacturer guidance

Internal framing member and external cover cap.

Glazing system

EPDM gaskets, aluminium pressure plate with architectural cover cap to finish.

Incorporated components

Not required.

STII doors.

FY65 windows.

DF75 windows.

DF75Si windows and balcony doors.

Show more

Gasket

EPDM.

Guidance for specification option:

(Ethylene propylene diene terpolymer.)

Construction

Square cut.

Guidance for specification option:

MX52 Construction:

Mullions and transoms are square cut and assembled using a combination of factory-fitted, cast face-fixed junction spigots and anti-rotation steel pins, or by extruded transom blocks.

The mullion jointing detail uses a bespoke sleeve spigot for a high quality joint.

The system is zone drained and pressure equalized to ensure performance and drainage efficiency.


Sustainability data

Country of material origin

-

Manufacturer guidance

Varies.

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.3 kg CO₂ eq/kg

Manufacturer guidance

(Calculation on request.)

Recyclability

High

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Manufacturer guidance

(Up to):
