Application

Suitable for use on straight and level runs, ramps, curves, corners or staircases are required, this versatile Geo product can be used across a wide range of applications

Description

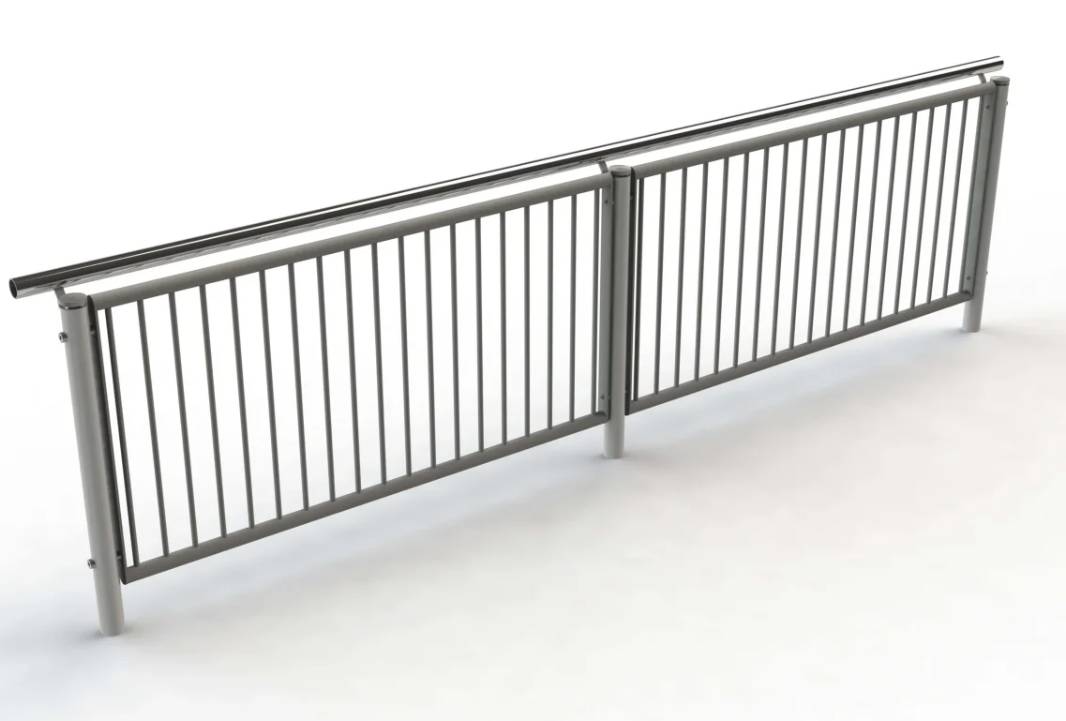

Geo handrail and balustrades are fully customizable, depending on the project's needs. Whether straight and level runs, ramps, curves, corners or staircases are required, this versatile Geo product can be used across a wide range of applications.


Manufactured from high quality 316 grade stainless steel, Geo handrail and balustrade is available in a bead blasted finish, providing a resilient and robust solution regardless of weather conditions or usage.


Illumination can be integrated for functional or architectural purposes. Low voltage IP67-rated power supplies combined with high luminosity LEDs offer durability and efficiency. Available in three basic models, the configuration of Geo handrail and balustrade is entirely site specific, providing a fully customizable solution backed by Marshalls' extensive installation experience.


Features and benefits:

  • Manufactured from high quality 316 grade stainless steel
  • Fully customisable.
  • Additional options and accessories available

General information

Color

Grey

Finish

Shot blasted

Guidance for specification option:

Bead blasted.

Galvanized

Powder-coated

Satin

Material

Stainless steel

Shape

Other

Width

1000 mm

1500 mm

2000 mm

Manufacturer guidance

Panel sizes.

Height

998 mm

999 mm

1126 mm

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

Q41/240 Handrail systems

Q41/240 Handrail systems

L37/160 Balustrade systems

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Uprights

Stainless steel bars and rods for construction.

Infills

Stainless steel bars.

Guidance for specification option:

Grade 316.

Mild steel bars.

Guidance for specification option:

Grade S235.

Rails

-

Handrails

None.

Fixing to parent structure

Guidance for specification option:

Consult manufacturer and insert requirements.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Configuration

Vertical infills.

Horizontal infils.

Panel size

2000 mm.

Guidance for specification option:

49 kg.

1500 mm.

Guidance for specification option:

36 kg.

1000 mm.

Guidance for specification option:

21 kg.

Diameter

76.1 mm.

Manufacturer guidance

Post diameter.

Material

Stainless steel.

Guidance for specification option:

Grade 316.

Mild steel.

Guidance for specification option:

Grade S235.

Weight

11 kg.

Manufacturer guidance

Post weight.

Height (above ground)

1126 mm.

Length below ground

300 mm.

Fixing

Root fixed.

Surface finish

Bead blasted.

Galvanized and powder coated.

Manufacturer guidance

Post / Panel.

Accessories

Post cap.

Guidance for specification option:

  • Stainless steel.
  • Machined finish.
  • Grade 316.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
