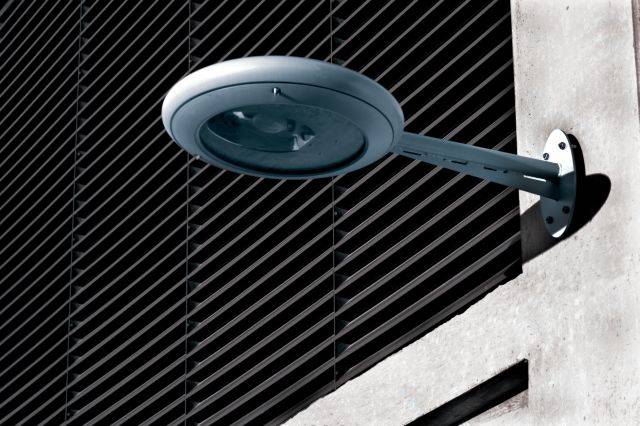

Geo Disc 400 Luminaire
Description

The Geo Disc luminaire provides excellent photometric attainment, light distribution and flexibility of application from a striking aesthetic. Featuring an ultra low-profile aluminium body, silver painted finish, with a flat toughened glass diffuser the Disc looks as good as it performs.

Designed for unrivalled visual coordination with other Geo street furniture and signage elements, the Disc provides an attractive and efficient lighting solution for individual projects.

Benefits:

  • Various light distribution optics and lamp configurations are available to suit all applications.
  • Lamp and gear compartment sealed to IP66 to give protection from dust and water ingress.
  • Simple and quick lamp replacement.
  • Tool-less gear tray removal.
  • Alternative colours and finishes are available to match individual projects or town identity.
  • Integrated photoelectric cell option for efficient operation.

General information
Uniclass 2015
Pr_70_70_48_73 Road lighting luminairesPrimary
CAWS

V91/340 Luminaires for road and street lighting

Specification data - Road lighting luminaires
Product Reference

GE-LA-00001

Disc 400 Lantern 35 W HCI-T Mini Asymmetric no PEC.

GE-LA-00002

Disc 400 Lantern 35 W HCI-T Mini Sym no PEC.

GE-LA-00003

Disc 400 Lantern 70 W HCI-T Mini Asymmetric no PEC.

GE-LA-00004

Disc 400 Lantern 70 W HCI-T Mini Sym no PEC.

GE-LA-00005

Disc 400 Lantern 150 W HCI-T Mini Asymmetric no PEC.

GE-LA-00006

Disc 400 Lantern 150 W HCI-T Mini Sym no PEC.

GE-LA-00103

Disc 400 70 W HIT G12 Asymmetric Std Gear Inc Cap.

GE-LA-00181

Disc 400 70 W HIT G12 Asymmetric Std Gear 42 mm.

Standard product features

Body material:

Aluminium.

Colour:

RAL 9006.

Lamp:

CDM-T Compact ceramic metal halide.

Lamp arrangement:

Perpendicular to road.

Lens/ Reflector:

High purity aluminium.

Protector:

Flat, glass.

Control gear type:

Electromagnetic.

Electrical:

230 V, 50 Hz.

Ingress Protection:

IP66.
