Ideal for safety railing, industrial guard rails, adjustable ramp handrails, roof edge protection, standing-seam roof edge protection, access walkways, mezzanine floors and ventilation grilles.
Industrial handrails and balustrade is designed for endurance in the most demanding environments, from the atmospheric conditions of factories, chemical plants and water treatment works to the harsh exposure of lighthouses and rooftops.
Genesis balustrade features environmentally friendly design with modular construction that minimises noise, waste and energy consumption. Along with being a third of the weight of steel for easy installation and manoeuvring, the aluminium is DDA compliant, corrosion-free and fully recyclable with a high residual value.
Balustrades and handrails are available mill finished and with powder coated handrail options for visual contrast. Components are designed for ease of assembly utilizing mechanical fasteners with smooth top handrail connections to provide tactile comfort. Optional kicking plates and fixings are available.
Features and benefits:
Applications:
Ideal for safety railing, industrial guard rails, adjustable ramp handrails, roof edge protection, standing-seam roof edge protection, access walkways, mezzanine floors and ventilation grilles.
Material | Aluminium alloy extrusion to BS EN 755-9 and aluminium LM6 pressure die castings |
Uniclass 2015 | |
CAWS | L30/55 Proprietary balustrades L30/560 Proprietary balustrades |

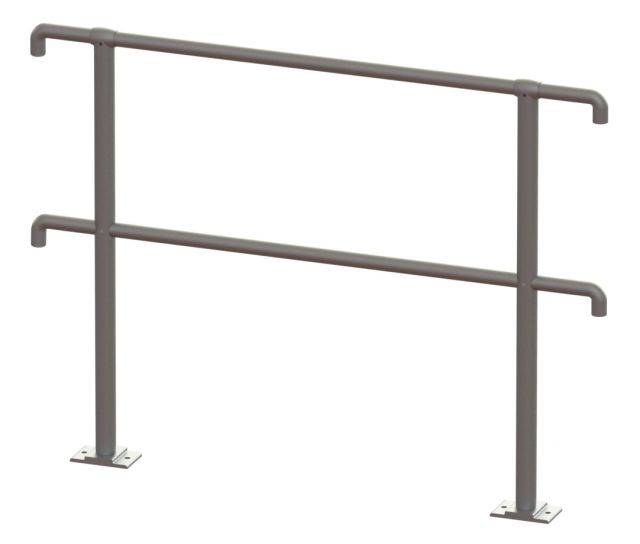

Product Reference | Genesis Industrial Balustrade |
Loading requirement | 0.36 kN/m0.74 kN/m |
Handrail finish/ colour | MillAluminium (50)Black (89)Blue (83)Bronze (76)Burgundy (81)Champagne (70)Chromium (78)Dark Silver (56)Graphite (77)Green (85)Red (80)Yellow (87) |
Infill | GrillSpecial orderInsert requirement. |
Accessories | NoneKick platesStructural fixings |
Standard product features | Material: Aluminium alloy extrusion to BS EN 755-9 and aluminium LM6 pressure die castings. Top rail size: 38 mm diameter tube with 3.25 mm thick wall. Stanchions:
|
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | - | 1.0 | |
![]() | - | 1.0 | |
![]() | Revit 2016 | 5 | 2.0 |
![]() | IFC2X3 | 4 | 1.3 |
![]() | IFC2X3 | 4 | 1.3 |
