Geberit Varino floor drain, vertical, d50 - Floor Drain
Verified by manufacturer 7 days ago

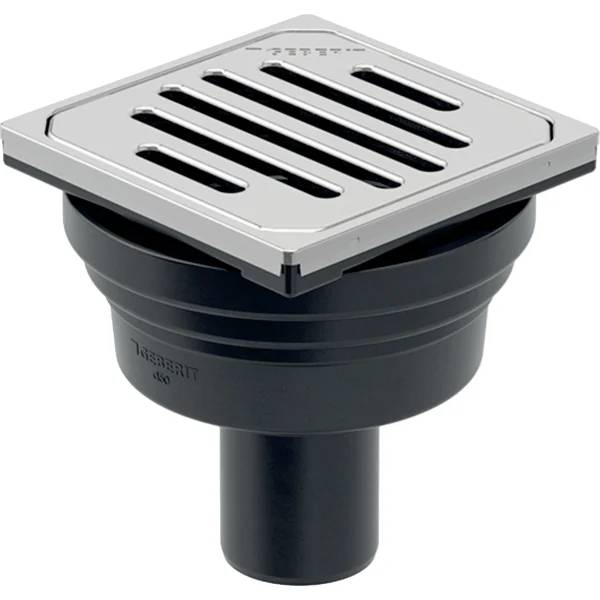

Geberit Varino floor drain, vertical.
Application
- For balconies and patios.
- For the outdoor area.
- For use as floor drain with vertical outlet.
Description
Geberit Varino floor drain, vertical, d50: d=50mm. DN50. Discharge rate: 2 l/s.
Features and benefits:
- Height-adjustable with extension piece.
- Not trapped.
- Shockproof.
- Resistant to chemicals.
- Load-bearing capacity, class K 3 (3 kN).
Included in the kit:
- Outlet made of PE-HD, ø 50 mm.
- Stainless steel grating.
- Protection box.
General information
Color | Grey Black |
Material | Polyethylene Stainless steel |
Shape | Square |
Width | 130 mm |
Height | 146 mm 196 mm |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
SKU Code | 388.033.00.1 |
Specification data - Floor gullies
Classification data | |
Properties | |
Body | |
Material | PE. |
Cover or grating | |
Cover or grating type | Slotted grating. |
Material | Stainless steel. |
Finish | Matt. |
Outlet | Vertical two-part adjustable. |
Load class (minimum) | Class K 3 (3 kN). |
Integral accessories | Geberit lockable grating for floor drains 13 x 13 cm. Geberit extension piece for floor drains 13 x 13 cm. Geberit flange for floor drains 13 x 13 cm. Geberit pressing flange attachment for floor drains 13 x 13 cm. Geberit hair trap for Varino floor drain 13 x 13 cm and Varino floor drain 13 x 13 cm. Geberit insert with odour trap, for floor drain 13 x 13 cm. Geberit trap insert with depth of water seal 27 mm, for Varino floor drain 13 x 13 cm. Geberit slotted grating for Varino floor drain 13 x 13 cm, drivable. |
DischargeFlowRate | Discharge rate with trap insert 0.65 l/s. |
Sustainability data
Material | Polyethylene Stainless steel |
