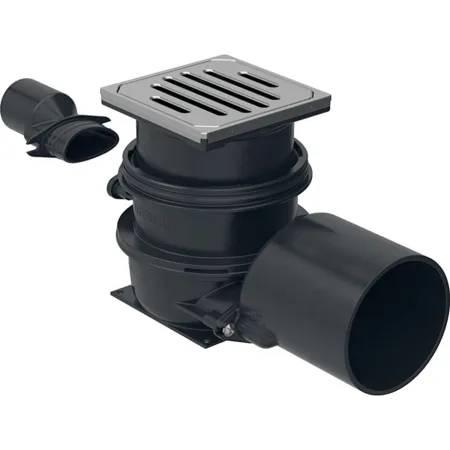

Geberit Varino floor drain, horizontal, d110 - Floor Drain

Verified by manufacturer 2 days ago

Geberit Sales Ltd

Geberit Varino floor drain, horizontal.

Jump to:
+44 (0)1926 516800 Website

Application

  • For connecting sanitary appliances.
  • For use inside buildings.
  • For use as floor drain with vertical outlet.

Description

Geberit Varino floor drain, horizontal, d110: d=110 mm, d1=50 mm.

Features and benefits:

  • Quality-monitored in accordance with EN 1253-3.
  • Inlet rotatable by 280°.
  • Inlet closed.
  • Inlet for connecting one sanitary appliance.
  • Height-adjustable with extension piece.
  • Trap insert can be removed without tools.
  • Shockproof.
  • Resistant to chemicals.
  • Inlet capacity 0.8 L/s.
  • Depth of water seal 50 mm.

Included in the kit:

  • Inlet connection piece made of PE-HD, ø 50 mm.
  • Outlet made of PE-HD, ø 110 mm.
  • Stainless steel grating.
  • Trap insert.
  • Protection box.

General information

Color

Grey

Material

Polyethylene

Stainless steel

Shape

Square

Length

295 mm

Width

130 mm

Height

146 mm

193 mm

Uniclass

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/5 Floor drains

R11/315 Floor drains

SKU Code

388.021.00.1

Specification data - Floor gullies

Properties

-

Body

-

Material

PE.

Cover or grating

-

Cover or grating type

Slotted grating.

Material

Stainless steel.

Finish

Matt.

Outlet

Horizontal two-part adjustable.

Load class (minimum)

Class K 3 (3 kN).

DischargeFlowRate

Discharge rate at 20 mm head of water: 1.4 L/s.
Discharge rate at 10 mm head of water: 0.8 L/s.

Sustainability data

Material

Polyethylene
Stainless steel
