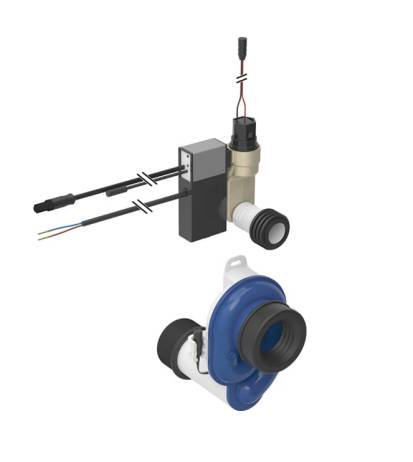

Geberit urinal flush control with electronic flush actuation, mains operation, surface mounted, hidden - Urinal Flush Control

Name: Geberit urinal flush control with electronic flush actuation, mains operation, surface mounted, hidden - Urinal Flush Control
Brand: Geberit Sales Ltd
SKU: x8eiuQ9GGUV7xUmapQNDY7

Verified by manufacturer 26 days ago

Geberit Sales Ltd

Geberit urinal flush control with electronic flush actuation.

Jump to:

Request BIM

+44 (0)1926 516800 Website

Application

For automatic flush actuation of urinals.
For hidden flush actuation of urinals.
For installation behind the ceramic appliance.
For urinal installations with inlet from the rear and outlet to the rear.
For Geberit installation elements for urinal, for integrated urinal flush control or hidden exposed urinal flush control.

Description

Geberit urinal flush control with electronic flush actuation, mains operation, surface mounted, hidden.

Features and benefits:

Power supply via mains connection.
Integrated power supply unit with LED display.
Control with LED display.
Device settings and operation with mobile device via integrated Bluetooth® interface.
Compatible with Geberit Control ApP.
Function statistics available via Geberit Control App.
Flush time can be set.
Adjustable interval flush.
Dynamic flushing time adjustment.
Water-saving hybrid mode can be set.
Ready for operation upon connection to mains.
One-time flush after activation of the power supply.
Vandal-resistant.
Power failure control unit.
Valve-closing function when power fails.
Brightness sensor to deactivate the control when urinal is removed.

General information

Color	Blue Black White
Material	Brass Plastic
Shape	Other

Uniclass	Pr_75_50_46_31 Flush control devicesPrimary
CAWS	N13/15 Urinals and cisterns N13/315 Urinals and auto-flushing cisterns S90/690 Flush control devices

SKU Code	116.076.00.1

Specification data - Flush control devices

Classification data
Flush volume	0.23 L/s (calculated flow rate); 0.18 L/s (with flow limiter).
Flush rate	Flush time, adjustment range 1–15 s. Guidance for specification option: Flush time, factory setting 7 s.
Materials	-
Body	Brass/ plastic.
Finish and colour	Blue / black / white.
Operation	Electronic flush actuation.
Controller	Surface-mounted.
Protection	IPX4.
Nominal voltage	110–240 V AC.
Operating voltage	6.6 V DC.
Frequency	50–60 Hz.
Pressure	1–8 bar. Manufacturer guidance Flow pressure.
Operating temperature	30°C (maximum).
Accessories	Not required. Geberit Silent-PP bend.
