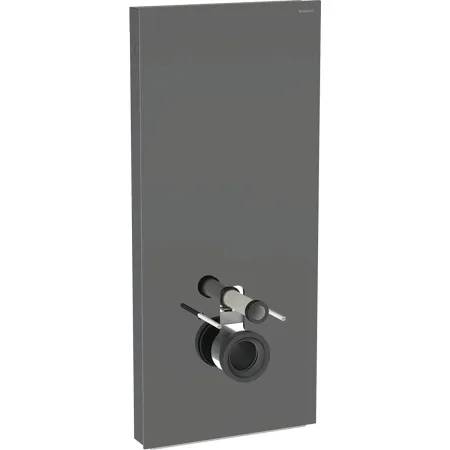

Geberit Monolith sanitary module for wall-hung WC, 114 cm, front cladding made of glass
Verified by manufacturer 2 days ago
Geberit Monolith sanitary module for wall-hung WC.
Application
- For renovations, conversions and new buildings.
- For wall inlets with inlet height of >23 cm.
- For replacing low-level exposed cisterns.
- For replacing half-high level exposed cisterns.
- For replacing wall-hung WCs with close-coupled exposed cistern.
- For replacing wall-hung WCs with pressure flushing valve.
- For replacing wall-hung WCs with concealed cistern with maximum service opening height <109 cm.
- For Geberit AquaClean WC complete solutions.
- For connecting Geberit AquaClean WC enhancement solutions, with accessories.
- For mounting on finished floors.
- For installation in front of drywalls or solid walls.
- For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs.
Description
Geberit Monolith sanitary module for wall-hung WC, 114 cm, front cladding made of glass.
Features and benefits:
- Dual flush.
- Compensation of dimensional tolerances possible.
- Height-adjustable up to 7 cm.
- Fastening height WC ceramic appliance 35 +/- 1 cm.
- Cistern, fully insulated against condensation.
- Side cladding made of aluminium.
- Self-supporting.
- Adjustable flush volume.
- Water supply connection on the rear centre.
- Water supply connection on the left/ right possible with accessories.
- Water supply connection on the bottom.
General information
Color | Beige Black Grey White Other |
Finish | Chrome Glazed Other |
Material | Metal Plastic Glass |
Shape | Rectangle |
Length | 106 mm |
Width | 505 mm |
Height | 1140 mm |
Uniclass | |
CAWS | N13/500 Pre-plumbed frame system N13/66 Pre-plumbed frame system |
SKU Code | 131.031.JK.5, 131.031.JL.5, 131.031.SI.5, 131.031.SJ.6 |
Specification data - Pre-plumbed installation frames
Classification data | |
Form | Support frames with cistern and connectors. |
Materials | 131.031.JK.5 - Lava glass with black chrome aluminium side cladding. 131.031.JL.5 - Sand grey glass with aluminium side cladding. 131.031.SI.5 - White glass with aluminium side cladding. 131.031.SJ.6 - Black glass with black chrome aluminium side cladding. |
Size | 1140 x 505 x 106 mm. Manufacturer guidanceHeight x width x depth. |
Accessories | Not required. Geberit straight connector set for wall-hung WC, stepped by 3 cm. Geberit straight connector set for wall-hung WC, stepped by 5 cm. Geberit straight connector set for wall-hung WC, stepped by 7 cm. Set of fixing bolts made of aluminium, for Geberit Monolith side cladding. Lateral water supply connection set for Geberit Monolith sanitary module for WC. Conversion set for Geberit AquaClean WC enhancement solutions. |
Pressure | 0.1–10 bar. Guidance for specification option: Minimum flow pressure: 0.5 bar. Manufacturer guidanceFlow pressure. |
Operating temperature | 25°C (maximum). Manufacturer guidanceWater. |
Flush volume | 6 L. Guidance for specification option:
|
Flow rate | 9.6 L/min. Guidance for specification option: Calculated flow rate: 0.11 L/s. Manufacturer guidanceAt 3 bar. |
Integral accessories | Water supply connection set with 2 angle stop valves, 1/2". Flush bend extension 160 mm. Sleeve made of EPDM, ø 44 / 55 mm. Straight connector made of PE-HD, ø 90 mm. Adaptor socket made of PE-HD, ø 90 / 110 mm. Two threaded rods, M12. Sound insulation set. Base cover. Fastening material for drywall. Fastening material. Fastening material for installation in front of concealed cisterns. |
Sustainability data
Material | Metal Plastic Glass |
