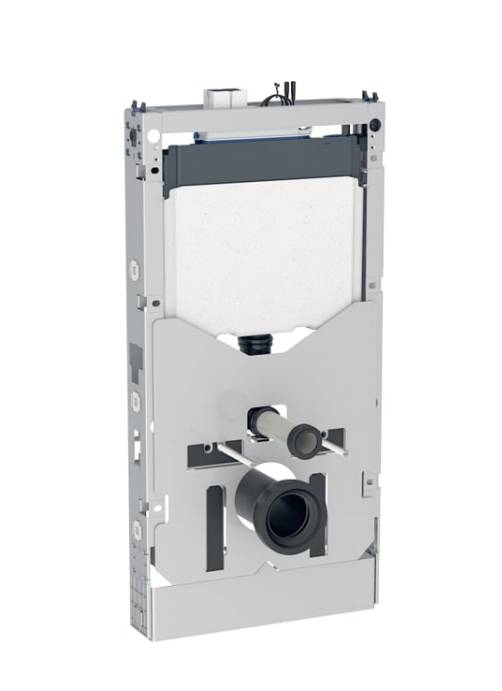

Geberit Monolith Plus sanitary module for wall-hung WC, 101 cm, customer-specific
Verified by manufacturer 3 days ago
Geberit Monolith Plus sanitary module for wall-hung WC.
Application
- For renovations, conversions and new buildings.
- For wall inlets with inlet height >23 cm.
- For replacing low-level exposed cisterns.
- For replacing wall-hung WCs with close-coupled exposed cistern.
- For Geberit AquaClean WC complete solutions.
- For connecting Geberit AquaClean WC enhancement solutions, with accessories.
- For mounting on finished floors.
- For installation in front of drywalls or solid walls.
- For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs.
Description
Geberit Monolith Plus sanitary module for wall-hung WC, 101 cm hight with customized surface finish.
Features and benefits:
- Dual flush.
- Odour extraction with ceramic honey comb filter can be activated.
- Odour extraction unit with run-on function.
- Ceramic honeycomb filter for odour neutralisation can be replaced without tools.
- Operation with extra-low voltage, no mains voltage in cistern.
- Mains connection with flexible three-core sheathed cable.
- Water supply connection on the bottom.
- Water supply connection on the left/right possible with accessories.
- Compensation of dimensional tolerances possible.
- Height-adjustable up to 7 cm.
- Fastening height WC ceramic appliance 35 ± 1 cm.
- Cistern, fully insulated against condensation.
- Side cladding made of aluminium brushed.
- Self-supporting.
General information
Color | Other |
Finish | Other |
Material | Metal Plastic |
Shape | Rectangle |
Length | 106 mm |
Width | 480 mm |
Height | 1010 mm |
Uniclass | |
CAWS | N13/500 Pre-plumbed frame system N13/66 Pre-plumbed frame system |
SKU Code | 131.186.00.7 |
Specification data - Pre-plumbed installation frames
Form | Support frames with cistern and branch discharge pipe connectors. |
Materials | Metal. |
Size | 1010 x 480 x 106 mm. Manufacturer guidanceHeight x width x depth. |
Accessories | Not required. Geberit straight connector set for wall-hung WC, stepped by 3 cm. Geberit straight connector set for wall-hung WC, stepped by 5 cm. Geberit straight connector set for wall-hung WC, stepped by 7 cm. 118.003.11.1 - Geberit flush bend 90° - low-level: d=50 mm, X=23 cm, X1=23 cm. 118.006.11.1 - Geberit flush bend 90°- low-level: d=50 mm, X=39 cm, X1=35 cm. |
Pressure | 0.1–10 bar. Manufacturer guidanceFlow pressure. |
Operating temperature | 25°C (maximum). Manufacturer guidanceWater. |
Flush volume | 6 L. Guidance for specification option:
Manufacturer guidanceMaximum. |
Flow rate | 9.6 L/min. Manufacturer guidanceAt 3 bar. |
Protection | IPX4. |
Nominal voltage | 100–240 V AC. |
Operating voltage | 12 V DC. |
Frequency | 50–60 Hz. |
Power consumption | 15 W. Guidance for specification option: Power consumption standby maximum: 0.5 W. |
Sustainability data
Material | Metal Plastic |
