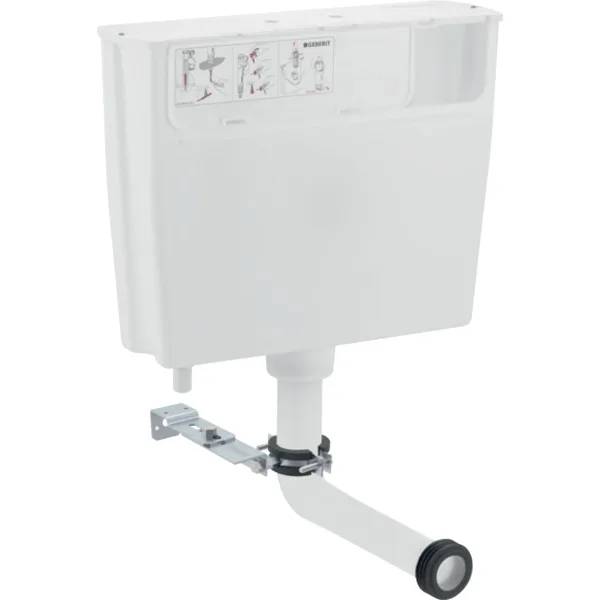

Geberit low-height concealed cistern, 6 / 3 litres, pneumatic flush actuation - Low-Height Concealed Cistern
Verified by manufacturer 4 days ago
Low-height concealed cistern, 6 / 3 litres, pneumatic flush actuation.
Application
- For drywall construction.
- For installation in bathroom furniture.
- For installation in part-height prewall installations.
- For low level installation.
- For floor-standing WCs.
- Not suitable for Geberit AquaClean Alba or AquaClean Sela.
Description
Low-height concealed cistern, 6 / 3 litres, pneumatic flush actuation.
Features and benefits:
- Flush actuation pneumatic.
- Flush pipe connection with compression joint.
- Cistern fulfils standard requirements in accordance with EN 14055, Class II.
- Water supply connection on the bottom left.
- Water supply connection ½”.
General information
Color | White |
Finish | Smooth |
Material | Plastic |
Shape | Rectangle |
Length | 132 mm Guidance for specification option: Excluding connections. |
Width | 464 mm Guidance for specification option: Excluding connections. |
Height | 355 mm Guidance for specification option: Excluding connections. |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
SKU Code | 109.721.00.2 |
Specification data - WC cisterns
Standard | To BS EN 14055, Class 2. |
Form | Concealed. |
Operation | Pneumatic flush actuation. |
Materials | |
Body | Plastics. |
Finish and colour | White. |
Capacity | 6/3 L. Guidance for specification option: Flush volume, factory setting: 5.8 L. |
Water supply, overflow and outlet holes | |
Water supply | Bottom left inlet. Guidance for specification option: ½". |
Overflow | None (internal). |
Outlet | Bottom outlet. |
Integral accessories | Flush bend 90°. Fastening material for flush pipe. Cup for flush volume reduction 4.0/ 2.6 L. Fastening material. |
Pressure | Flow pressure: 0.1–10 bar. |
Operating temperature | Water, maximum: 25°C. |
Accessories | None. Geberit damming device (240.476.00.1). Guidance for specification option: For concealed cisterns (from year of manufacture 1998). Optimises the flushing process |
Sustainability data
Material | Plastic |
