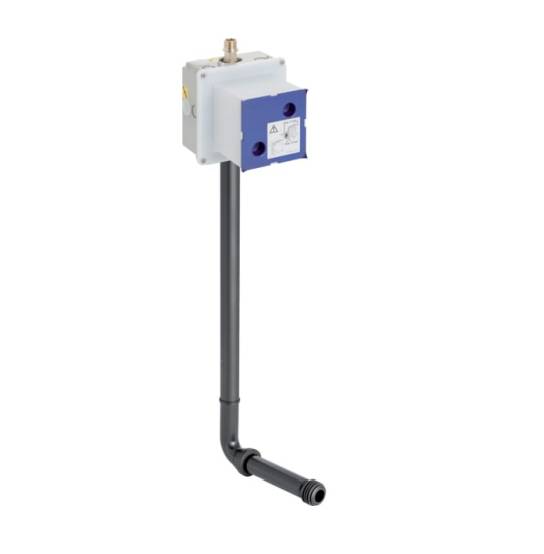

Geberit installation set with flush pipe, for urinal flush control, universal
Verified by manufacturer 2 days ago
Geberit installation set with flush pipe.
Application
- For concealed installation in solid construction.
- For receiving Geberit urinal flush controls (from year of manufacture 2009).
Description
Geberit installation set with flush pipe, for urinal flush control, universal.
Features and benefits:
- Water supply connection on the top centre.
- Pre-mounted conduit pipe for rinsing pipeline.
- With nipple made of plastic.
- Pre-mounted stop valve with throttle.
- Electrical connection prepared.
- Protection cover box for service opening protects against moisture and dirt.
- Protection box for service opening can be cut to length without tools.
General information
Color | White Blue Black |
Material | Plastic Polyethylene |
Shape | Other |
Uniclass | |
CAWS | S90/690 Flush control devices N13/316 Urinals and flushing valves N13/15 Urinals and cisterns N13/315 Urinals and auto-flushing cisterns |
SKU Code | 116.003.00.1 |
Specification data - Urinal flush pipes
Form | Concealed flush pipe. |
Materials | |
Body | Plastics. |
Finish and colour | Black. |
Integral accessories | Protection box with cover. Water supply connection R 1/2". Concealed housing. Stop valve with throttle. Conduit pipe. Terminal. Flush pipe made of PE-HD, ø32 mm. |
Pressure | 1–8 bar. Manufacturer guidanceFlow pressure. Test pressure, water maximum: 16 bar. |
Operating temperature | 30°C (maximum). Manufacturer guidanceWater. |
Flow rate | 0.3 L/s (without flow limiter); 0.24 L/s (with flow limiter). Manufacturer guidanceAt 1 bar. |
Sustainability data
Material | Plastic Polyethylene |
