Geberit electronic WC flush control, mains operation, for Sigma concealed cistern 12 cm, with Type 10 RF-controlled button, round
Verified by manufacturer 7 days ago
Black matt - 115.936.14.6
Black matt - 115.936.14.6
Electronic WC flush control.
Application
- For manual remote flush actuation of Sigma concealed cisterns 12 cm using a touchless IR button.
- For releasing a dual flush.
- For installation in solid and drywall constructions with flush mounting box.
- For installation in bathroom furniture with counternut.
- Suitable for less-abled installation.
- For Sigma concealed cisterns 12 cm.
Description

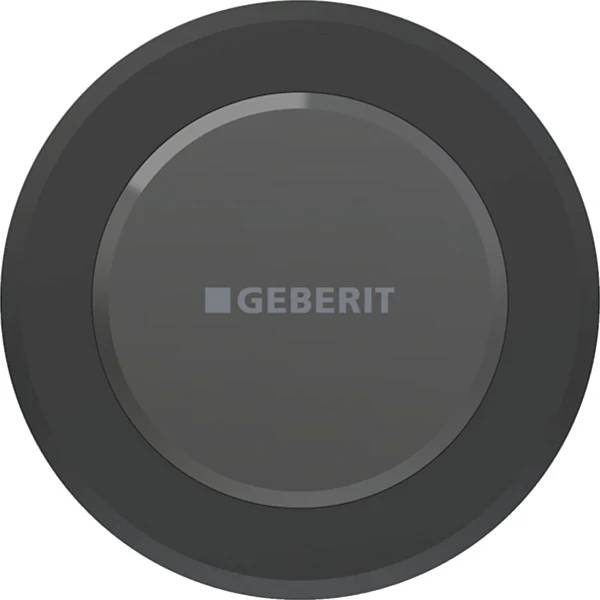

Electronic WC flush control, mains operation, for Sigma concealed cistern 12 cm, with Type 10 round RF-controlled button.
Features and benefits:
- Touchless manual flush actuation.
- Touchless flush actuation for single or dual flush by moving hand toward sensor.
- Single or dual flush can be triggered via flush plate.
- Can be combined with Sigma01 to Sigma70 actuator plates or Geberit cover plates.
- Power supply via external power supply unit.
- Transformation of mains voltage to extra-low voltage, 12 V DC.
- Operation with extra-low voltage, no mains voltage in cistern.
- With push-fit connection with cross-polarity protection.
- Interval flush pre-set.
- Adjustable interval flush.
- Device settings and operation with mobile device via integrated Bluetooth® interface.
- Compatible with Geberit Control App.
- Wired networkable with Geberit gateway via GEBUS converter.
- Wirelessly connectable with Geberit Gateway via Bluetooth®.
- Compatible with Geberit Connect.
- Low-noise lifting mechanism.
- Electrical lifting device, self-calibrating.

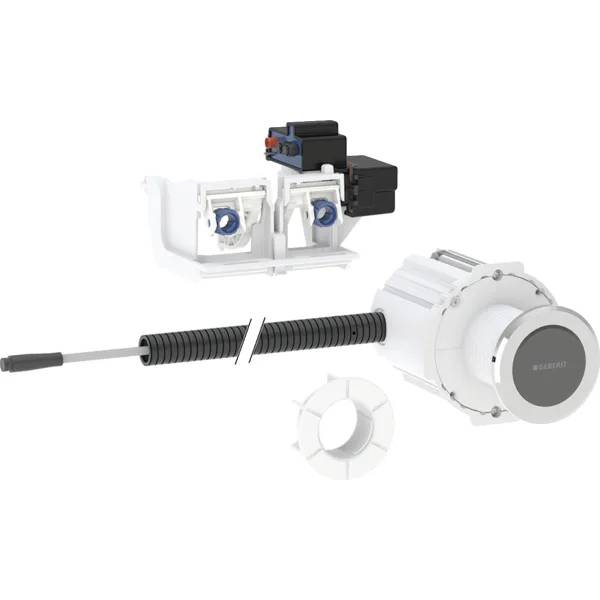

Supplied:
- Infrared button with 2 m connection cable.
- Flush-mounting box.
- Counternut.
- Conduit pipe, length 1.7 m.
- Support block with servomotor and lifting device, pre-mounted.
- Electrical control.
General information
Color | Black Silver |
Finish | Matt Brushed |
Material | Stainless steel Brass |
Shape | Circle |
Length | 5 mm |
Width | 6 mm |
Height | 6 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns S90/690 Flush control devices |
SKU Code | 115.936.14.6, 115.936.SN.6 |
Specification data - Flush control devices
Flush rate | Interval flush, adjustment range: 1–168 h. Interval flush, factory setting: 24 h. Interval flush time, adjustment range: 1–200 s. Interval flush time, factory setting: 5 s. |
Materials | |
Body | Brass. |
Finish and colour | Black matt. |
Operation | Type 10 RF-controlled button, round. |
Controller | Mains-operated. |
Protection class | IP45. |
Nominal voltage | 85–240 V a.c. |
Operating voltage | 12 V d.c. |
Frequency | Mains frequency: 50–60 Hz. |
Power consumption | ≤4 W. Guidance for specification option: Power consumption standby: 0.15 W. |
Accessories | Not required. Actuator plate. Cover plate. Geberit power and connect box. Geberit power supply unit for power and connect box. |
Sustainability data
Material | Stainless steel Brass |
