Geberit electronic WC flush control, mains operation, for Sigma concealed cistern 12 cm, for RF-controlled button
Verified by manufacturer 6 days ago
Electronic WC flush control.
Application
- For manual remote flush actuation of Sigma concealed cisterns 12 cm using pull-down rails with RF-controlled button.
- For manual remote flush actuation of Sigma concealed cisterns 12 cm using Geberit RF-controlled button.
- For releasing a single or dual flush.
- For solid and drywall construction.
- Suitable for less-abled installation.
- For Sigma concealed cisterns 12 cm.
- Not suitable for use with Geberit inserts for in-cistern block.
Description
Electronic WC flush control, mains operation, for Sigma concealed cistern 12 cm, for RF-controlled button.
Features and benefits:
- Flush actuation using pull-down rail, wireless, radio.
- Flush actuation via Geberit RF-controlled button, wireless.
- Dual flush can be triggered via RF-controlled button.
- Single or dual flush can be triggered via flush plate.
- Can be combined with Sigma01 to Sigma70 actuator plates or Geberit cover plates.
- Power supply via external power supply unit.
- Transformation of mains voltage to extra-low voltage, 12 V DC.
- Operation with extra-low voltage, no mains voltage in cistern.
- With push-fit connection with cross-polarity protection.
- Interval flush pre-set.
- Adjustable interval flush.
- Device settings and operation with mobile device via integrated Bluetooth® interface.
- Compatible with Geberit Control App.
- Wired networkable with Geberit gateway via GEBUS converter.
- Wirelessly connectable with Geberit Gateway via Bluetooth®.
- Compatible with Geberit Connect.
- Low-noise lifting mechanism.
- Electrical lifting device, self-calibrating.
Supplied:

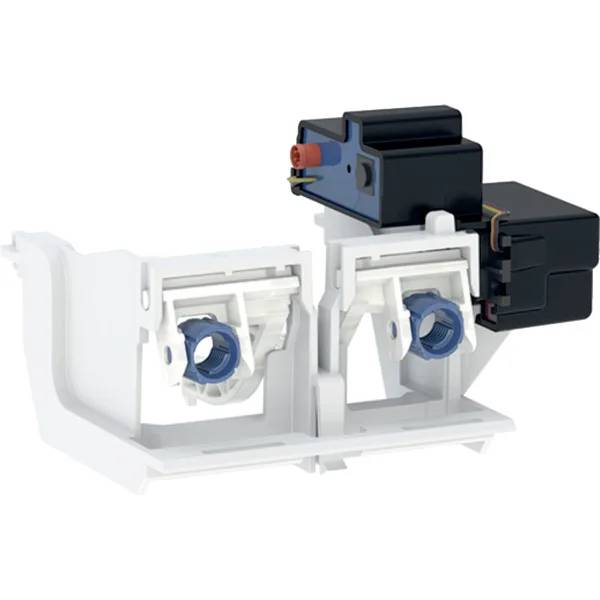

- Support block with servomotor and lifting device, pre-mounted.
- Control electronics with radio receiver.
General information
Color | Blue Black White |
Material | Plastic |
Shape | Other |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns S90/690 Flush control devices |
SKU Code | 115.897.00.6 |
Specification data - Flush control devices
Flush rate | Interval flush, adjustment range: 1–168 h. Interval flush, factory setting: 24 h. Interval flush time, adjustment range: 1–200 s. Interval flush time, factory setting: 5 s. |
Materials | |
Body | Plastic. |
Operation | RF-controlled button. |
Controller | Mains-operated. |
Protection class | IP45. |
Nominal voltage | 85–240 V a.c. |
Operating voltage | 12 V d.c. |
Frequency | Mains frequency: 50–60 Hz. |
Power consumption | ≤4 W. Guidance for specification option: Power consumption standby: 0.15 W. |
Accessories | Not required. Geberit RF-controlled button for electronic flush actuation. Actuator plate. Cover plate. RF-controlled button. |
Sustainability data
Material | Plastic |
