Geberit Duofresh Module With Automatic Actuation, For Sigma Concealed Cistern 8 cm
Verified by manufacturer 3 months ago
Geberit DuoFresh module with automatic actuation, for Sigma concealed cistern 8 cm.
Application
- For Sigma concealed cisterns 8 cm.
- For direct odour extraction from WC ceramic appliances.
- For Sigma01 flush plates.
- For Sigma10 flush plates.
- For Sigma20 flush plates.
- For Sigma21 flush plates.
- For Sigma30 flush plates.
- For Sigma50 flush plates.
- Not suitable for Geberit Duofix elements for wall-hung WC, corner construction.
Description
Geberit DuoFresh module with automatic actuation, for Sigma concealed cistern 8 cm.
Features and benefits:
- Front actuation.
- Odour extraction unit with filtration, integrated in the concealed cistern.
- Extraction unit can be mounted without tools.
- Compatible with Geberit Home App.
- Odour extraction unit with user recognition can be activated.
- Odour neutralisation with ceramic honeycomb filter.
- Ceramic honeycomb filter for odour neutralisation can be replaced without tools.
- Activation of the orientation light via brightness sensor.
- Geberit 230 V / 12 V / 50 Hz power supply unit set with 1.8 m voltage supply cable for outlet mounting box (specified separately).

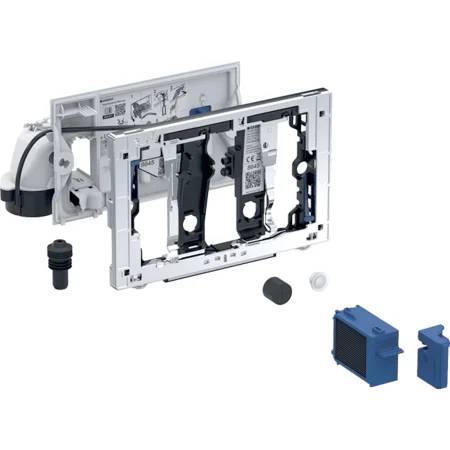

Supplied:
- Mounting frame with swivelling mechanism.
- Protection plate.
- Extraction unit with centrifugal fan.
- Ceramic honeycomb filter.
- Plug for conduit pipe.
General information
Color | Silver Grey |
Shape | Rectangle |
Length | 263 mm |
Width | 170 mm |
Height | 128 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/10 WC pans and flushing arrangements S90/690 Flush control devices N13/300 WCs and cisterns |
SKU Code | 115.981.21.2, 115.981.BZ.2 |
Specification data - Flush control devices
Materials | |
Finish and colour | 115.981.21.2 gloss chrome-plated. 115.981.BZ.2 anthracite RAL 7016. |
Accessories | Geberit combination outlet mounting box. Installation set with flush-mounting box, for Geberit DuoFresh module. Insert with ceramic honeycomb filter, for Geberit DuoFresh module. |
Ingress protection | IPX4. |
Operating voltage | 12 V.d.c. |
Power consumption | 7 W. Standby: 0.5 W. |
Protection class | III. |
