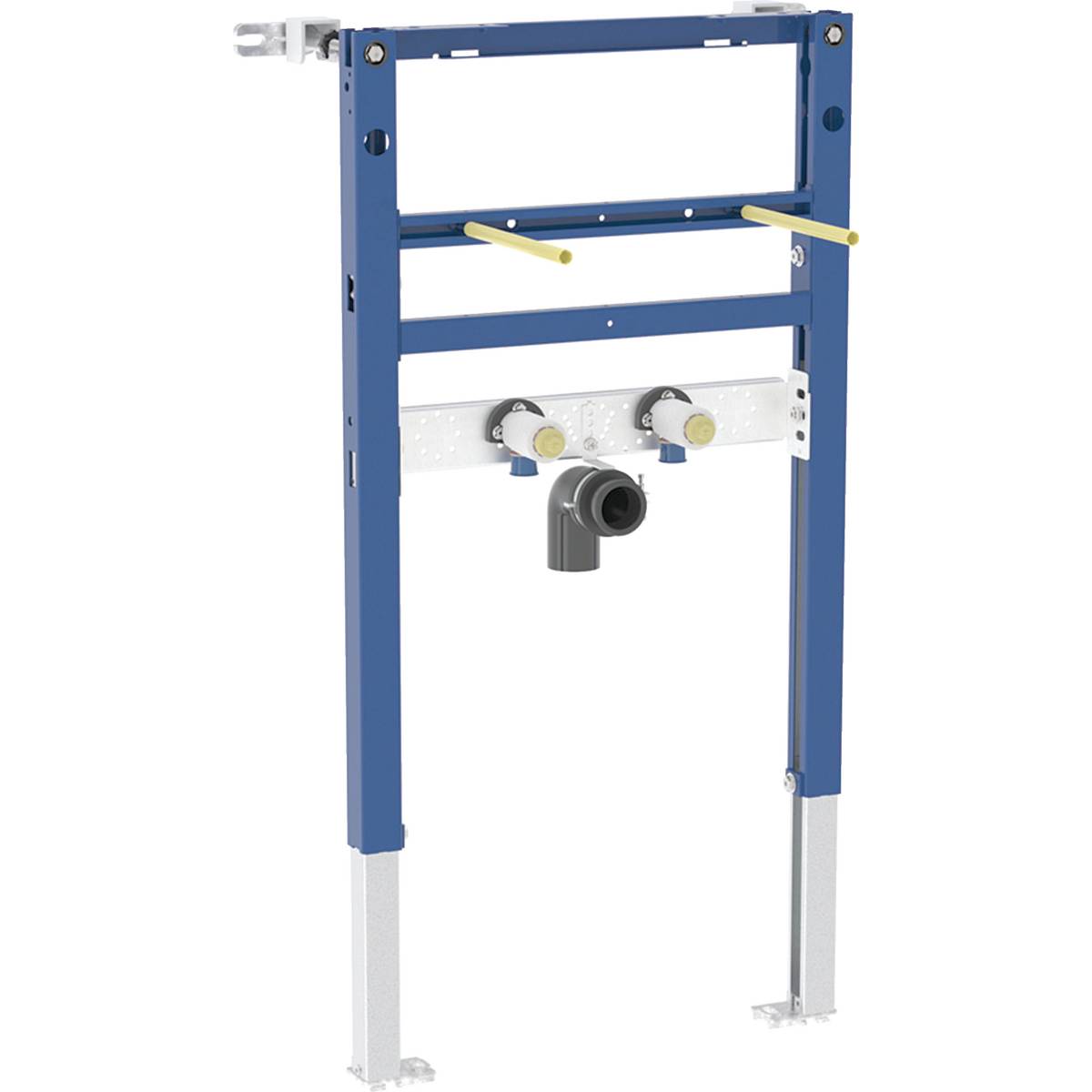

Geberit Duofix element for washbasin, 82–98 cm, deck-mounted tap, wall anchoring - Pre-Plumbed Installation Frame
Verified by manufacturer 3 days ago
Geberit Duofix element for washbasins.
Application
- For metal and wood frames walls.
- For Geberit Duofix systems walls.
- For installation in part-height prewalls.
- For floor constructions 0–250 mm.
- For installation of washbasins.
- For deck-mounted taps.
Description
Geberit Duofix element for washbasin, 82–98 cm, deck-mounted tap, wall anchoring.
Features and benefits:
- Statically self-supporting frame, protected against corrosion with powder coating.
- Alternative fastening point for wall anchors.
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75.
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
- Galvanized non-slip leg supports protected against corrosion.
- Fastening distance for washbasin 5–38 cm.
- Threaded rods adjustable in depth with 18 or 28 cm fastening distance.
- Fastening for connection bend, height-adjustable and sound absorbing.
- Crossbar for tap adjustable in height and depth.
- Self-adhesive sealing washer, fleece-laminated.
- Protection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa.
Included in the kit:
- Two angle stop valves 1/2".
- Two elbow tap connectors Rp 1/2" / R 1/2", compatible with MF.
- Two sealing washers.
- Two wall anchors.
- Fastening and protection material.
General information
Color | Blue |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | 500 mm |
Width | 60 mm |
Height | 820 mm 980 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.494.00.2 |
Specification data - Pre-plumbed installation frames
Form | Support frames. |
Materials | Galvanized steel. |
Size | 60 x 500 x 820–980 mm. |
Accessories | Geberit Duofix set of wall anchors for single installation, corner construction. Geberit Duofix set of wall anchor extensions. Geberit Duofix system fastening bracket. Geberit Duofix set of foot fastener on rear wall. Geberit Duofix set of foot extensions 20 cm length. Geberit Duofix fastening for washbasins with fastening distance 38–58 cm. Geberit sound insulation set for washbasin. |
Sustainability data
Material | Steel |
