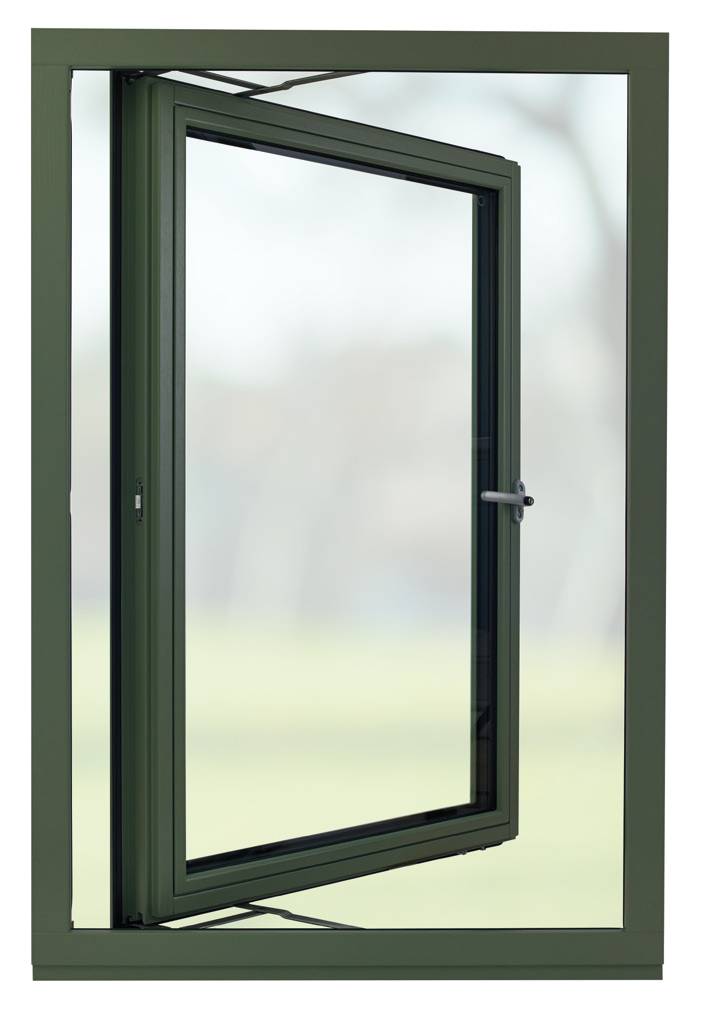

GBS98 Triple Glazed Timber Outward Opening Window

Name: GBS98 Triple Glazed Timber Outward Opening Window
Brand: 21 Degrees
SKU: ppaBzQMxowXzUMfzLyL1nJ

Verified by manufacturer 2 months ago

GBS-98 - Top Hung

21 Degrees

Third party certifications:

FSC
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
PAS 24
Certificate type
Secured By Design
Certificate type

Triple glazed timber outward opening windows with 98 mm sash/ frame depth.

Jump to:

BOS

+44 (0)1484 461705 Website

Application

Cost-effective solution for retrofits and low-energy new build projects including Passivhaus and EnerPHit.

Description

Triple glazed timber window, outward opening.

A suitable choice for low-energy projects, whether simply replacing windows or specifying for a new home. GBS-98 is a cost-effective solution for retrofits and low-energy new build projects. With a choice of designs and styles, this range will enhance any project at a competitive price.

The number 98 refers to the depth of the window frame.

Features and benefits:

U value: 0.73 W/m²K.
Aluminium clad windows available (specified separately).
Dual compression seals for long term airtightness.
Maximum sash size of 886 x 1659 mm (side hung) or 1245 x 1578 mm (top hung).
UKCA marked.
All windows have integral draught seal(s) all round.
All windows carry Forest Stewardship Council Chain of Custody certification.
Manufactured under independent UKAS approved third party certification.
PAS24 certified.
Secured by Design option.
Triple unit: Argon fill 56 mm.
Light transmission value: 73%.
Triple glazed as standard.
Can be hung from the top or side.

General information

Color	Clear Beige Blue Bronze Brown Copper Black Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more
Finish	Satin Painted Stained Other
Material	Timber Composite
Shape	Rectangle Square Circle Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_98_96 Wood window unitsPrimary
CAWS	L10/10 Wood windows L10/210 Wood windows

Specification data - Wood window units

Third-party certification	Third-party-accredited by UKAS-approved or recognized body.
Dimensions and configurations	- Manufacturer guidance Consult manufacturer for details and insert requirements. Maximum sash size of 1245 x 1578 mm (top hung).
Product performance	-
Weather performance	-
UK exposure category	To BS 6375-1, 2000+ Pa.
Air permeability	To BS 6375-1, Class 4.
Watertightness	To BS 6375-1, Class 9A.
Resistance to wind load	To BS 6375-1, Class E2400.
Durability	-
Operation and strength characteristics	To BS 6375-2.
Loadbearing capacity of safety devices	Pass; 350 N when fitted.
Safety	-
Security level	High security (Secured by Design). Standard. Guidance for specification option: Standard configuration 4E-22A-4-22A-E4 (E – low E coating; A – Argon 90%).
Thermal	-
Whole window U-value	0.73 W/m²K.
Frame	-
Profile	66 mm. Guidance for specification option: Standard. 50 mm. Guidance for specification option: Optional. 74 mm. Guidance for specification option: Optional.
Wood species	Redwood/ composite.
Chain of custody	FSC.
Finish as delivered	Full factory treatment and finish from Remmers Baustofftechnik. Manufacturer guidance Specify interior and exterior finishes separately below.
Ventilator	Not required. Aluminium, 4000 mm² EA. Guidance for specification option: Insert RAL colour requirement. Aluminium, 5000 mm² EA. Guidance for specification option: Insert RAL colour requirement. Aluminium, 8000 mm² EA. Guidance for specification option: Insert RAL colour requirement. Manufacturer guidance Trickle vents.
Glazing or infill	-
Standard	Relevant parts of BS EN 1279.
Requirements	Triple glazed, 56 mm - Standard. Triple glazed, 56 mm - Toughened. Triple glazed, 56 mm - Laminated (inner) (middle) (outer). Triple glazed, 56 mm - Toughened (inner) (middle) (outer). Triple glazed, 56 mm - Obscure, pattern. Triple glazed, 56 mm - Self-cleaning. Triple glazed, 56 mm - Solar control. Triple glazed, 56 mm - Acoustic. Manufacturer guidance 2 x soft coat low-E, Argon fill 90%. All glass shall be of the required specification to meet safety requirements in accordance with Building Regulations Approved Document K. All glass shall be suitable to meet anticipated wind loads according to BS6262-3:2005. All glass specified as a barrier or balustrade to protect from falls shall be in accordance with the requirements of Building Regulations Approved Document K and BS6180:2011. All glazing shall be with triple glazed, hermetically sealed units manufactured to BS EN 1279-5:2018 with soft coat low emissivity coatings (ε ≤ 0.05) at positions 2 & 5 as measured from the exterior, Argon fill 90% and warm edge spacers (Ψ ≤ 0.040 W/mK). U value of standard glazing shall be ≤ 0.60 W/m²K and g value ≥ 50%.
Hardware	Outward opening stainless steel friction stays; espagnolette locking system. Mila handles.
Operation	-
Type	Manual - top hung.

Air tightness	To BS EN 12207, Class 4 - 600 Pa.
Light transmission	73%.
Finish	Nature effect. Painted, RAL classic. Painted, RAL design. Painted, NCS1950. Painted, Farrow and Ball. Woodstain oak. Woodstain light oak. Woodstain teak. As exterior. Show more
External finish	Nature effect. Painted, RAL classic. Painted, RAL design. Painted, NCS1950. Painted, Farrow and Ball. Woodstain oak. Woodstain light oak. Woodstain teak. Show more
Depth	98 mm (frame and sash depth).
Frame height	116 mm (frame and sash - jambs and head).
Spacers	Swisspacer Ultimate warm edge, Black.
Gasket	Black.
Handles	Locking. Non-locking.
Handle colour	Matt chrome. Polished chrome. Gold. White. Black.
Glazing bars	Not required. Standard, with interstitial bars.
Windowboard groove	Required. Not required.
Accessories	Not required. Child safety restrictors. Remote opening system. Guidance for specification option: Insert requirements. Extension sill, Accoya. Guidance for specification option: Insert size requirement. Extension sill, aluminium (RAL). Guidance for specification option: Insert size (≤ 400 mm) and RAL requirement. Extension sill, stone bed connector (RAL). Guidance for specification option: Insert size and RAL requirement. Extension sill, aluminium Z45 (RAL). Guidance for specification option: Insert size and RAL requirement. Extension sill, aluminium Z60 (RAL). Guidance for specification option: Insert size and RAL requirement. Show more

Sustainability data

Country of material origin	Europe
Country of product manufacture	Europe
Material	Timber Composite

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

FSC

FSC Certificate

UK Conformity Assessed (UKCA)

UKCA Declaration of Conformity

PAS 24

Secured By Design

Literature

Windows brochure

Case studies

‘Woodlands’ Oak Frame Passivhaus B&B, Malvern
