Gator Butt Hinge (HUKP-0202-07) - Door hinge
Verified by manufacturer 28 days ago
Brass gator butt hinge
Application
Suitable for maximum door weight of 160 kg.
Description
Brass concealed bearing gator butt hinge 100 x 75 mm.
Features and benefits:
- Brass high performance decorative concealed bearing hinge.
- Decorative gator design on hinge leaves.
- Maximum load capacity 160 kg to EN Grade 14.
- Maintenance free triple knuckle bearings.
- Supplied complete with matching pozi/ slotted head woodscrews.
General information
Color | Grey Silver Gold Black |
Finish | Satin Guidance for specification option: Nickel and brass. Matt Guidance for specification option: Black. Polished Guidance for specification option: Chrome and brass. |
Material | Brass Steel |
Shape | Rectangle |
Length | 100 mm |
Width | 75 mm |
Height | 3.5 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L2/312 Hardware for main entrance doors L2/324 Hardware for internal doors L2/314 Hardware for secondary external doors P21/310 Single-axis door hinges P21/7 Single-axis door hinges |
SKU Code | HUKP-0202-07 |
Product range |
Specification data - Single axis door hinges
Classification data | |
Standard | To BS EN 1935. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Test door mass | 7. |
Suitability for use on fire and smoke doors | 0. |
Corrosion resistance | 4. Guidance for specification option: Salt spray tested to over 240 hours. |
Security, burglar resistance | 0. |
Hinge grade | 14. |
Form | Ball bearing butts. |
Size | 75 x 100 x 3.5 mm. |
Material and finish | Brass. |
Colour | IBMA. Satin nickel. Satin brass. Matt black PVD. Polished chrome. Polished brass. |
Sustainability data
Material | Brass Steel |
Literature
6. Project - Architectural Hinges
Similar products from Hafele UK Ltd
3 Knuckle Butt Hinge (HUKP-0102-01) - Single Axis Hinges
3 Knuckle Butt Hinge (HUKP-0102-02) - Single Axis Butt Hinges
3 Knuckle Butt Hinge (HUKP-0102-04) - Single Axis Butt Hinges
Butt Hinge CE EN14 (HUKP-0202-09) - Door hinge
Butt Hinge CE EN14 (HUKP-0202-10) - Door hinge

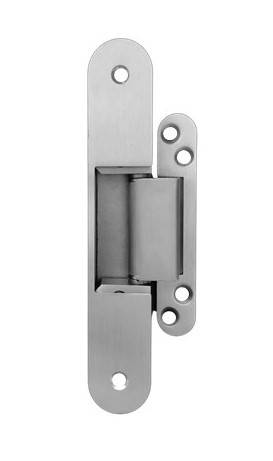

Projects 360° Concealed Hinge (HUKP-0302-03) - Door hinge
