Description

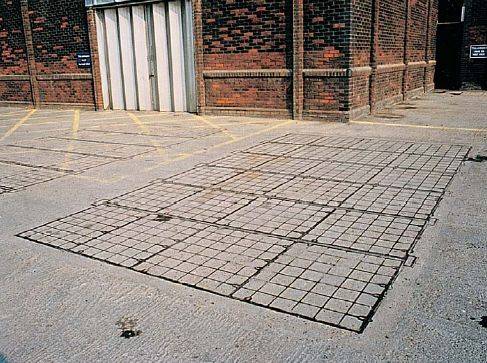

Multiple access covers and frames for use in the following areas, offering different loading groups.

General information
Material

Ductile Iron components to BS 2789 / ISO 1083

Steel components to BS EN 10083 / ISO 630

Uniclass 2015 Raised access floor panels (Pr_25_71_42_70)
Specification data
Product Reference

Gatic Multispan Covers and Frames

Loading

B125

3 tonne wheel load.

C250

5 tonne wheel load.

D400

11.5 tonne wheel load.

E600

20 tonne slow moving wheel load.

F900

Wheel loads in excess of 20 tonne.

Pit opening -
Length

1300 mm

1450 mm

1600 mm

1750 mm

1900 mm

2000 mm

2150 mm

2300 mm

2450 mm

2600 mm

2700 mm

2900 mm

3000 mm

3150 mm

3300 mm

3450 mm

3600 mm

3750 mm

3750 mm

Span

1380 mm

1530 mm

1680 mm

1830 mm

1980 mm

2160 mm

2310 mm

2460 mm

2610 mm

2760 mm

2910 mm

3060 mm

3240 mm

3390 mm

3540 mm

3690 mm

3840 mm

3990 mm

4140 mm

Cover

Type DLF

Recessed cover for concrete filling.

Type DM

Recessed cover for concrete filling.

Type L

Recessed cover for concrete filling.

Type M

Recessed cover for concrete filling.

Type MHS

Solid top cover.

Standard product features

Material:

  • Ductile Iron components to BS 2789 / ISO 1083.
  • Steel components to BS EN 10083 / ISO 630.

Product Options

Loadings:

– B125, 3 tonne wheel load:

For use in footways, pedestrian areas, car parks, driveways and internal floors.

– C250, 5 tonne wheel load:

For use in roads carrying relatively slow moving traffic, for example, minor residential roads, cul-de-sacs and yards.

– D400, 11.5 tonne wheel load:

For use in power stations, carriageways, hard shoulders and parking areas.

– E600: 20 tonne slow moving wheel load:

For areas imposing high wheel loads, some aircraft pavements, dockyards and other areas where abnormal vehicles may be encountered.

– F900: Wheel loads in excess of 20 tonne:

For areas imposing particularly high wheel loads, aircraft pavements, taxiways, container ports and dockyards.

Cover:

Not all covers are available in all sizes; please refer to Gatic 2000 technical literature for exact details.
