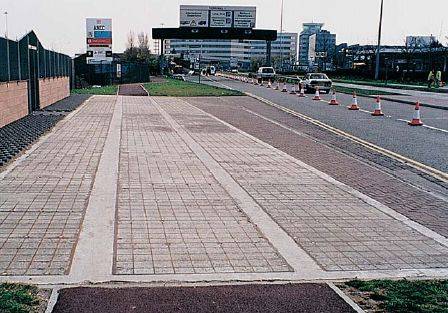

Duct continuous trench covers and frames.
Access cover and frame for use in the following areas, offering different loading groups.
Material | Ductile Iron components to BS 2789 / ISO 1083 Steel components to BS EN 10083 / ISO 630 |
Uniclass 2015 | |
CAWS | P31/370 Access covers/ gratings for R12/471 Access covers and frames R13/640 Cast iron access covers and seating |
Product Reference | Gatic Duct/ Continuous Trench Covers and Frames |
Loading | B1253 tonne wheel load. C2505 tonne wheel load. D40011.5 tonne wheel load. E60020 tonne slow moving wheel load. F900Wheel loads in excess of 20 tonne. |
Pit opening | - |
Length | 21 sizes available. |
Span | 300 mm450 mm600 mm750 mm900 mm1050 mm1200 mm |
Cover | Type DLFRecessed cover for concrete filling. Type DMRecessed cover for concrete filling. Type LRecessed cover for concrete filling. Type MRecessed cover for concrete filling. Type MHSSolid top cover. |
Standard product features | Material:
|
Product Options | Loadings: – B125, 3 tonne wheel load: For use in footways, pedestrian areas, car parks, driveways and internal floors. – C250, 5 tonne wheel load: For use in roads carrying relatively slow moving traffic, for example, minor residential roads, cul-de-sacs and yards. – D400, 11.5 tonne wheel load: For use in power stations, carriageways, hard shoulders and parking areas. – E600: 20 tonne slow moving wheel load: For areas imposing high wheel loads, some aircraft pavements, dockyards and other areas where abnormal vehicles may be encountered. – F900: Wheel loads in excess of 20 tonne: For areas imposing particularly high wheel loads, aircraft pavements, taxiways, container ports and dockyards. Pit opening: – Length: Following sizes available:
Cover: Not all covers are available in all sizes; please refer to Gatic 2000 technical literature for exact details. |
